GentleBOX JC-217UF, outdoor box with integrated 5GHz antenna

The GentleBOX JC-217 features an integrated 5GHz antenna with binomial amplitude distribution for optimal interference suppression.

The GentleBOX JC-217 is the optimal solution for 5GHz clients.

GentleBOX is a complete and ideal outdoor box for AP, RouterBOARD and other electronics.

For GentleBOX, forget about dimensioning and drilling! Everything is ready.

Forget about cable glands and mounting material with GentleBOX! Everything is packed. You only need 1 flat, 2 crosshead screwdrivers (PH1 and PH2) and 10 key nut.

With GentleBOX there is no turning of the cable glands when tightening and loosening the cables-the slots ensure the grommets against rotation.

GentleBOX has grooves and holes for easy installation of RouterBOARD or other electronics including screws and plastic posts.

Technical Parameters:

• Profit 17.2dBi +-0.5
• PSV5,47-5,85GHz 1,5
• PSWhite bandwidth 1.8
• Beam angle 20 °
• Front Loop 30 dB
• Frequency Range 5.1-5.9 GHz
• 17 dB side lobe suppression
• Polarization H or V (depending on lid position)
• UF-L cable connector according to design
• External dimensions 203 x 203 x 65 mm
• Internal dimensions 186 x 186 x 53 mm
• Material UV stabilized ABS, Polyamide
• Mounting on the mast o19-54 mm

The antenna cable is terminated with a UF-L connector

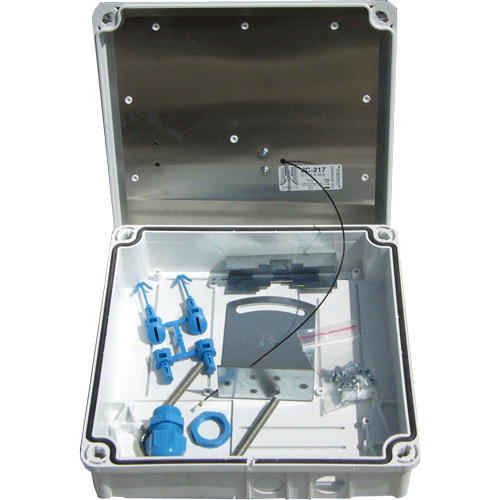

Accessories included in the package:

• Intact bayonet"bolts" for easy closing of GentleBOX. -4 pieces
• Special mast holder 19-54 mm. -1 piece
• Cable gland for 4-10 mm cables, extra blue quality. -1 piece
• Screws for electronics mounting + plastic posts. -4 + 4 pieces
