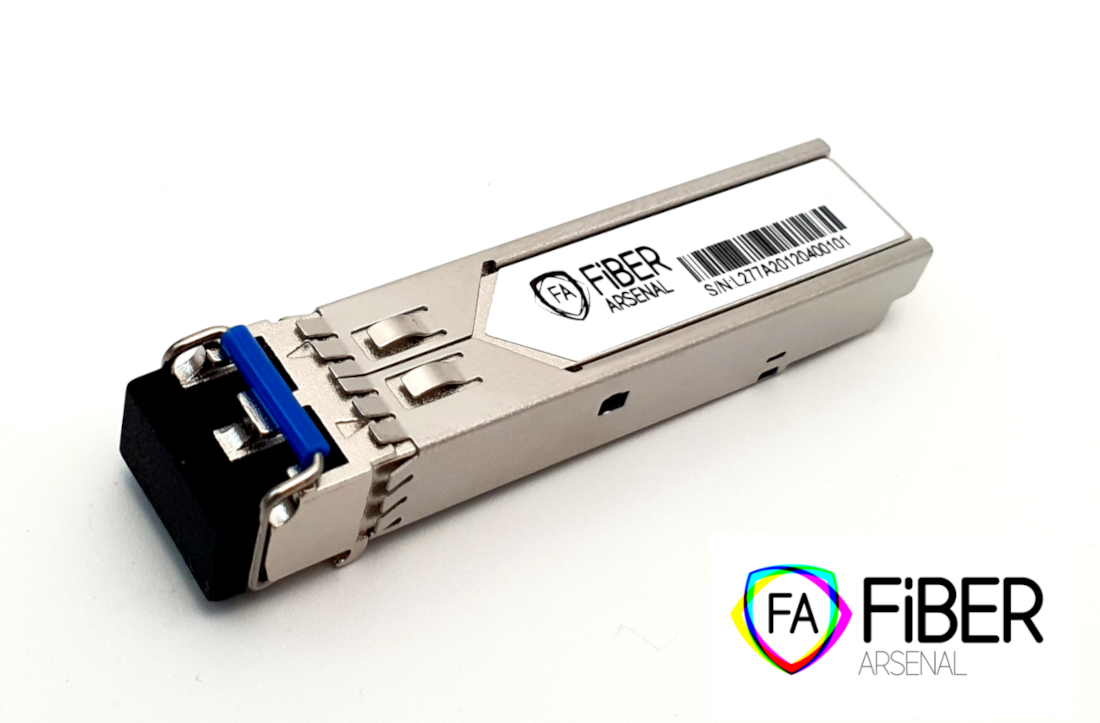

Fiber Arsenal SFP 1.25Gbps, LC dup., 20km, SM, 1310nm, DDM, 0-70°C, Cisco

It is a compact optical transceiver from the Fiber Arsenal EXTERNALS used in telecommunications and data networks. It is popular, widespread, manufacturers of active optical components massively supported module
Optical transceivers (optical modules) are normalized devices/plug-in media converters for use in third manufacturers' products. As the name suggests transceivers always associate the transmitter/transmitter and receiver/reciever. It also implies that we need to have 2 fibers available for two-way operation.

parameters:

name	value
Format:	SFP
Transfer type:	2 threads
Connector type:	LC DUPLEX
for fiber/cable:	SM
Better speed:	1.25 Gbps
Transmission protocol:	1GBPS Ethernet
Transmission protocol:	FIBRE CHANNEL 1x
range:	20km
Compatibility:	CISCO
Compatibility:	HP
Wavele length TX:	1310nm
Wave length RX:	1310nm
dmi diagnostics:	Yes
operating temperatures (° C)	0 to 70
type of transmitter (TX):	MQW FP
spectral width (nm):	3
Detector type (RX):	Ingaas Pin-Tia
Transmitter Power (dbm):	-7 to 0
Reciever Sensitivity (DBM)	-24
Power Budget (DB):	17
Reciever overload (dbm):	-3
