Mimosa C6x

Name: Mimosa C6x
Brand: MIMOSA NETWORKS
SKU: 74706
Price: 193.51 EUR
Availability: InStock

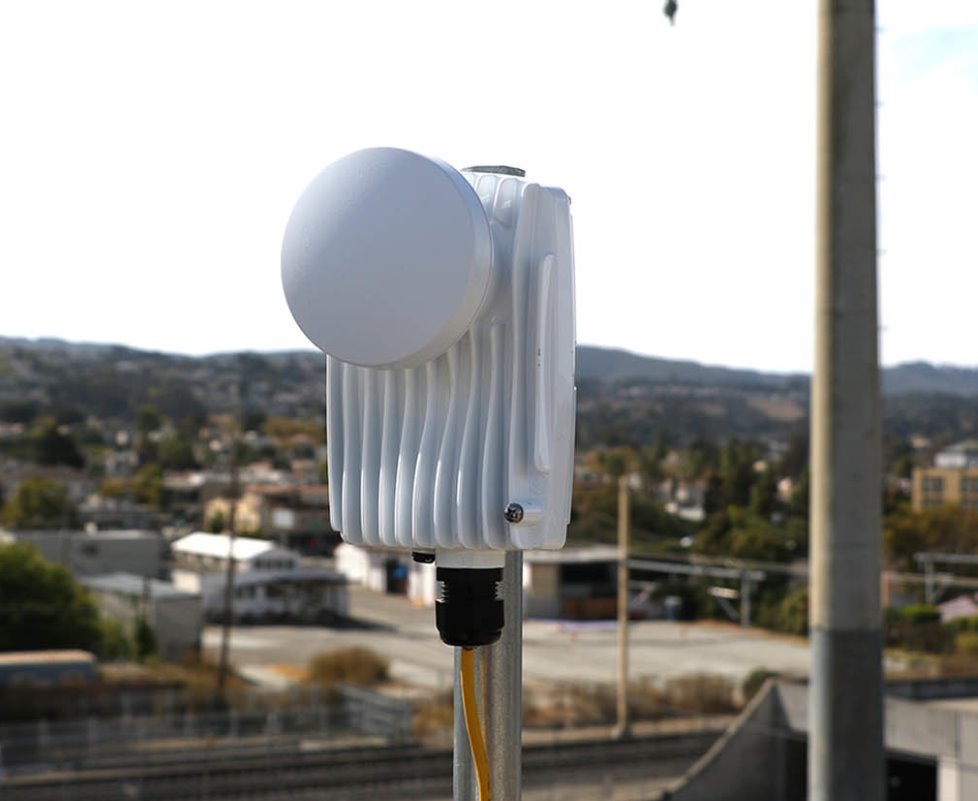

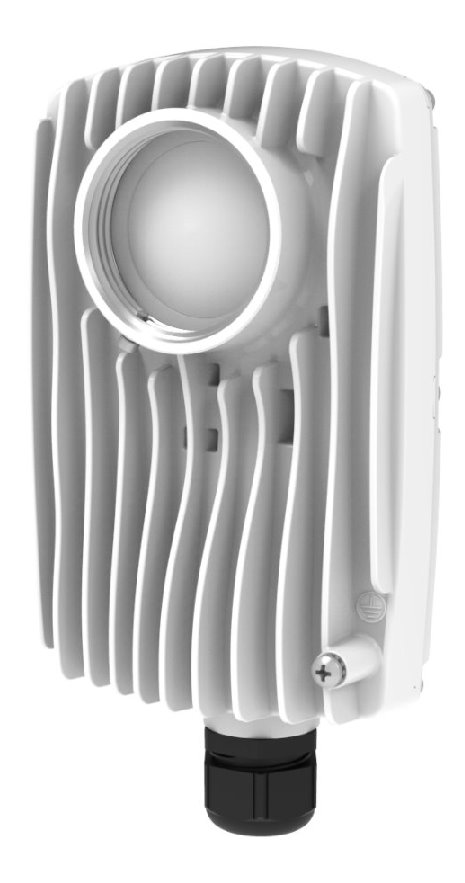

Mimosa C6x is an outdoor client and Point-to-Point unit in a robust aluminum chassis with high resistance to environmental interference, IP67 protection with an integrated 2x2 MIMO antenna with a gain of 8 dBi.More information

Producer

MIMOSA NETWORKS

Part No.

100-00111(C6x)

Code

00075037

Warranty

12 Month

Availability

Availability in stores

Order

Regular selling price exc. VAT

160.01 EUR

The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.

Your price exc. VAT

159.93 EUR exc. VAT

VAT

21%

Your price inc. VAT

193.51 EUR inc. VAT

Ask for a better price

Description

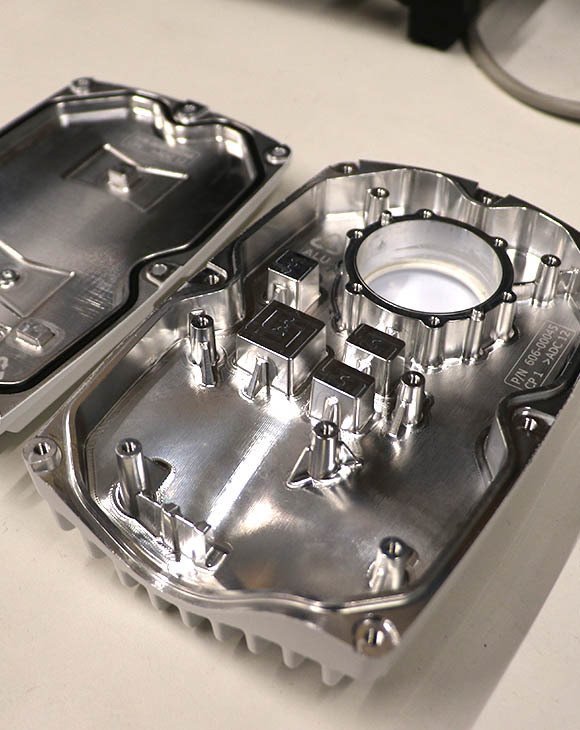

Mimosa C6X is an outdoor client and point-to-point (with FW 3.3.1 and newer) unit in a robust aluminum chassis with high resistance to surrounding interference, IP67 Mounting the directional antenna from a wide range (12 to 25 dBI), supporting Wi-Fi 6E ofdma (built on 802.11AX) including older Wi-Fi 5/6 standards. The unit has the radio part 2x2 outside with a 2402 Mb/s modulation rate at 160 MHz and 1024 Qam , and is able to work in the 5150-6425 MHz band. To connect to the Ma C6X network, one gigabit Ethernet port with passive PoE 24 V .

Among other things, the unit offers a high output power of 27 dBM . The maximum consumption is 20 W . The unit offers wireless WiFi Interop .
Support Wi-Fi 6e ofdma -reduces the C6X impact of interference inside the band across the used channel with significantly smaller parts of the spectrum used (2 MHz) instead of the older OFDM solutions where any interference affected the entire canal width.
Firmware version 3.3.1 Newly allows you to use units in PTP mode and based on testing can reach speeds of up to 1.9 GB /s!*
.
Package content:

device
2x metal tightening tape

Parameters

Ethernet parameters
Antenna gain (dBi)	8
Connectors	Twist-on-port (Mimosa)
Consumption	20
Encryption	802.1X, AES
IP protection	IP67
IPv6 support	Yes
Počet vestavěných antén	4
PoE Type	Input
Power Supply	PoE
Properties	OFDMA, MU-MIMO
Gigabit LAN	yes
LAN port speed	1 Gbps
Physical parameters
Depth (mm)	67
Design	Outdoor
Height (mm)	178
Operating Temperature	-40° až +55 °C
Weight (kg)	0.7
Width (mm)	113
Wireless parameters
Antenna type	Removable
Frequency	5 GHz
MIMO (5 GHz)	2x2
Operating mode	Client, Bridge
Vysílací výkon 5 GHz [dBm]	27
WiFi Standards	Mimosa SRS, WiFi Interop
WiFi transfer rate - 5 GHz [Mbps]:	2402

All parameters Less parameters
