WELL RTX8630 IP DECT

Well RTX cell system meets companies working in large areas where employees need to be on line and concentrate on their work processes (large warehouses, buildings, production premises, hospitals, ……).

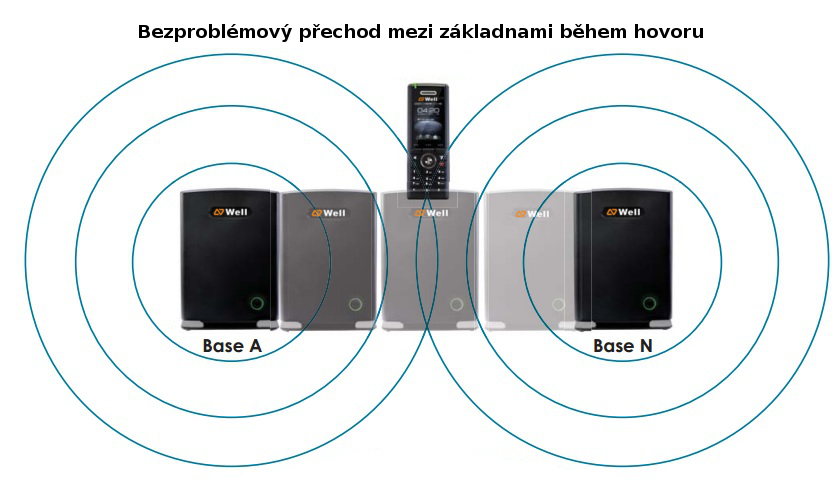

This cell system allows the user to move around a large workplace regardless of the location of the base station, because the hand is automatically switched to a base station with a better signal and the user does not notice the transition at all.

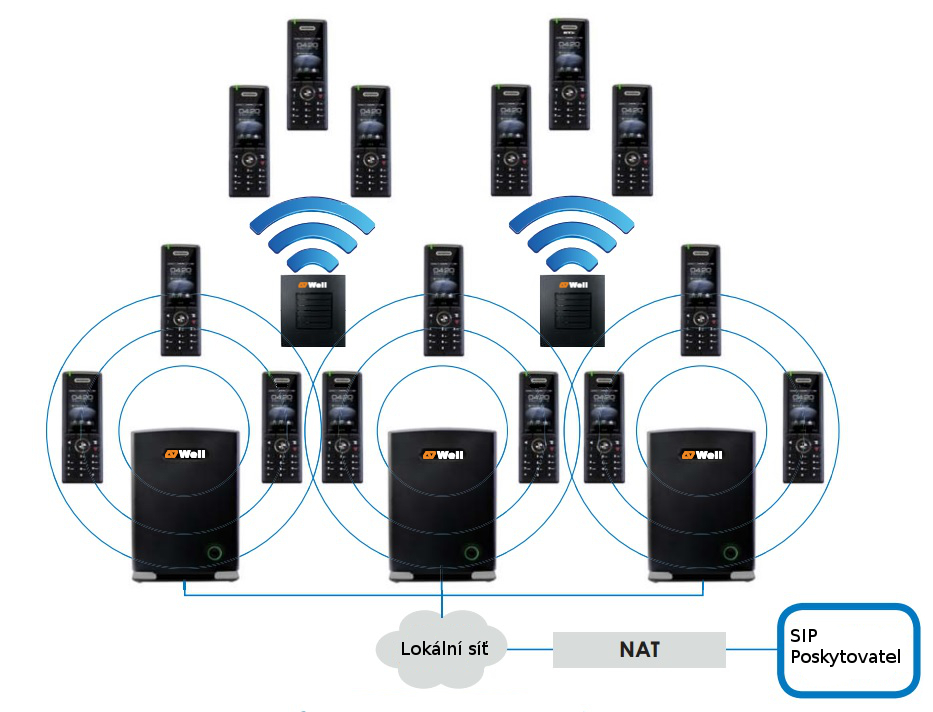

Base stations can be connected up to 40 within a single DECT network with the possibility of roaming (dialing call reception from any base) and handover (turning within the call) between these stations. <{R> At the same time, up to 200 hands can be registered into the system. Well RTX cell system suits DECT GAP standards, cat-iq.
Deployment and installation of the Well RTX cell system is very simple and can be easily implemented on the existing PBX.

The base can only be powered using the POE source or PoE switch, which meets the POE IEEE802.3AF (Class 2). POE Source or Switch is not included!

High quality of the transmitted call thanks to"Wideband Audio (HDSP)"-12 radio slots with up to 10 contemporary voice channels. (with CODEKY G.726, G.711)

Central phone book (via LDAP or XML, Broadsoft)

Fw update and"air"

Power supply stations via POE Standard IEEE 802.3AF (class 2)-POE adapter is not part of the package (base station can be powered via POE switch)

DECT Signal range is 50 m in indoor and 300 m in outdoor spaces

The range of the DECT signal can be expanded via repeaters (up to 6 to base), the repetition range is another 50 m in indoor and 300 m in outdoor spaces

Auto Provisioning (Automatic System/Hand Settings Remote via base stations)

IPv6 support

Support of codecs:
G.711, G.722, G.726 (with the additional module G.729)

Safety:
Https, sips, password for login

dtmf:
RFC2833, RFC2976, RFC3261, RFC3263, RFC3264, RFC3326, RFC3489, RFC3515, RFC3581, RFC3842+RFC3265 Message, RFC3892, RFC3960


Support of expansion modules:
Yes, DSP module for codec G.729

Poe (IEEE 802.3AF):
Power Over Ethernet (POE): 36-60V-IEEE802.3AF (Class 2)-PoE adapter is not included!

parameters:

name	value
data interface:	Ethernet, DECT CAT-IQ2.0
Ethernet:	1x 10/100 MB/S
network services:	FIXED IP, DHCP
NAT:	No
QOS:	VLAN
voip standards:	SIP
peer-to-peer mode:	Yes
Number of SIP accounts:	10
CNG:	Yes
call features:	redirect, hold, switch, 3-way conference
Caller identification]:	Yes
Calling Call:	Yes
SMS:	Yes
Open API:	No
LED:	Yes
IPv6 support:	Yes
Power adapter:	No
Management:	Web, TFTP, Auto Config.
Diagnostics:	SYSLOG, SIPLOG, TRACE
Dimensions:	227 x 279 x 39 mm
