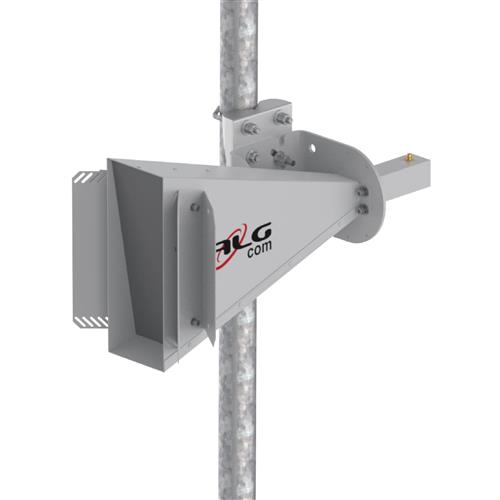

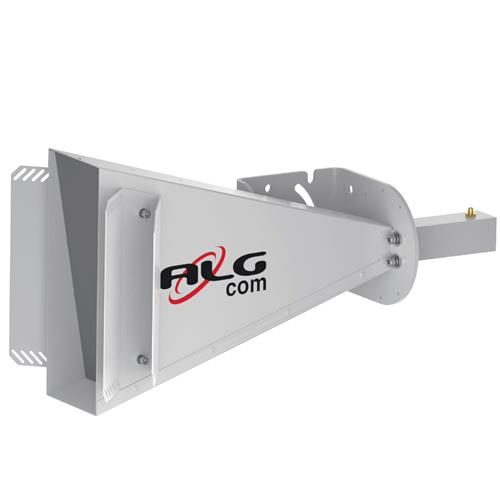

Asymmetric horn antenna ALGcom 5 GHz, 30/15°, 19 dBi, precision grip

Radiation angle: 30 ° (H)/15 ° (H); Profit: 19.3 dBI; Connectors: RSMA female; Frequency: 4,900-6,425 GHz; Polarization: dual (v/h); Front and Rear ratio:> 37 dBMore information

Producer

ALGCOM

Part No.

PD-5800-19-30-DP-UWB

Code

00073140

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

193.56 EUR exc. VAT

VAT

21%

Your price inc. VAT

234.21 EUR inc. VAT

Ask for a better price

Description

The dual-polarization horn antenna for the 4.900 - 6.425 GHz band from the world-known manufacturer ALGCOM is designed to completely minimize side lobes, thereby better covering the required area with minimal sector interference. It achieves an excellent VSWR ratio of 1.8:1 and isolation more than 30 dB between ports. High gain is stable throughout the frequency band.
Made of high quality material with a precise mount for easy pointing.

Beamwidth angle : 30° (H) / 15° (V)
Gain : 19,3 dBi
Connectors: RSMA female
Frequency : 4.900 to 6.425 GHz
Front to back ratio : > 37 dB

Parameters
