Asymmetric horn antenna ALGcom 5 GHz, 60/15°, 15 dBi, precision grip

Radiation angle: 60 ° (h)/15 ° (H); Profit: 15dbi; Connectors: RSMA female; Frequency: 4,900-6,425 GHz; Polarization: dual (v/h); Front and Rear ratio:> 30 dBMore information

Producer

ALGCOM

Part No.

PD-5800-60-15-DP-STS

Code

00073138

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

110.05 EUR exc. VAT

VAT

21%

Your price inc. VAT

133.16 EUR inc. VAT

Ask for a better price

Description

The dual-polarization horn antenna for the 5.250 - 5.875 GHz band from the world-known manufacturer ALGCOM is designed to completely minimize side lobes, thereby better covering the required area with minimal sector interference. It achieves an excellent VSWR ratio of 1.8:1 and isolation more than 30 dB between ports. High gain is stable throughout the frequency band.

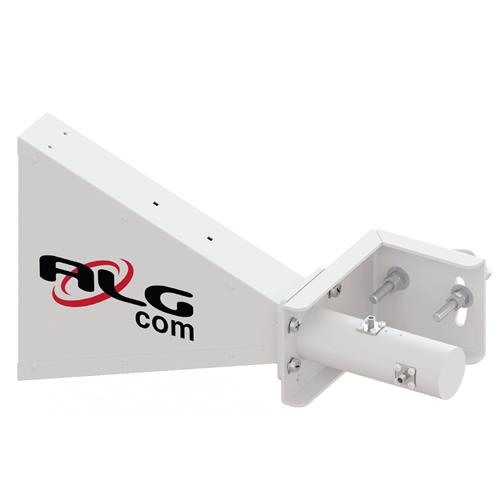

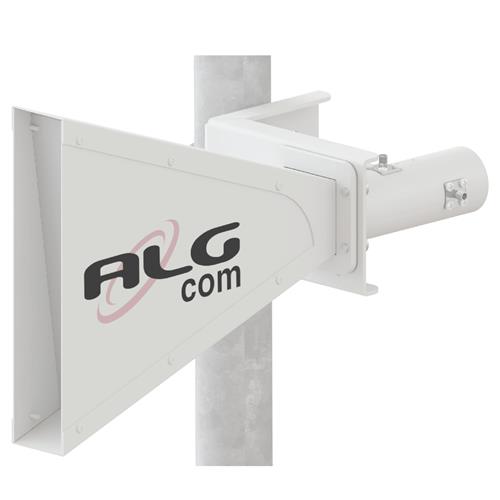

Made of high quality material with a precise mount for easy pointing.

Beamwidth angle : 90° (H) / 15° (V)
Gain : 15 dBi
Connectors: RSMA female
Frequency : 5,250 až 5,875 GHz
Front to back ratio : > 30 dB

Parameters
