Backed source IMCO POWER 150W LS110.H

Name: Backed source IMCO POWER 150W LS110.H
Brand: IMCO POWER
SKU: 31270
Price: 6104.40 EUR
Availability: OutOfStock

Backup source type LS110.H, with two output voltages, used for backup power 24V and 48V devices. Inverter module has built\r; the most advanced energy conversion technology for maximum efficiency. Total power supply is 150W, 48V power inverter module i...More information

Producer

IMCO POWER

Code

00030077

Warranty

3 Year

Backed source IMCO POWER 150W LS110.H - variants

	Count	Name	Code	Description
to 1 month	1pcs.	SOURCE LS110.H 1210 Provedení na DIN 00031997	00031997	Backup power 230V ~ 50Hz/+ 13.8V (10A), DIN rail, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.HS 1210 Provedení na DIN + SNMP 00031998	00031998	Backup power 230V ~ 50Hz/+ 13.8V (10A), DIN rail, temp. comp. charging the battery, rapid, resonant technology, SNMP
to 1 month	1pcs.	IMCO POWER LS110.HS 12241005R, zálohovaný zdroj 12V+24V (R), SNMP Provedení na DIN + SNMP, reverzní 00070444	00070444	Záložní zdroj typu LS110.HS, s výkonem 150 W, slouží pro zálohované napájení 12 V a 24 V zařízení. Disponuje měničem postaveným nejpokročilejší technologií konverze energie s ohledem na maximální účinnost.
to 1 month	1pcs.	IMCO POWER LS110.HS 124810025R, zálohovaný zdroj 12V+48V (R), SNMP Provedení na DIN + SNMP, reverzní 00070443	00070443	Záložní zdroj typu LS110.HS, s výkonem 280 W, slouží pro zálohované napájení 24 V a 48 V zařízení. Disponuje měničem postaveným nejpokročilejší technologií konverze energie s ohledem na maximální účinnost.
to 1 month	1pcs.	SOURCE LS110.H 2405 Provedení na DIN 00030531	00030531	Backup power 230V ~ 50Hz/+ 27.6V (5A) without a DC/DC converter 48V (2A), DIN rail, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.HS 2405 Provedení na DIN + SNMP 00029925	00029925	Backup power 230V ~ 50Hz/+ 27.6V (5A) without a DC/DC converter 48V (2A), DIN rail, SNMP, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.H 48025 Provedení na DIN 00031999	00031999	Backup power 230V ~ 50Hz/+ 55,2V (2.5A), DIN rail, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.HS 48025 Provedení na DIN + SNMP 00032000	00032000	The backup source of the LS110.HS, with 150 W power, is used for backed power supply 48 in the device. It has a changer built with the most advanced energy conversion technology with regard to maximum efficiency.
to 1 month	1pcs.	SOURCE LS110.H 24480502 Provedení na DIN 00029923	00029923	Backup power 230V ~ 50Hz/+ 27.6V (5A), a DC/DC converter-48V (2A), DIN rail, without SNMP, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.HS 24480502 Provedení na DIN + SNMP 00029926	00029926	Backup power 230V ~ 50Hz/+ 27.6V (5A), a DC/DC converter-48V (2A), DIN rail, SNMP, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.H 24480502R Provedení na DIN lištu, reverzní 00029924	00029924	Backup power 230V ~ 50Hz/+ 27.6V (5A), a DC/DC converter + 48V (2A), DIN rail, without SNMP, temp. comp. battery charging, fast charging, the resonance technique
to 1 month	1pcs.	SOURCE LS110.HS 24480502R Provedení na DIN + SNMP, reverzní 00029927	00029927	Backup power 230V ~ 50Hz/+ 27.6V (5A), a DC/DC converter + 48V (2A), DIN rail, SNMP, temp. comp. battery charging, fast charging, the resonance technique

Ask for a better price

Description

Backup source type LS110.H, with two output voltages, used for backup power 24V and 48V devices. Inverter module has built the most advanced energy conversion technology for maximum efficiency. Total power supply is 150W, 48V power inverter module is 100W. In the event of a power failure connected to a 24V battery provides power to the load of uninterrupted. After restoring power source ensuresrychlodobití battery to its full capacity. The charging voltage is temperature compensated.

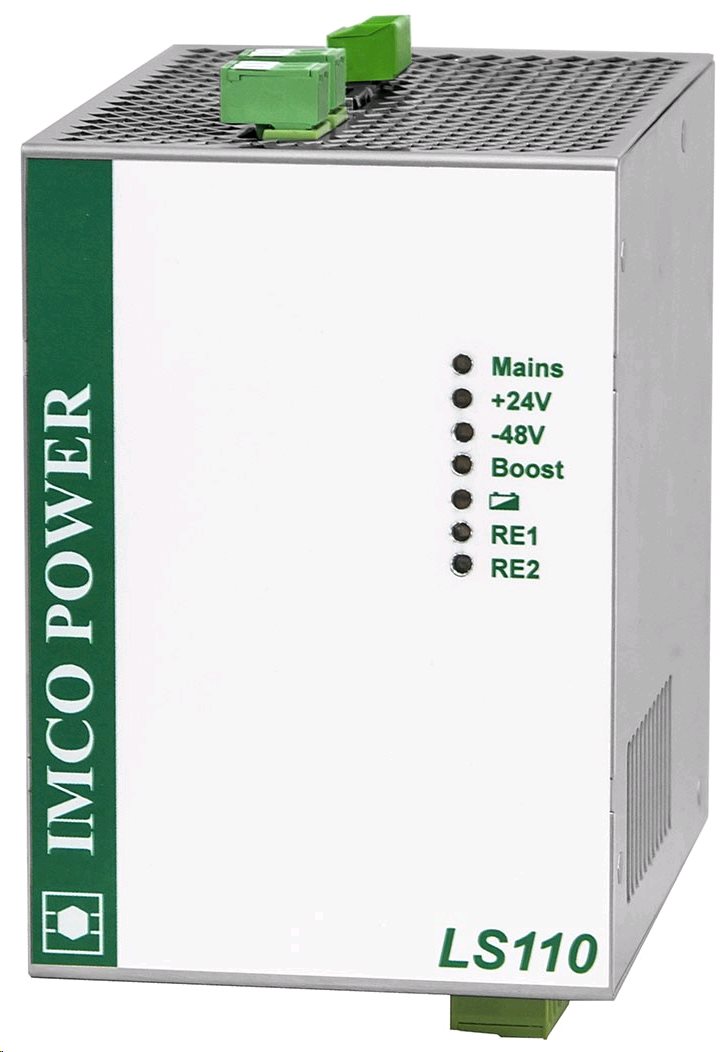

LEDs on the front panel indicate the state of the network output voltage fast charging and battery status. Remote alarm signaling failure mains and battery capacity decrease for the first SNMP adapter with its own Website allows you to control two independent relays which can be programmed asIP addresses watchdog, manual ON/OFF, or restart the device. Similarly, it is possible to monitor two external binary signals.
Sources LS110.HS is produced in the following copy: Home -LS110.H (S) XXxxYYyy (R)-H = copies on DIN rail, S = with SNMP WEB xxxx determines the size of the output voltage 1 and 2, determines the size yyyy exit. Current 1 and 2, R = reverse connection of the output 48V-+ 48V GND
The source is designed for DIN rail mounting. Input Connections 3-wire prez removable connector wire diameter to 2.5 mm2. Connect outputs source relays, battery and signal source is via removable konektrory wire diameter to 2.5 mm2.
Features: Home Input voltage 230V ~ 50Hz Home Backup power 24V (5A), 48V (2A)/150W power output, PFC Home -30 ° C-+ 60 ° C, rapid, temperature-controlled charging HomeLED sign. power failure and low battery 1 Home With SNMP WEB, 2x watchdog, manual restart Home Execution: DIN Home Standards: Electrical safety-STN EN 60950 EMC-STN EN 61000-3-2, STN EN 55022

Home

Parameters

Ethernet parameters
Battery charging current	4 A, 2 A, 1 A
DC Output Voltage (V)	-48, 13.8, 27.6, 55.2
DIN rail mounting	Yes
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD, SNMP
Output Current (A)	2, 5
Power consumption (W)	100, 150
Rack mounting	Ne
Remote signalling	Výpadek sítě, Kapacita AKU <1/2
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	134
Design	Rackmount
Efficiency (%)	91, 93
Height (mm)	128
Odpojovač baterie (V)	10.5, 21, 42
Operating Temperature	-30° až +60°C
Weight (kg)	0.7, 0.8
Width (mm)	100
Powering
PoE	No
Typ zdroje	Zálohovaný
