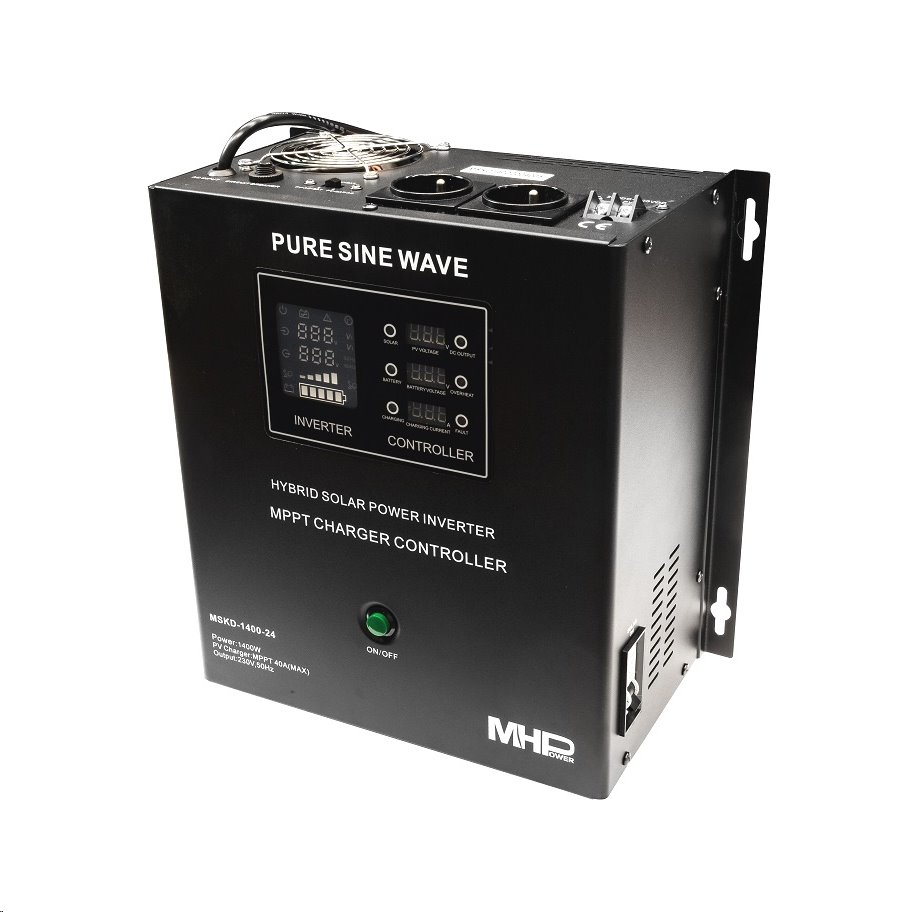

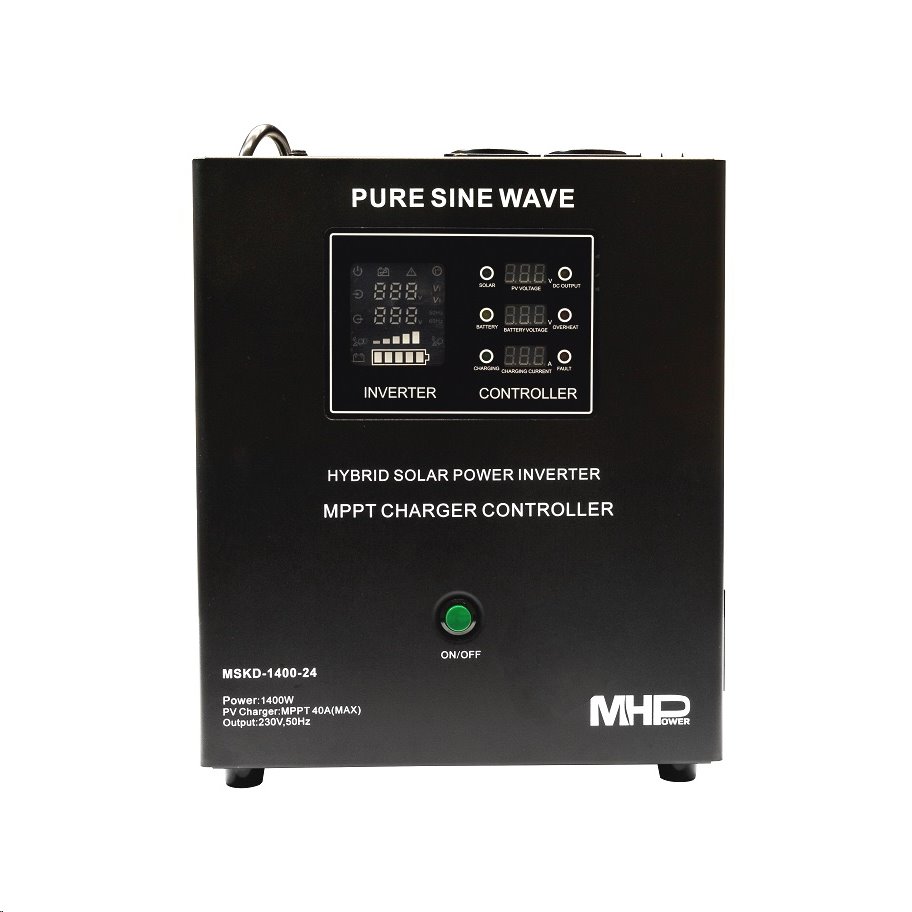

Backup power supply with solar MPPT controller MHPower MSKD-1400-24

This sinus power supply is used to power electrical devices requiring an AC voltage of 230V. When supplying electricity, connected appliances are powered directly from the network. Replacement source, external battery is recharged. When the electricity supply is interrupted, the battery is switched. After restoration, the battery is automatically recharged and the appliance is powered from the network. Everything is clearly indicated on a large display. At the same time, it is possible to recharge the battery from solar panels using the built-in MPPT solar controller.

key features:

Clean sinus output signal, thanks to which the power supply can also be used by the device such as circulatory pumps, servers, refrigerators, etc.

Construction based on an effective toroidal transformer

solar charger MPPT (controller) with very high efficiency

Intelligent switching between power priorities for better performance and lower energy losses

full of protection and alarm range: overload, short circuit, overvoltage, undervoltage and temperature protection

A well-arranged display providing the most important information for converter and regulator

Supported batteries: Gel, Agm, Classic flooded
Undoked batteries: Li-on, Li-Pol, Lifepo, etc.


Parameters:

Title:	value:
Rated power:	1400 W
Battery voltage:	24 V
Max. Charging current (photovoltaics):	40 and
Max. conversion efficiency (photovoltaics):	98#i6per#
Input voltage range (photovoltaics):	30-90 V
Input voltage range (AC):	140-275 V
Output voltage range (AC):	195-240 V
Except voltage of the inverter:	220 V +-3 #i6per #
Excepting frequency of the inverter:	50/60 Hz
switching time to backup:	Less than 4 ms
Cooling System:	Yes, fans
Operating temperature:	0 ~ 40 ° C
Dimensions:	310 x 312 x 167 mm
Weight:	12 kg
