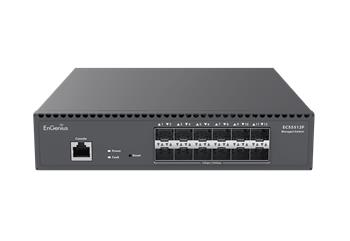

EnGenius ECS5512F Cloud Managed Switch, 12x SFP+ port

The Enterprise Wi-Fi range and ENGENIUS Cloud Series' PoE switches provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed access points Engenius meet the requirements for high transfer speed and permeability for hundreds of clients.

Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in unlimited networks at different locations-regardless of their size, infrastructure or physical location.



Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with the cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to anticipate problems before they occur and provide accurate recommendations for active performance improvement.
ECS5512F
Engenius ECS5512F is 12-port optical switch with 12x SFP+ shaft and central cloud administration . It is equipped with local or central configuration options, monitoring and network management and easy-to-use web interface .

• Central management using Engenius Cloud or Local Administration
• 12x SFP+ Ethernet Port
• Full-Featured Layer 2 Switching
• jumbo frame 9000b
• Support Qos, RSTP/MSTP, LLDP, IGMP Snooping
• Full support for VLAN, support Voice VLAN
• automatic creation of network topology with other Engenius products
• Lifetime Warranty
• Rackmount version (1/2 standard 19"1U profile, two switches can be placed side by side)



  Engenius Cloud
  Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.

• easy management of multiple organizations and networks in one account, sort and filter individual networks
• Mass management AP and switches in one place
• Quick solution to graphical and visualization tools
• Clear view of each client's history on Timeline
• Information in real time Information about the status and performance of each individual AP and network as a whole
• Automatic network topology, built-in AP coverage view on maps
• Operation Analysis on 7.
• Captive portal with advanced features-Social network login, automated voucher printing option for temporary access, Radius support.
• Mobile application Engenius Cloud-full check over Switchi, access points and devices managed cloud, wherever you are.
• Possibility to remotely and centrally manage FW all devices, possibility to coordinate updates with planned maintenance
• One-CLICK registration of new AP via the web or mobile application



  Standards
• 802.3 10base-T Ethernet
• 802.3U 100base-TX Ethernet
• 802.3AB 1000Base-T Ethernet
• 802.3x Full-Duplex Flow Control

  ports
• 12 x SFP+ port
• 1x console port

• switching capacity
• 240 Gbps


  l3 function


• Multiple IP Interface (20 IPv6 addresses)
• Arp Table (192 records)
• IPv4 static Route (63 records)
• IPv6 Static Route (21 records)


  Discover the power of Engenius Cloud




  other parameters

  name	value
  MAC Address Table:	32K
  jumbo frame:	9000 B
  Multicast Group:	max 256 groups
  BLD SNOOPING:	BLD SNOOPING: V1
  QOS:	8 front Strict WRR Strict + Wrr
  QoS modes:	cos /802.1p DSCP Cos/802.1P-DSCP
  Access Control List (ACL):	MAC BASED ACL IPv4 /IPv6 Based ACL ACL Binding



  Additional features
  802.1D SPANNING Tree, Loopback Detection, Multicast Filitering, IGMP Multicast Forwarding, IGMP SNOOPING, BLD Multicast Forwarding, 802.1Q VLAN Tagging, 802.3x Flow Control, 802.3AD linkgation, IPv4 DHCP relay, IPV4 DHCP SNOOPING, IPv4 DHCP SNOOPING SOURCE MAC Address Check-up, ARP Inspection, ARP Packet Validation 802. 3AZ Energy Efficient Ethernet (EEE), Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/Backup, Simple Network Time Protocol (SNTP), Syslog, 802.1D SPANNING Tree

  Package content
• 1x ECS5512F
• 1x power cord, EU ending
• 1x fast user manual
• 1x console cable (RJ45)
• 1x Rack Mount Kit
