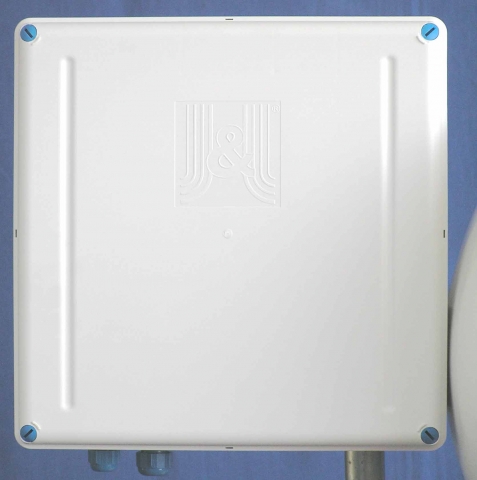

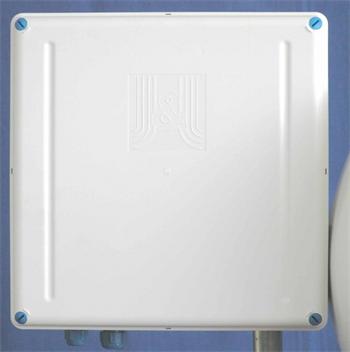

GentleBOX JR-300, for outdoor installations, also for JRC-Duplex.

Gentlebox JR-300 for parabolic antennas is a complete outdoor box for AP, routerboards and other electronics in a larger version.

Advantages JR-300:

• with a gentlebox forget to measuring and drilling! Everything is ready, including assembly holes.
• with gentlebox forget to find cable grommets and mounting material! Everything is packed. You only need 1 flat and 2 cross screwdrivers (PH1 and PH2).
• with a gentlebox no more spinning of cable grommets when tightening and enabling cables-embossments ensure the passage against rotation.

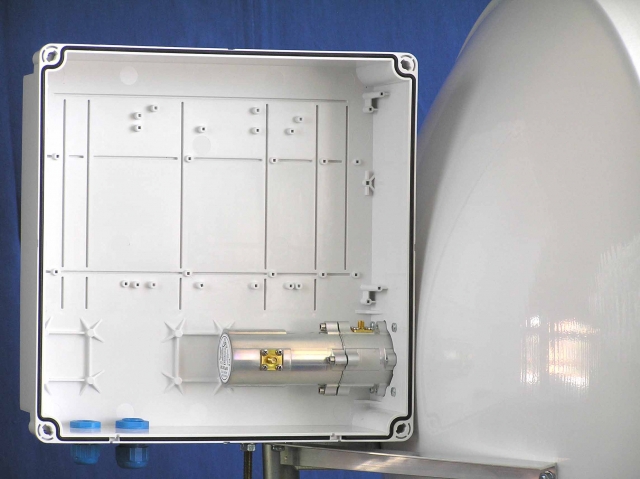

• In Gentlebox are prepared grooves and holes for easy mounting of routerboard, or other electronics including screws and plastic columns.

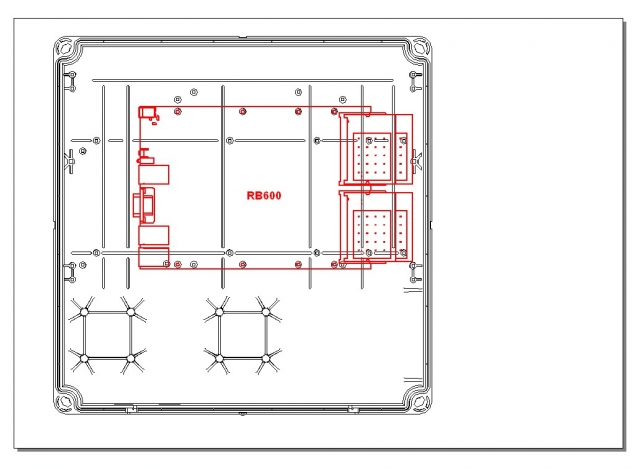

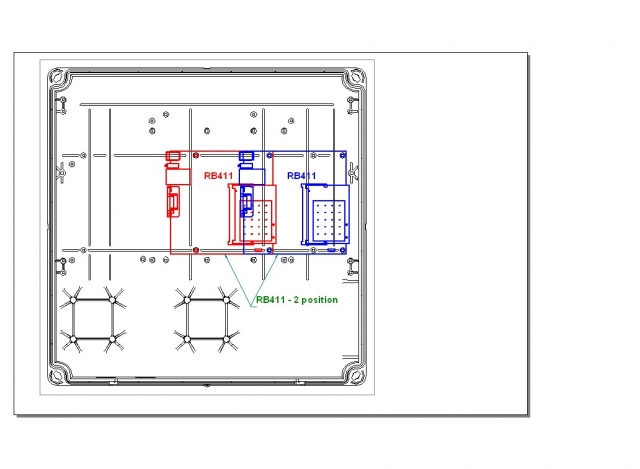

• Simplified assembly RB411, RB433, RB600, Alix2, Alix3, Compex, Wispstation.
• with a gentlebox no longer have to insulate water connectors, everything is dry!

Features:

• Material UV stabilized plastic ABS, polyamide

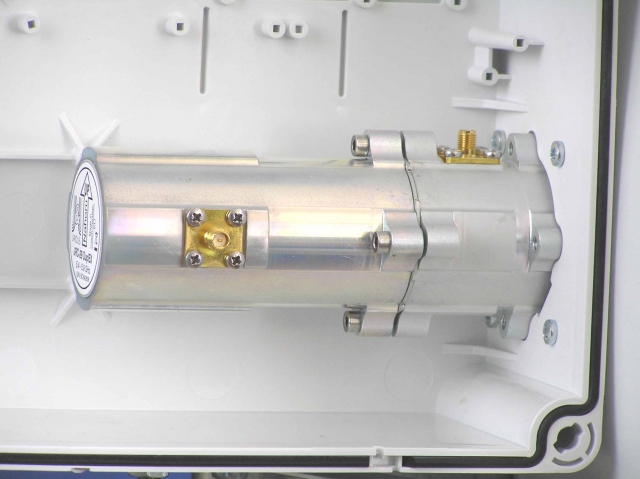

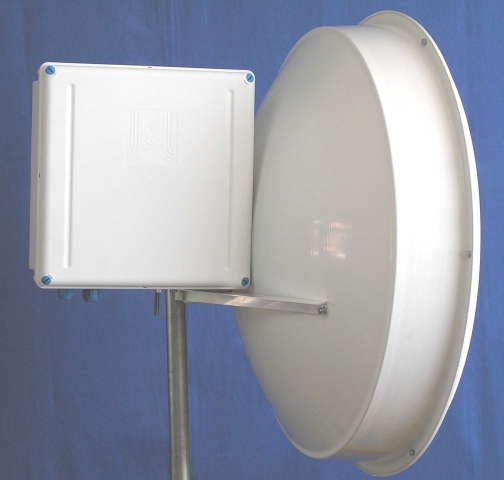

• Installation on all parabolic antennas of the JRC-XX series including duplex

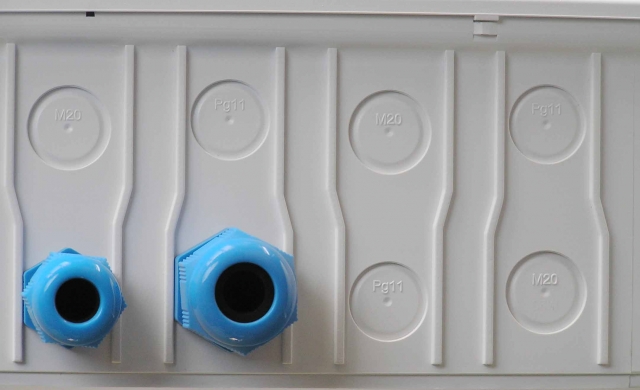

• pre-pressed holes for a total of 8 cable bushings-4x PG11, 4x M20

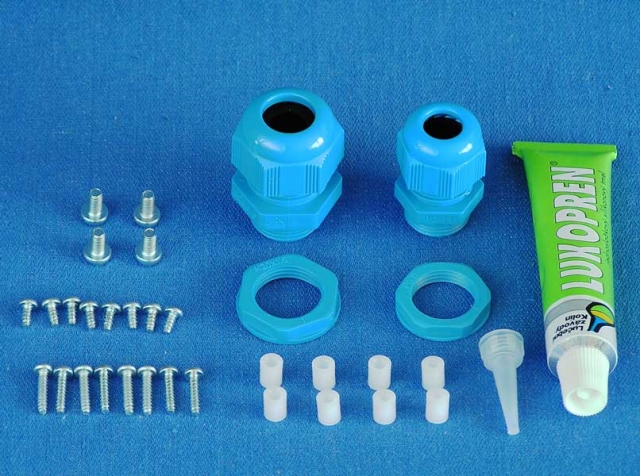

Accessories:

• Uncountable bayonet"screws" for easy closure of gentlebox. -4 pcs

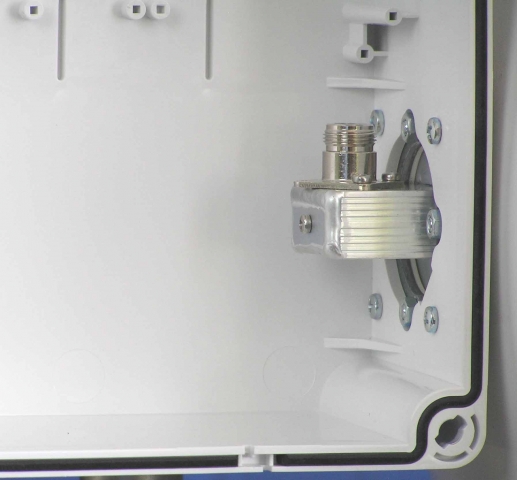

• silicone sealant for sealing the passage of the antenna wave tube. -1 pcs
• Cable grommet PG11PRO cables by 4-10 mm, extra blue quality. -1 pcs
• cable grommet M20 for cables of 4-10 mm, with the possibility of passing the connector RJ45
• bolts for attaching electronics + plastic posts. -8 + 8 pcs

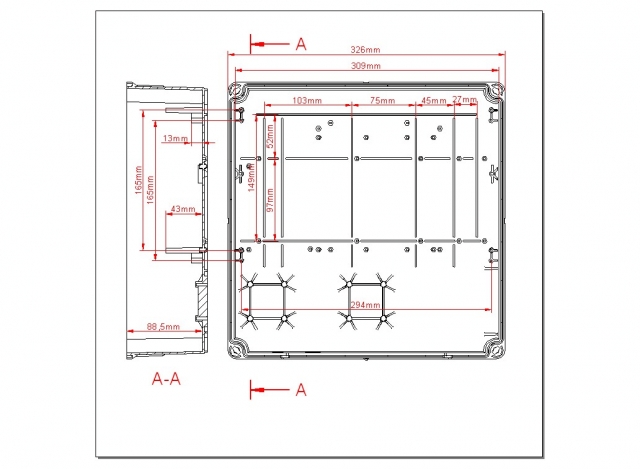

Dimensions: 326 x 326 x 88
