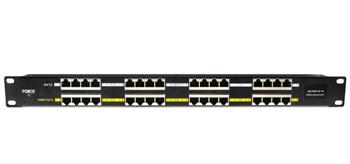

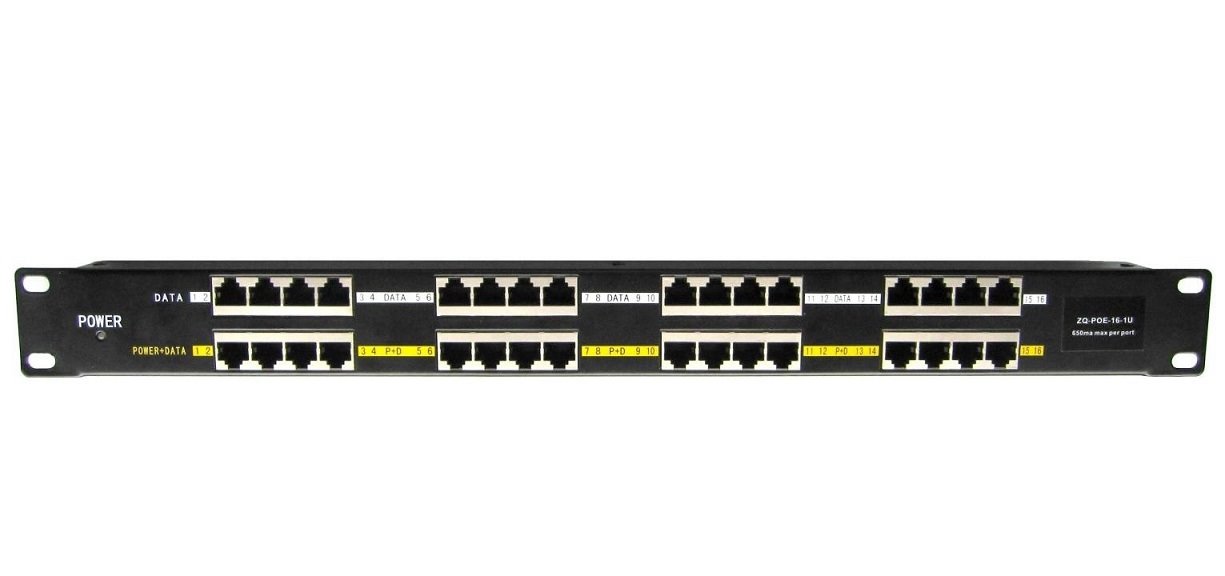

Gigabit shielded 16-port passive PoE panel

Panel up to 19"seagulls integrating 16 gigabit shielded active Poe injectors with power range 24-57 V .
Universal solution for remote power of more active elements with integrated extractor after UTP cabling.

Add this through panel to the switchboard to get a power center that you can easily connect between the existing switch and patchpanel, which already leads to a powered device (IP camera, IP telephone, wireless elements, etc.).

Over-Current Protection (current protection) to 650mA (+/-15#i6per#) on each port, grounding brought to time

Input for power via two 2.1mm 60V jacks, both inputs are always powered by all 16 ports in mode according to selected A /B input:

Power supply via mode a:
Compatible with active elements with integrated POE injector using 1/2-and 3/6+, 48 V (such as Cisco). Data after all 4 pairs.

Power supply via mode B:
Compatible with active elements with integrated POE injector using 4/5+ and 7/8-, 48 V (such as microtics, ubiquiti). Data after all 4 pairs.

The power supply is not included in the delivery, selection and power parameters of the source must be optimized according to the relevant consumption of the powered elements and their configuration.

parameters: mode

name	value
input:	24-57V/120W (2x 2.1 60V Power Jack)
Data:	1/2 &3/6 &4/5 &7/8
Power:	According to the selected A/B
POE standards:	Passive poe
Ethernet:	TIA/EIA 568 CAT. 5
Data Rate:	10/100/1000MBPS
Connector type:	rj-45
operating temperature range:	0 ° C ~ +40 ° C
moisture (operation.):	10# i6per# ~ 80# i6per# rh
Dimensions[mm]:	483 × 44 × 52
Weight[kg]:	1.4
