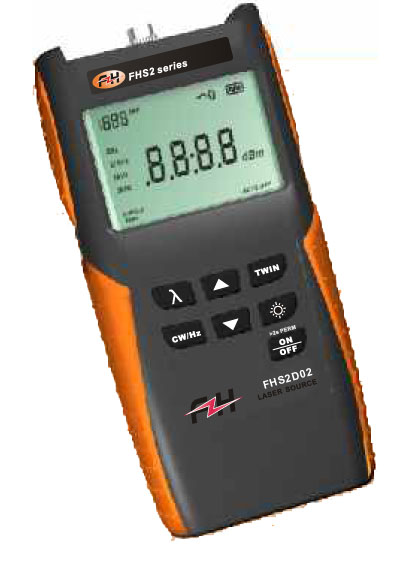

Grandway FHS2D02 Mini Optical Laser Source

Name: Grandway FHS2D02 Mini Optical Laser Source
Brand: Grandway
SKU: 2800
Price: 322.20 EUR
Availability: OutOfStock

Source of invisible light with 2 wavelengthsMore information

Producer

Grandway

Part No.

FHS2D02

Code

00013802

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

266.28 EUR exc. VAT

VAT

21%

Your price inc. VAT

322.20 EUR inc. VAT

Ask for a better price

Description

The unit is equipped with automatic detection of a wavelength based on the use of an encypt protocol, which allows units from the FHP2 Power Meter to automatic recognition and use of suitable calibration parameters. This feature reduces the needs of communication between two techniques, simplifies measurements and reduces the risk of potential errors.

FHS light sources offer excellent reliability and mobility for accurate optical fiber testing. One output optical port offers a stable, reliable and powerful laser source using two wavelengths. This compact unit can work in both CW (Continuous) and"Modulated". The output output can be regulated. The battery status indicator is also integrated for user comfort.

properties:

Easy to use

practical packaging

Display backlight for work in dark environments

± 3DB user adjustable

3-year warranty

Specifications:

Laser type:

ld

Output power:

Operating temperature:

-10 ° C-50 ° C

Storage temperature:

-20 ° C-70 ° C

dimensions (mm):

160 x 76 x 45

Weight:

270g

output wavelength (nm):

1310/1550

Central wavelength:

1310 ± 20nm/1550 ± 20nm

spectral width:

3nm

output frequency (Hz):

270/1k/2k

Output Stability Short-term:

Long-term output stability:

automatic shutdown:

yes

backlight:

yes

Output stability

Short therm (15 min.): <± 0.05db @1310,1550nm; ±0.1db@850 &1300; Long Term (8 Hours): <± 0.1db @1310,1550nm; ±0.2db@850 &1300

Parameters

Physical parameters
Backlight	Ano
Central wavelength	1310±20nm/1550±20nm
Dimensions (mm)	160 x 76 x 45
Laser type	LD
Long-term output stability	< ±0.1dB @1310,1550nm
Model	FHS2D02
Output frequency (Hz)	270/1K/2K
Output Power - Uplink (dBm)	-5dBm ± 3dB
Output wavelength (nm)	1310/1550
Short-term output stability	< ±0.05dB @1310,1550nm
Spectral width	3nm
Storage temperature	-20°C - 70°C
Turn off automatically	Ano
Operating Temperature	-10° až +50°C
Weight (kg)	0.27
