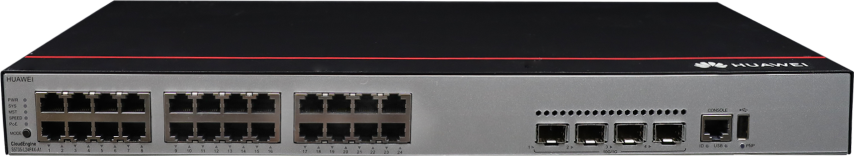

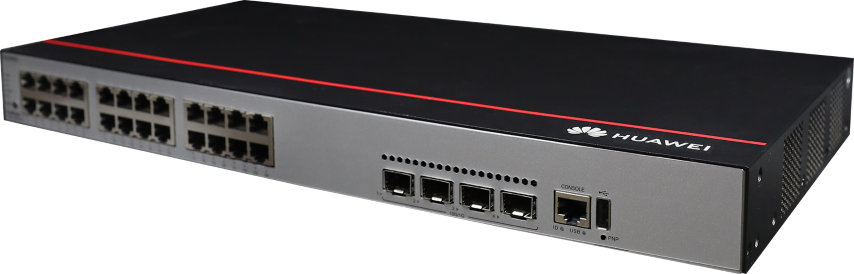

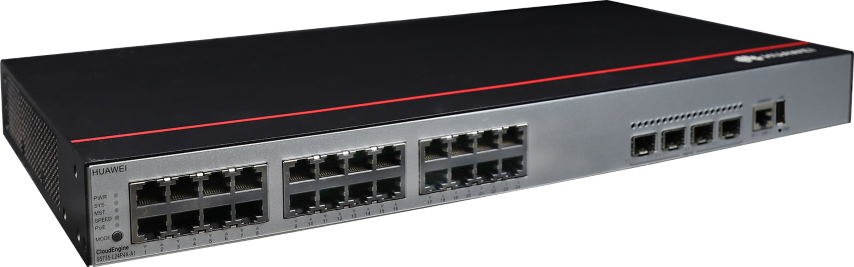

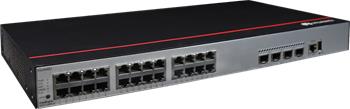

Huawei S5735-L24P4X-A1 Managed PoE+ Switch, 24x GE port, 4x SFP+, official CZ distribution

Huawei Cloudengine S5735-L24P4X-A1 is a gigabit L3 PoE switch with management designed for stable and fast access to the business network that offers 24x GE RJ45 PoE ports and 4x 10 GE SFP+ The Cloudngine S5735-L Switche, built on a high-performance new generation hardware and powered by Huawei Versatile Routing Platform, offer high flexibility for building Ethernet network, diversified security control and multiple routing protocols. lower energy consumption.

The S5735-L24T4X-A1 is 19"Rackmount with 1U height and only 220 mm , the power is solved by one AC input from the back of the device. Power-connected devices are available Power Budget 380 W and PoE support according to 802.3af/at .
parameters

name	value
version	1U Rackmount
Number of ports	24x GE RJ45, 4x 10g SFP+
POE POWER BUDGET	380 W
switching capacity	128 Gbit/s
Forwarding Performance	96 MPPS
Switche type	l3
mac features	32 896 MAC records Static, Dynamic, and Blackhole Mac Address Entries Packet Filtering Based on Source Mac Addresses Interface-Based Mac Address Learning Limiting
Vlan Features	4094 VLANS GUEST VLAN, VOICE VLAN GVRP MUX VLAN VLAN Assignment Based on Mac Addresses, Protocols, IP Subnets, Policies, and Ports 1: 1 and n: 1 VLAN MAPPING
IP routing	static route, rip, ripng, OSPF, OSPFV3
interoperability	VBST (compatible with pvst/pvst+/rpvst) LNP (Similar to DTP) VCMP (Similar to VTP)
Typical power consumption:	43 W (without POE)
Operating temperature:	-5 ° C ~ 50 ° C
Weight:	3 500 g
Dimensions (W x H x H):	442 x 43.6 x 220 mm
