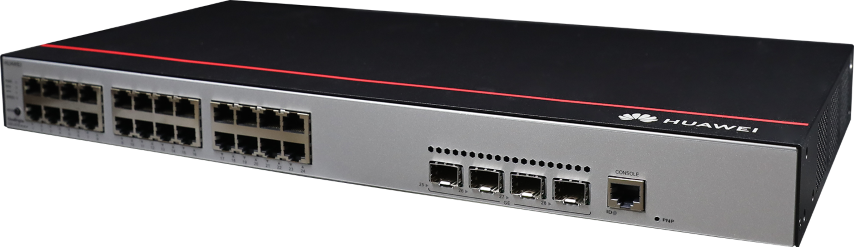

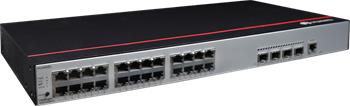

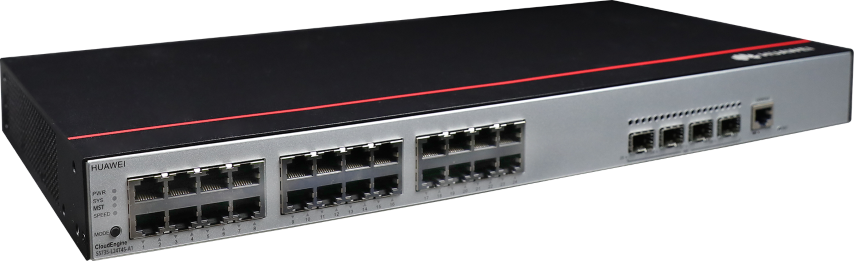

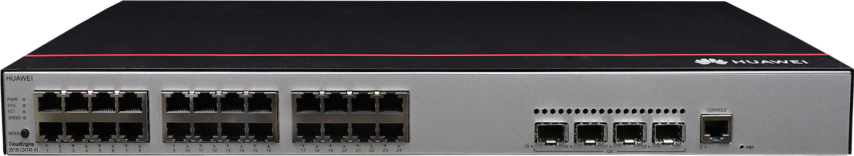

Huawei S5735-L24T4S-A1 Managed Switch, 24x GE port, 4x SFP, official CZ distribution

Huawei Cloudengine S5735-L24T4S-A1 is a gigabit L3 switch with management designed for stable and fast access to the business network that offers 24x GE RJ45 ports and 4x 10 g sfp The Cloudngine S5735-L Switche, built on a high-performance new generation hardware and powered by Huawei Versatile Routing Platform, offer high flexibility for building Ethernet network, diversified security control and multiple routing protocols. lower energy consumption.

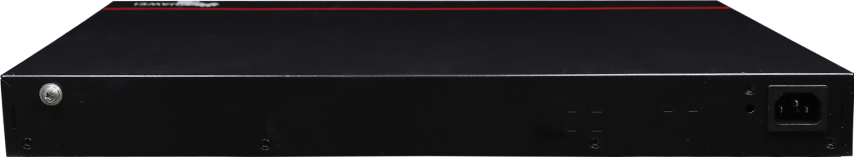

The S5735-L24T4S-A1 is 19"Rackmount with 1U height and only 220 mm depth , the power supply is solved by AC input from the back of the device. In terms of management, Switch supports the Huawei Istack (Intelligent Stacking) and SVF Client (Central Management).

parameters

name	value
version	1U Rackmount
Number of ports	24x GE RJ45, 4x 1g SFP
switching capacity	56 gbit/s
Forwarding Performance	42 MPPS
Switche type	l3
mac features	32 896 MAC records Static, Dynamic, and Blackhole Mac Address Entries Packet Filtering Based on Source Mac Addresses Interface-Based Mac Address Learning Limiting
Vlan Features	4094 VLANS GUEST VLAN, VOICE VLAN GVRP MUX VLAN VLAN Assignment Based on Mac Addresses, Protocols, IP Subnets, Policies, and Ports 1: 1 and n: 1 VLAN MAPPING
IP routing	Static Route, Rip, Ripng, OSPF, OSPFV3
interoperability	VBST (compatible with pvst/pvst+/rpvst) LNP (Similar to DTP) VCMP (Similar to VTP)
Typical power consumption:	33 W
Operating temperature:	5 ° C ~ 50 ° C
Weight:	2 450 g
Dimensions (W x H x H):	442 x 43.6 x 220 mm
