IMCO POWER DL2U PoE/DC injector 24/48V (15x slot)

; The DL2U Injector/Distribution (15x) is a 19"chassis with a height of 2U, which contains 15 positions for PoE.Z 1Gb PoE.EU plug-in module or DL.Z 24480303. The individual positions are numbered 1-15. Positions can be masked by means of patches (not...More information

Producer

IMCO POWER

Part No.

EV003386

Code

00033599

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

180.73 EUR exc. VAT

VAT

21%

Your price inc. VAT

218.69 EUR inc. VAT

Ask for a better price

Description

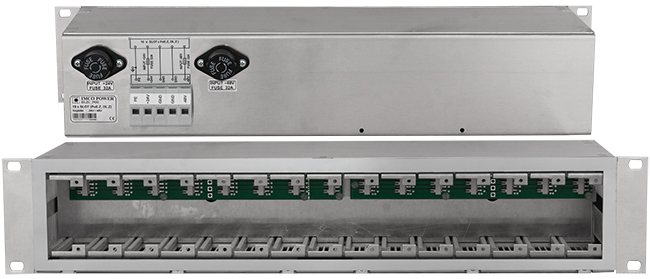

DL2U Injector/Distribution (15x) is 19"Chassis with 2U height, which contains 15 positions for the passive POE (Module Poe.z 1GB) or for the DL distribution module.
Chassis does not contain a power supply, it is designed to connect already existing 24/48 in DC. It has two buses with a current capacity up to 32A/bus. The bus is divided into 24V and 48V branch. They are secured with melting fuses located on the back of Chassis (24V branch is secured at the pole + and 48V branch at the pole-).

The supply voltage clamps are located on the back. They allow the wires to be connected up to 6mm

2 . There is a ground potential for a separate terminal to ensure the operation of the overvoltage protection in the case of POE.Z 1GB.

Parameters

Ethernet parameters
Input Voltage (V)	48, 24
Network interface (Mbps)	10/100/1000
Physical parameters
Design	Rackmount
PoE parameters
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
