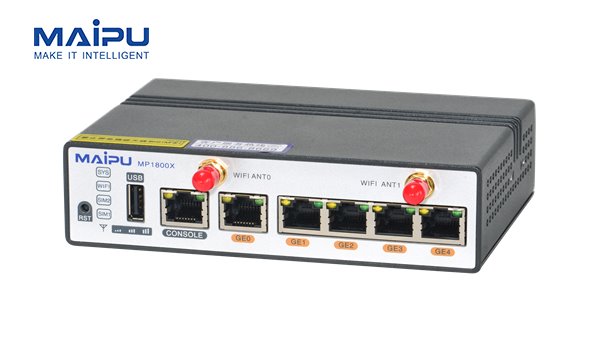

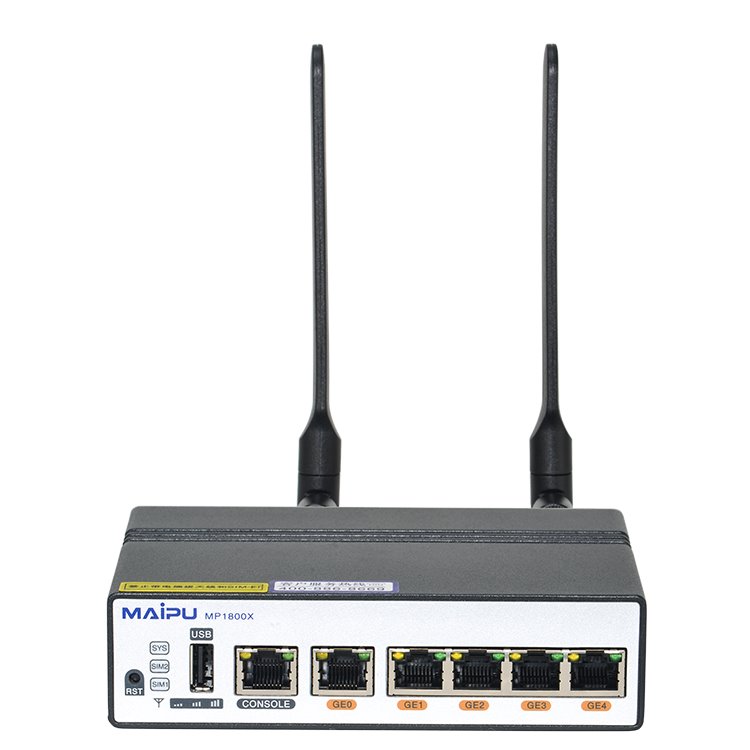

Maipu MP1800X-40 LTE Edge Router

The MP1800X-40 series router developed by Maipu Corporation is a next-generation LTE access router that can be used mainly for business and enterprise services. It integrates state-of-the-art networking technologies to provide flexible network access modes and state-of-the-art security.

The model MP1800X-40 offers a total of 1x WAN port, 4x GEth LAN port and 2x slot for 3G / 4G SIM card. This makes it possible to use the router to back up primary connectivity using an LTE connection or vice versa. The WAN port supports static address, DHCP and PPPOE access modes. WAN failover switch can be done automatically based on line status and IP address.

High performance
The MP1800X-40 series router achieves routing performance of more than 300 kpps, while the configured services such as ACL, QoS, VPN do not significantly affect this performance.


Rich software features
The MP1800X-40 provides rich software features; supports various application technologies such as VPN, MPLS, multicast, ACL, & nbsp; MAC address binding, access control, bandwidth limitation, MSTP, NAT; supports RSVP, hierarchical QoS with various types of queues such as FIFO, PQ, CQ, FQ, CBWFQ and LLQ.


Advanced security features
The MP1800X-40 Series Router supports a full range of security features such as port authentication technologies, including 802.1x authentication and MAC address authentication, RADIUS or TACACS. It has a VPN function and can be connected to a private VPDN channel based on the 3G / 4G network. Data can be transmitted in a secure tunnel MPLS / VPLS, IPSec, GRE, L2TP, which prevents access and manipulation of data and provides higher security of the application over the network.


Rich management options
The MP1800X-40 series router supports complete management modes, including SNMPv1 / v2c / v3, CLI, USB drive deployment, MIB, RMON, SYSLOG, TR069, Netflow, etc.
