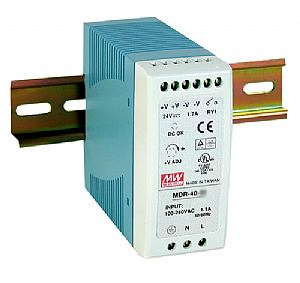

      Mean Well MDR-40-48, Switching power supply 48V/0.8A, 40W
      Compare Set Watchdog

      Mean Well MDR-40-48, Switching power supply 48V/0.8A, 40W

      Quality power supply with 48V 0.83A output voltage and 40WS installation on DIN bar.More information

      Producer
        MEAN WELL

      Part No.


      MDR-40-48


      Code
       00011662
      Warranty
      24 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      27.06 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      32.75 EUR  inc. VAT

      Buy cheaper refurbished Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        Source adapted to the DIN mounting , with a screw connection with a touch protection. Input voltage range from 85-264V AC, 47-63 Hz and 120-370V DC, output voltage 48V , flow 0.83a and max power 40W . The source has overload protection (105 ... 160#i6per#) by limiting the current, car recovery, overvoltage protection (115 ... 135#i6per#) and short-circuit protection. Has a built-in suppression filter, low residual waves.

        properties:
        • insulation resistance from input to output 100 M &omega
        • insulation voltage from input to output 3000 in AC
        • 60a start current for cold start with 230V
        • 50MS Bringing a network outage at 230V
        • 100# i6per# burn-in-test at full load
        • insulating class II

        Parameters

        DC Output Voltage (V) 56
        DIN rail mounting Yes
        Input Voltage (V) 230
        Local signalling LED
        Ochrana proti přepětí Ano
        Ochrana proti zkratu Ano
        Operating Temperature -20° až +70°C
        Output Current (A) 0.83
        Output Power (W) 39.8

        Physical parameters
        Depth (mm) 90
        Design DIN rail
        Efficiency (%) 88
        Height (mm) 40
        Weight (kg) 0.3
        Width (mm) 100

        Powering
        Typ zdroje Spínaný
