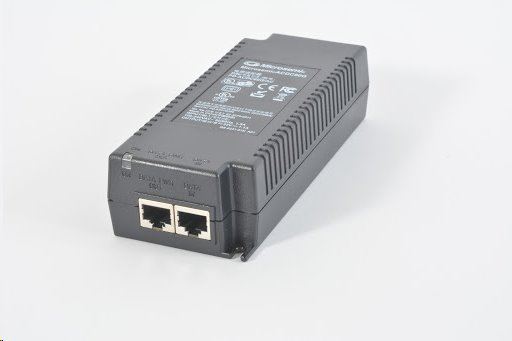

Microsemi PD-ACDC60G/AC, passive PoE adapter 60W

Name: Microsemi PD-ACDC60G/AC, passive PoE adapter 60W
Brand: Microsemi
SKU: 49956
Price: 92.58 EUR
Availability: InStock

The Microsemi PD-ACDC60G/AC single-port power injector offers a compact and & reliable power solution for backbone wireless links, access points, network cameras and other PoE installations. The input voltage is 230 V, the output is 55 V supplied to al...More information

Producer

Microsemi

Code

00070406

Availability

Availability in stores

Order

Your price exc. VAT

76.52 EUR exc. VAT

VAT

21%

Your price inc. VAT

92.58 EUR inc. VAT

Ask for a better price

Description

The Microsemi PD-ACDC60G/AC single-port power injector offers a compact and & reliable power solution for backbone wireless links, access points, network cameras and other PoE installations. The input voltage is 230 V, the output is 55 V supplied to all 4 pairs of Ethernet wires using passive PoE. The PD-ACDC60G supports 1 Gbps Ethernet and has overload and short circuit protection. Maximum output power is 60W.
& nbsp;

Passive PoE support & nbsp; (all pairs, 1/2/7/8 (-), 3/4/5/6 (+))
Input voltage 100 to 230 V AC
Output voltage 55 VDC / 1.1 A
Overload and short circuit protection
Temperature range -10 & deg; C to + 40 & nbsp; & deg; C
Dimensions 62 x 38 x 151 mm

Parameters

Ethernet parameters
DC Output Voltage (V)	55
Input Voltage (V)	230
Output Current (A)	1.1
Output Power (W)	60
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	151
Design	Standalone
Efficiency (%)	89
Height (mm)	38
Operating Temperature	-10° až +40°C
Weight (kg)	0.3
Width (mm)	62
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
