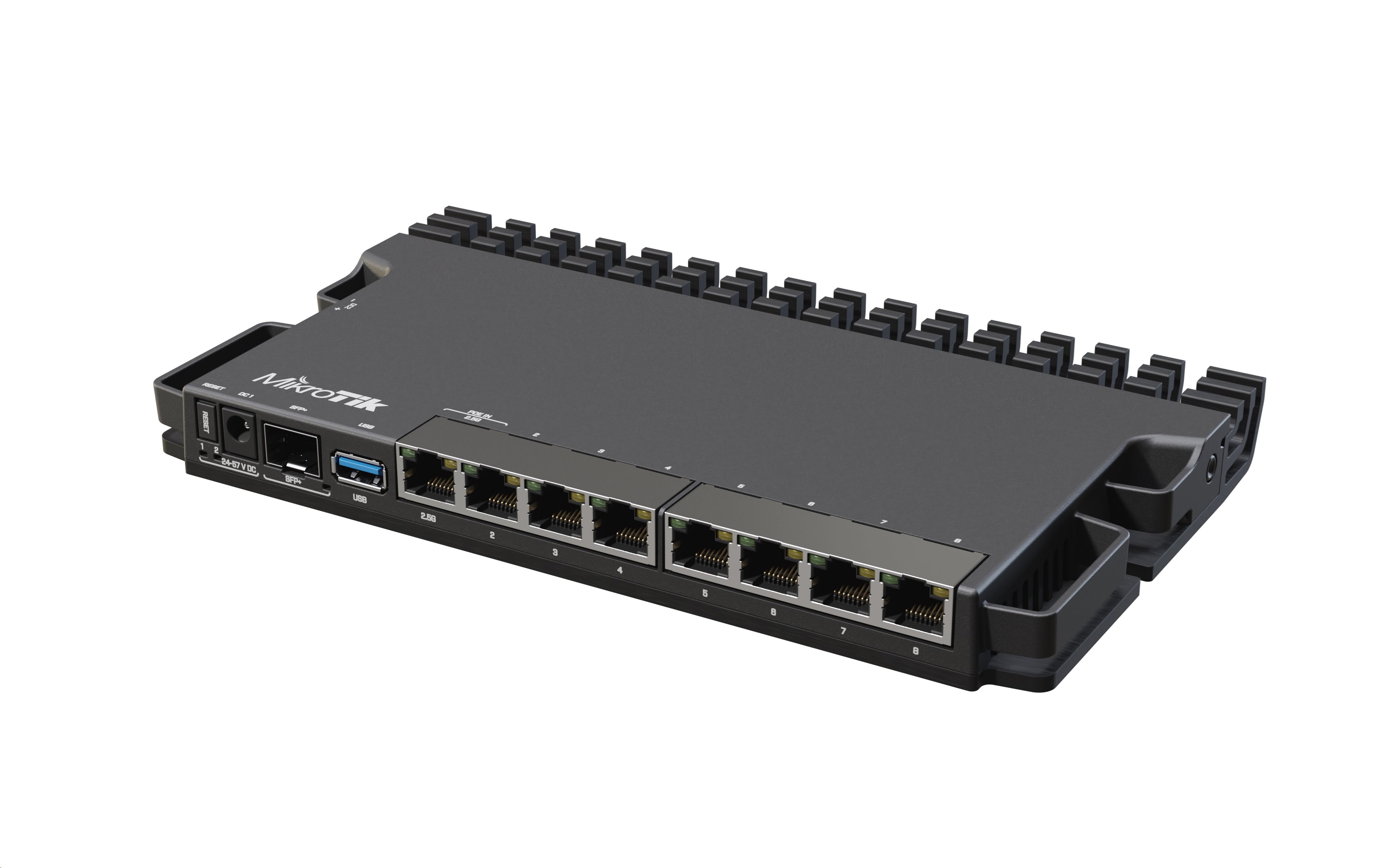

MikroTik Cloud Core Router RB5009UG+S+IN

Mikrotik Cloud Core Router RB5009UG+S+In is the most demanding deployment for the most challenging location, whether in climatically demanding locations or as a universal testing device.
The router will offer 9 different Ethernet ports and 1x USB 3.0 port. Seven Ports are classic gigabit metallic, others are 2.5 Gigabit Ethernet and the last is 10g SFP+ shaft. All ports are connected to a powerful switch chip of the Marvell Amethyst family, which is over 10 Gbps a fully duplex line associated with the quad-core processor Marvell Armada Armv8 1.4 GHz. This combination of ports and components (1 GB DDR4 RAM and 1 GB NAND storage) almost double the power in configurations with high CPU loads compared to other products in this version.

In addition-both key components (CPU and switch chip) are located on the bottom of the board to ensure the best cooling- chassis acts as a massive cooler!

The huge advantage of use is three different ways power:

1. Poe-in from Ethernet port no. 1
2. dc jack
3. 2-collar clamp on the side
This unprecedented computing power and connection options are packed in a very small and compact design that is no problem to place almost anywhere. To illustrate-one classic 1U profile can fit up to 4pcs RB5009UG+S+in.


parameters

support

name	value
version	Desktop
CPU	88F7040 1.4 GHz
CPU frequency	1,400 MHz
Number of CPU cores	4
RAM	1024 MB
Internal storage size	1024 MB
LAN	7x 10/100/1000 Mbps, 1x 10/100/1000/2500 Mbps
Optical interface (SFP)	1x 10 Gbps SFP+
operating system	Routeros-L5
IPv6	Yes
Power type	DC (24 V)/Poe-in (802.3af/at)/2-Pin Terminal
Max. power consumption	20 W
Dimensions (W x H x H)	220 x 22 x 125
operating temperature	-40 ° C to 60 ° C

• device
• 1x power adapter 24 in 1.5 and
• mounting set
