Mikrotik CRS328-24P-4S+RM, switch 24 Gb ports + 4 SFP+ 10 Gb

CRS328-24P-4S+RM is 28 port switch fitted with 24 Gbit Ethernet ports that offer a wide range of output PoE power supply: passive POE, low-voltage POE, 802.3af/at (Type 1 Poe, Type 2 PoE+) with automatic recognition. 4 SFP+ ports offers a speed of up to 10 Gbps through optical fibers or Ethernet.

The switch is built into 1U Rackmount cabinet with an integrated 100-240 VAC source that provides 500 W. The device itself has a maximum consumption of 44 W and up to 450 W remains to power connected POE devices (3x150 W for each group of 8 ports). Each of the ports can provide up to 30 W, regardless of the type of POE.

The device has a Dual Boot function that allows you to choose the operating system used-routeros or swos. If you prefer simple settings and settings only switch functions, you will use SWOS. If you prefer to take advantage of the L2/L3 option, you will use the routeros. You can choose the desired operating system from both Routeros, SWOS and routerboot loader. All these features at an excellent price make this device one of the best choices to compare the price/performance ratio.

Physical Characteristics:

Rackmount version with metal chassis

operating temperature-20 to 60 ° C

2x fan 40 x 40 mm

Dimensions 305 x 443 x 44 (H x W x H)

hardware:

512 MB RAM

CPU: 98dx3236a11

Frequency of CPU 800 MHz

1 CPU core

Size of storage 16 MB

Software:

Web Management

Function of VLAN, QOS, L3

Operating System SWOS, Routeros-L5

default IP address: 192.168.88.1

default and password: admin/

Connectors and interfaces:

Serial port: RJ45

LAN speed: (24) 10/100/1000 Mbps

Gigabit Lan: Yes

SFP/SFP+: (4) 10 Gbps speed

Power:

Max. power consumption of 44 W

Power type: from network (230 V)

POE types: Output

Number of Poe Out Ports: 24

Poe Budget 450 W

Power supply via connector/terminal: 230 in AC

Package content:

CRS328 device

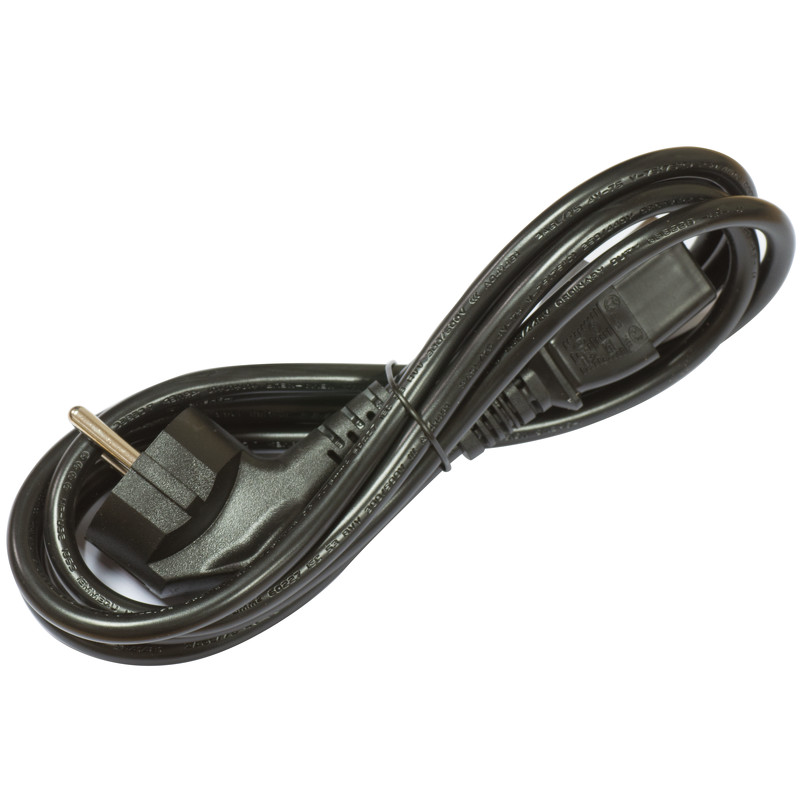

power cable

mounts up to 19"rack
