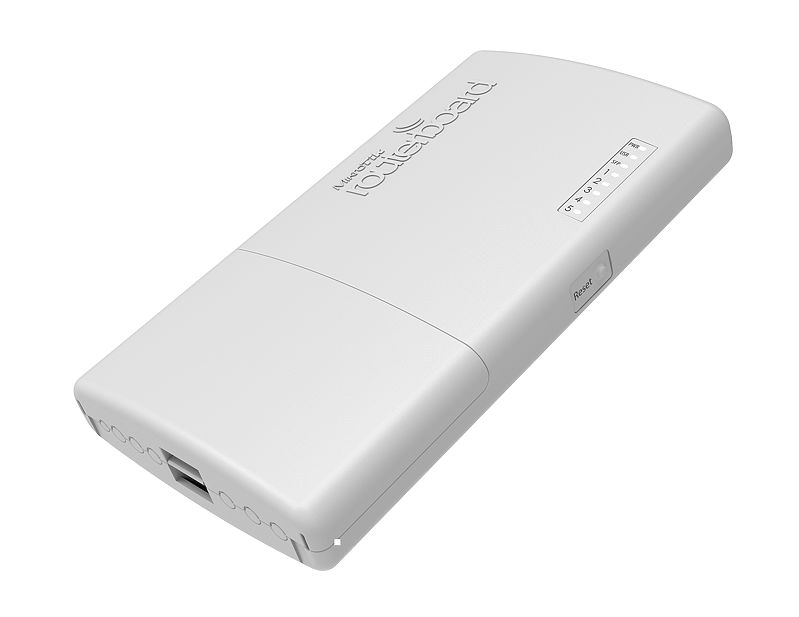

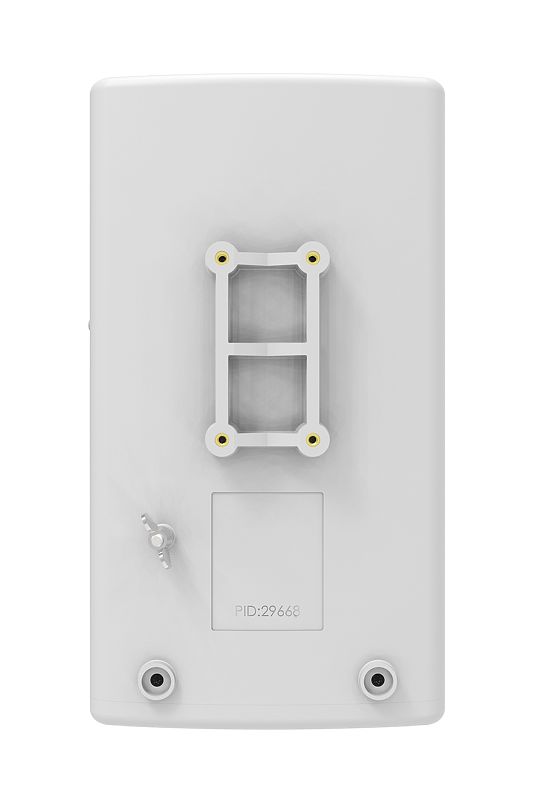

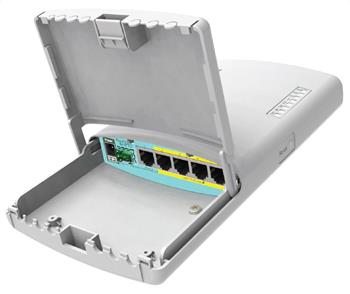

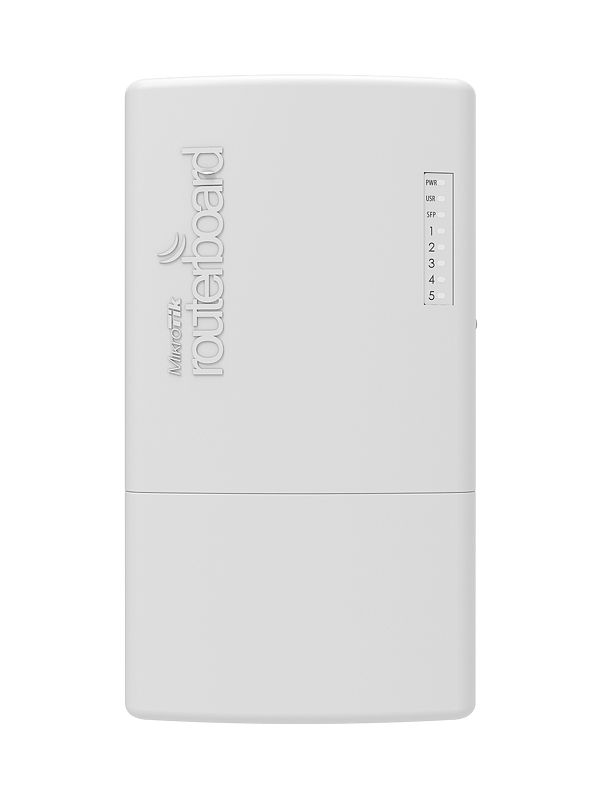

MikroTik RouterBOARD RB960PGS-PB PowerBox Pro, 5xGLAN (4x PoE-OUT), Outdoor, e.g. adapter, ROS L4, mounting set

PowerBox Pro is an outdoor device with 5x Gigabit LAN with the possibility of POE (Port 1 for Poe In, 2-5 for POE Out), one SFP port and power connector. PowerBox Pro is powered by QCA9557 processor with 800 MHz clock, 128 MB RAM and flash storage with 16 MB



Power:
PowerBox Pro is a specific device for powering other active elements connected to ports of 2 to 5, where it transmits the power supply that the powerbox itself is powered (by standard powerbox supplied with a 24 V power adapter designed to power eg SXT units). In the case of using 48 to 57 in the power adapter, the powerBox is able to power the 802.af/at devices (B \u003d 4.5+, 7.8-). In the case of using less than 30 V, the current restriction is to 1 port 1 A, in the case of a higher voltage, the current limitation to the port is set to 450 mA. The total current on all ports is limited to 2 A.



To control and monitor all PowerBox features is installed your favorite routeros with L4 license .

parameters: speed

name	value
version:	Outdoor
Operating temperature (° C):	-40 to 70
Dimensions (mm):	52 x 125 x 225
RAM (MB):	128
CPU:	QCA9557
CPU Frequency (MHz):	800
Number of CPU cores:	1
LAN speed:	(5) 10/100/1000 Mbps
Gigabit LAN:	Yes
SFP/SFP+:	(1) 1,000 Mbps
Max. Energy Consumption (W):	9
Power via POE:	12 .. 57 in DC
Power type:	DC connector, poe
POE types:	input and output
Power supply via connector/terminal:	10 .. 57 in DC
operating system:	routeros l4

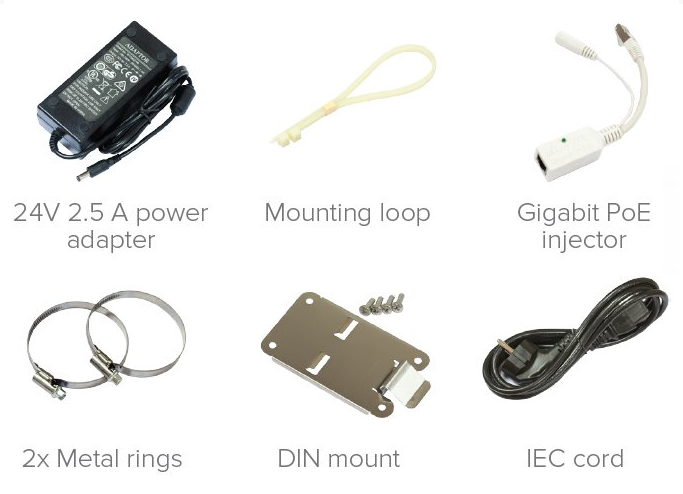

Package content

device

power adapter 24 V/2.5 and

power cable

gigabit poe injector

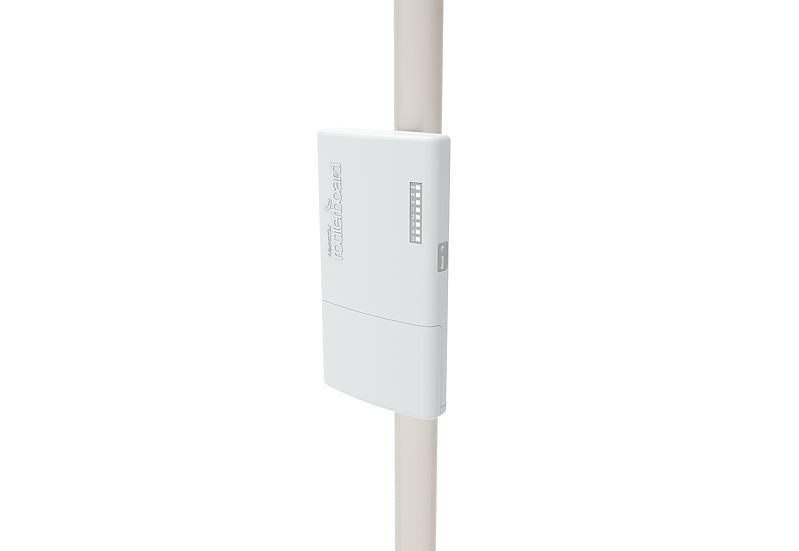

kit for mounting on the DIN bar

2x metal tightening tape
