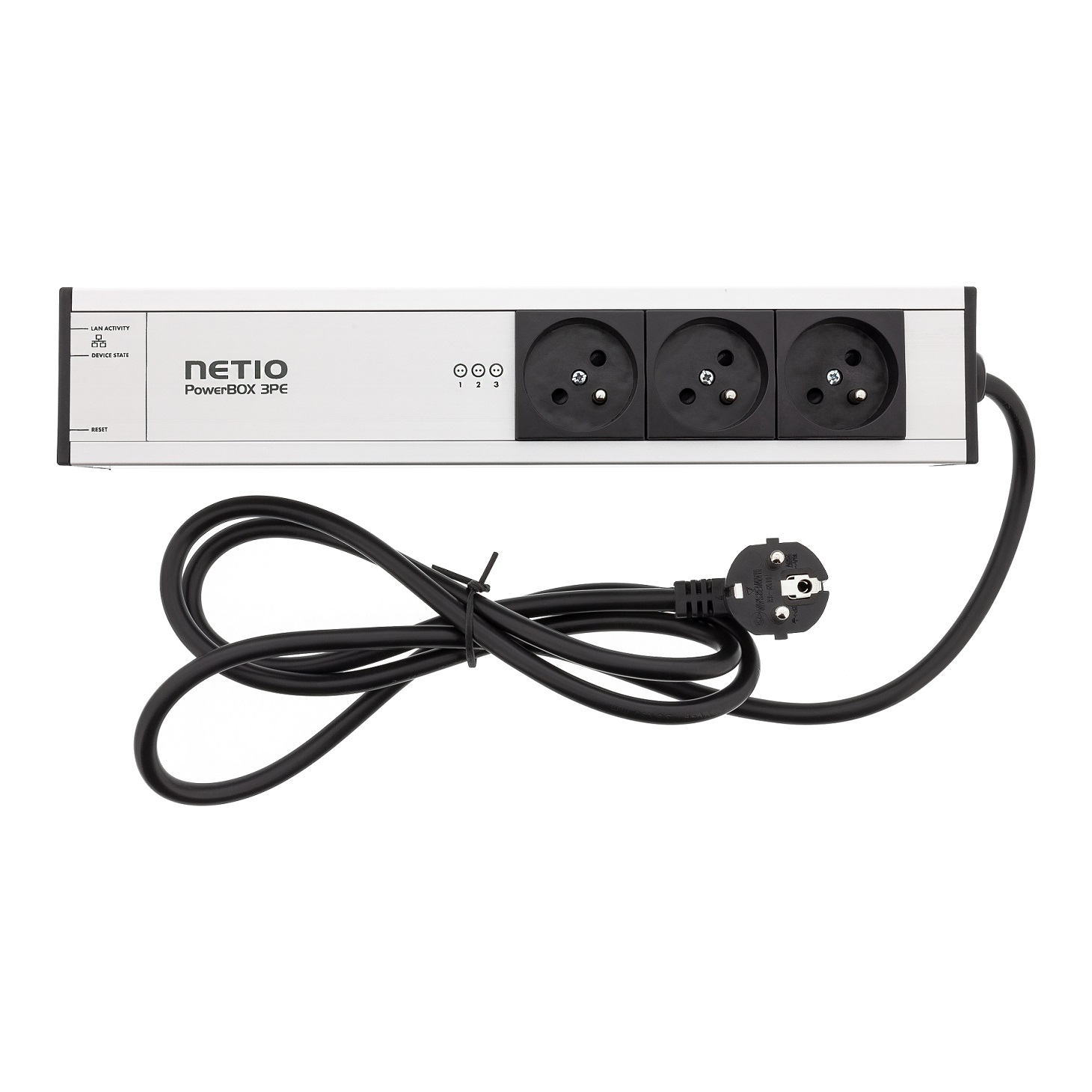

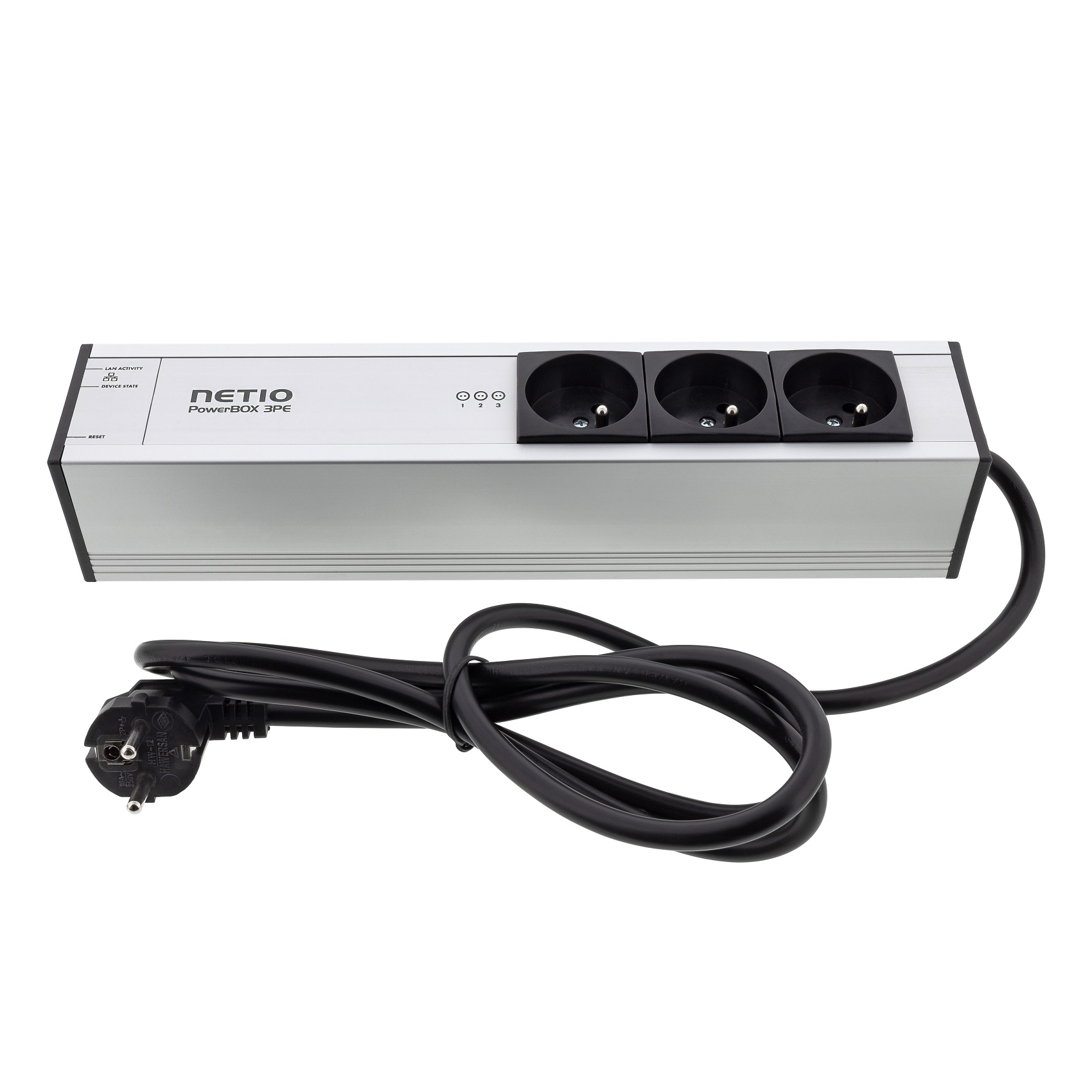

NETIO PowerBOX 3PE smart sockets

Netio PowerBox 3e is a controlled electrical outlet of the SE 3 outputs . Each output can be turned on and off via the product interface. The materials and temperature ranges of the equipment predetermine for use in industries.
The product can be attached simply on the DIN bar.


Simply controlable

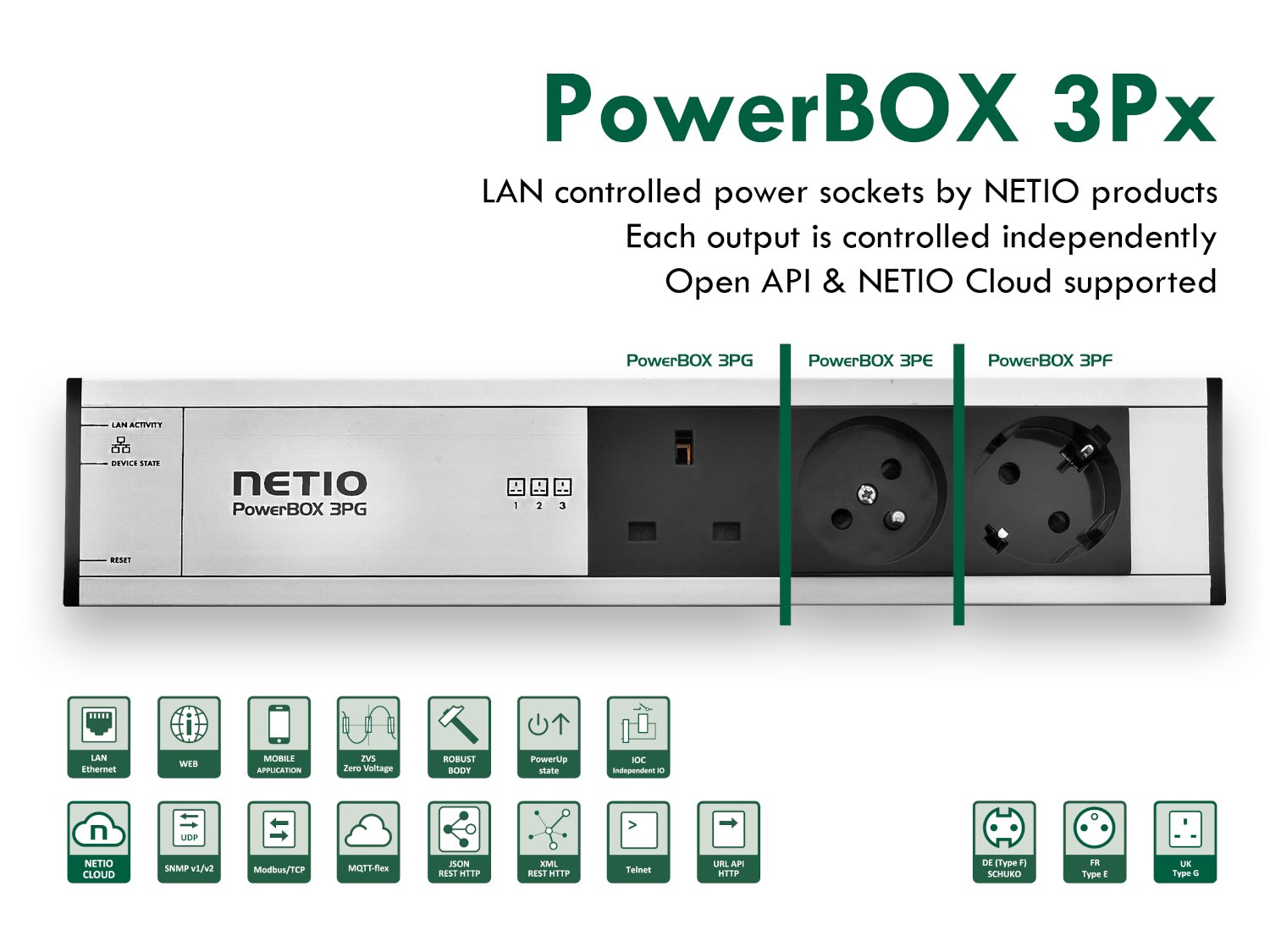

Netio PowerBox 3PX smart power outlets always allow the site to be controlled and support Netio Cloud. For OPEN API communication you can enjoy one of the 7 different M2M protocols : Modbus/TCP, MQTT-Flex (Plain/TLS), Telnet, HTTP URL, HTTP JSON, HTTP XML, SNMP V1/V2/V3. The protocols are documented on the manufacturer's website as part of useful application notes.

Each of the four electrical outputs (electrical outlet) can be turned on/off by button on the device or from the product website. The manufacturer supplies the mobile application, but thanks to the open API you can also use the recommended third-party mobile applications.

Well-arranged web interfaces can be tested at http://powerbox-rest.netio-products.com Using Netio Cloud , outputs can be controlled from anywhere. Netio Cloud is a paid service, but uses SSL security and servers are located in Europe. As part of the new device, you can try 3 annual trial version free of charge.




gentle
IOC (Independent Output Control), Output status is not affected by LAN of the connection, restarting the network layer or firmware upgrade.

Unique support ZVS (Zero Voltage Switching) is important for long-term switching on and off the connected electrical equipment. The ZVS ensures the switching and opening of the switching relay at passage of voltage zero . The ZVS is gentle on the connected electrical equipment, which extends their lifetime. This is particularly suitable for electrical appliances with high current on current (inrush current). High switching current is typical of switching sources enhanced in IT, but also in LED lighting and other applications.

parameters:

name	value
LAN:	1x RJ45
wifi:	No
RS-232:	No
Web:	built-in web server
Mobile App:	Yes (iOS/Android)
M2M API protocols:	MODBUS/TCP, MQTT-FLEX (PLIN/TLS), Telnet, HTTP URL API, HTTP JSON, HTTP XML, SNMP V1
LUA support:	No
Power input:	Electric plug of type E-FR-Powerbox 3pe (230V/16A)
Mechanical power switch:	Yes
Power output:	3x Electric plug type E-FR-Powerbox 3pe (230V/16A)
zvs (switching output when the voltage passage is zero):	Yes
Mechanical parameters:	aluminum profile-320 x 62 x 62 mm + cable 1.6 m
PowerUP State	ON/OFF/LAST STATE
Acoustic output:	No
Temperature range:	-20 ° C to +65 ° C
Custom Consumption of Device:	1-2 W

Package content:

• Netio Powerbox 3pe
• qig (printed installation wizard)
