Optical cable, Blown Cable, 12v, 9/125, LFP, 2.8mm, CLT

Outdoor use

for blowing into HPDE tubes

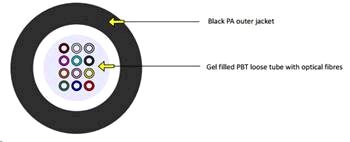

fiber G.657A led by a gel filled with a tube with a polyamide sheath

cable life: at least 30 years

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	2,8
Weight:	8 kg/km
Short-term tensile load (n):	70/TD>
Long-term tensile load (n):	-
Installation temperature (° C):	-5 to 50
Operating temperature (° C):	-20 to 70
storage temperature (° C):	-20 to 70
