Optical cable, J/A-(ZN)H, FTTx DROP, 12V, 9/125, G657A, 3.4mm, LSOH

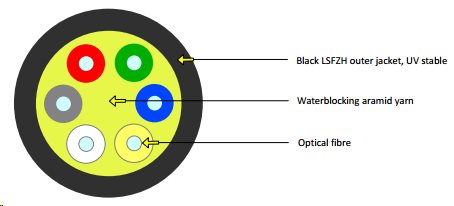

The 7A01 cable is one of the best-selling cables of the present. It is produced in a single-od design with 2-24 fibers and LSOH with a cloak.

bend radius 1 cm in loop, fiber G.657A

cable diameter 3 mm

Possibility to use in both internal and external environments

option to be up to 130 m

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	3,4
Weight:	10 kg/km
Short-term tensile load (n):	500/TD>
Long-term tensile load (n):	-
Installation temperature (° C):	5 to 40
Operating temperature (° C):	-20 to 60
storage temperature (° C):	-20 to 60
