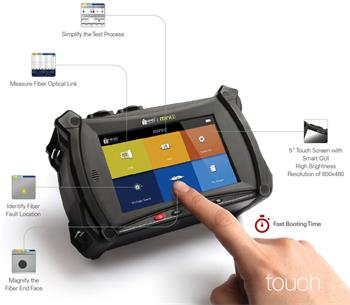

OTDR INNO MINI 2, 32dB/30dB (1310nm/1550nm) incl. VFL and LS

Small OTDR Mini2 is designed for use in installation and maintenance of optical cables. OTDr is built on HW, which guarantees high measurement accuracy, quick response and easy operation. SW offers accurate and very fast processing of measured data and creates clear graphs and results tables. It is a very small, light and compact hand device.

Technical Specifications:

model	mini2
DISPLAY	5 INCHES, HIGH BRIGHTNESS TFT LCD, Resolution of 800 × 480
distance Unit	m/km/mile/ft
Dynamic Range	32DB/30dB (1310nm/1550nm)
Measurement Range (km)	1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 260km
pulse width	5NS, 10NS, 20NS, 50NS, 100ns, 200ns, 500ns, 1µs, 2µs, 10µs, 20µs
Dead Zone (Event/Attn./Pon)	1m/5m/50m
distance Accuracy	± (1m +distance × 2.5 × 10-5 +sampling resolution)
linearity	0.03db
Sampling Points	110,000 POINTS
Resolution	0.04m ~ 10.24m
LOSS READOUT RESOLUTION	0.001DB
BATTERY CAPACITY	Operating Time: up to 12hours
FILE format	SOR, BMP, JPG, GDM, Sola, PDF

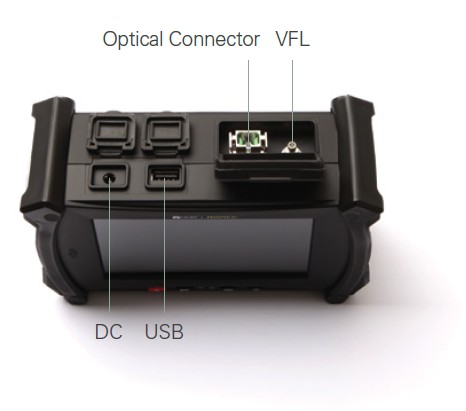

External Connection	USB 2.0
Compatible Connector	APC (FC, SC, LC), UPC (FC, SC, LC, ST)
Power Supply	AC Input 100-240V, 50-60Hz/DC Input 19V, 3.42a
VFL port	2.5mm Ferruule Type
VFL WAVELENGTH	650nm ± 10nm
VFL distance	up to 15km
VFL OUTPUT POWER	20MW
LIGHT SOURCE	Operating WaveLength: 1310nm/1550 nm ± 10nm
LIGHT SOURCE OUTPUT POWER	-5dbm

Package content

OTDr Mini2

power adapter

bag with a belt over the shoulder

control stylus

calibration protocol

basic parameters

Dimensions: 115 x173x64 mm (without protective case)

Weight: 0.9 kg with battery

Operating temperature:-10 ~ 50 ° C

storage temperature:-20 ~ 60 ° C

Relative humidity: 0 ~ 95#i6per#
