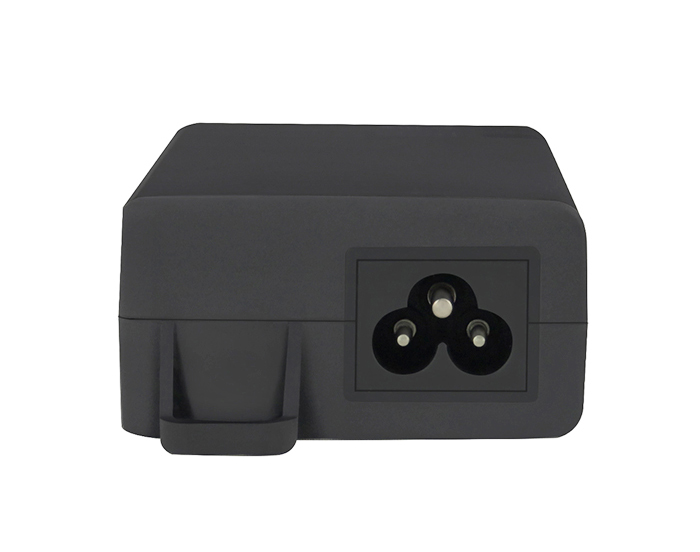

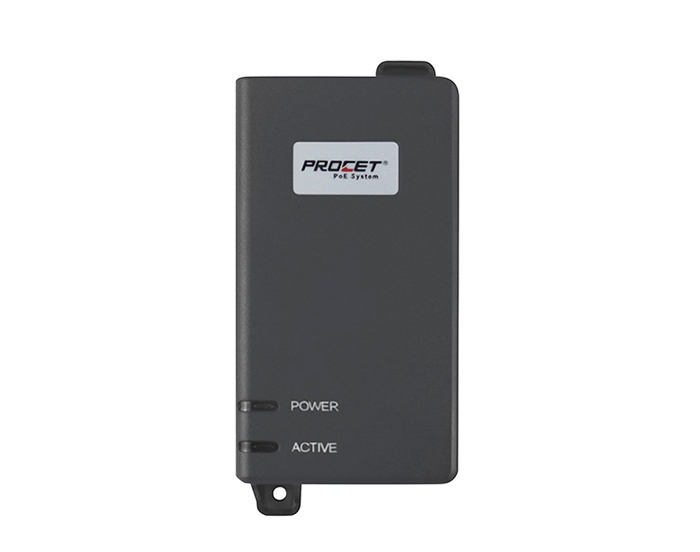

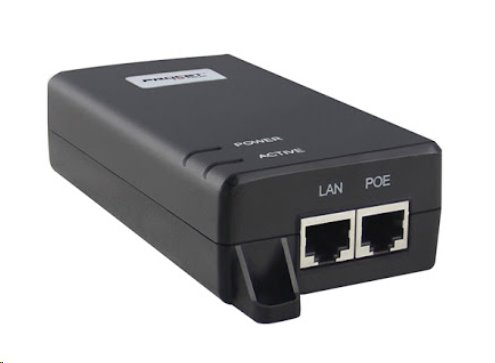

PROCET PT-PSE104GO-30-10, active 10Gbps PoE source, 55V/0.55A, 30W

The Procet PT-PSE104GO-30-10 PoE adapter is a reliable and robust solution for powering various network elements using the PoE 802.3at standard , which allows you to power devices with a power input of up to 30 W . In addition, this adapter supports 1 / 2.5 / 5 / 10G Ethernet and is suitable for powering backbone elements with high demands on throughput or, for example, motor-operated PTZ cameras. In addition, the PT-PSE104GO-30-10 has an extended working range from -40 to 65 ° C, making it ideal for mounting in outdoor racks.

Thanks to the mounting holes and compact size, it is not a problem to simply place the device on a mounting plate in the cabinet or directly on the wall. The package includes a connecting cable with an EU terminal.

Features:

• Ethernet standard: 1 / 2.5 / 5 / 10GbE NBASE-T
• PoE standard: IEEE802.3af/at - 4/5 (+), 7/8 (-)
• Output voltage: 55 V
• Output current: 550 mA
• Input voltage: 100-240 VAC / 50-60 Hz
• AC input protection: 1.5 kA (8 / 20us) / 3 kV (1.2 / 50us)
• Temperature range: 0 to +40 ° C
• Dimensions: 146 x 66 x 34 mm
• Weight: 255 g
