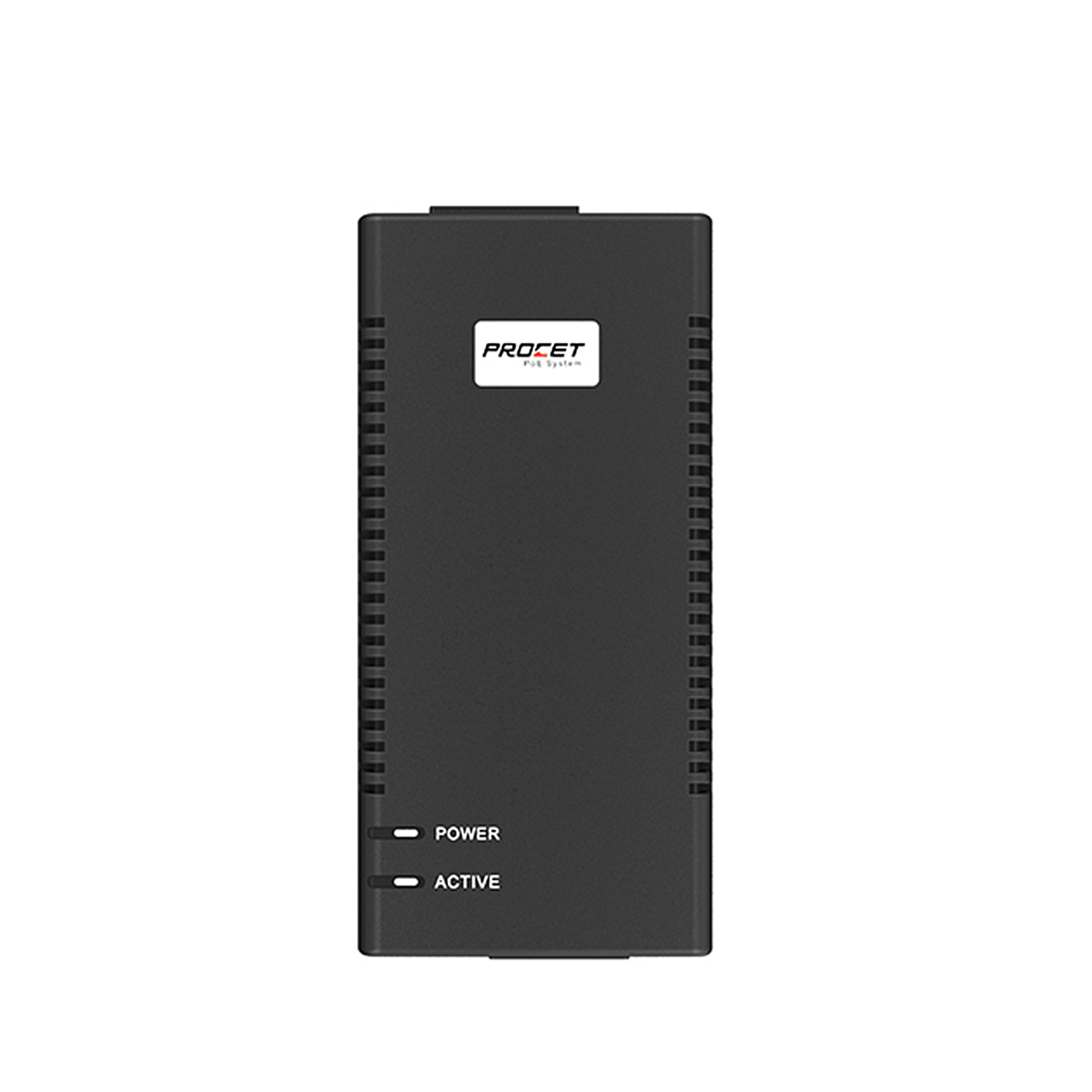

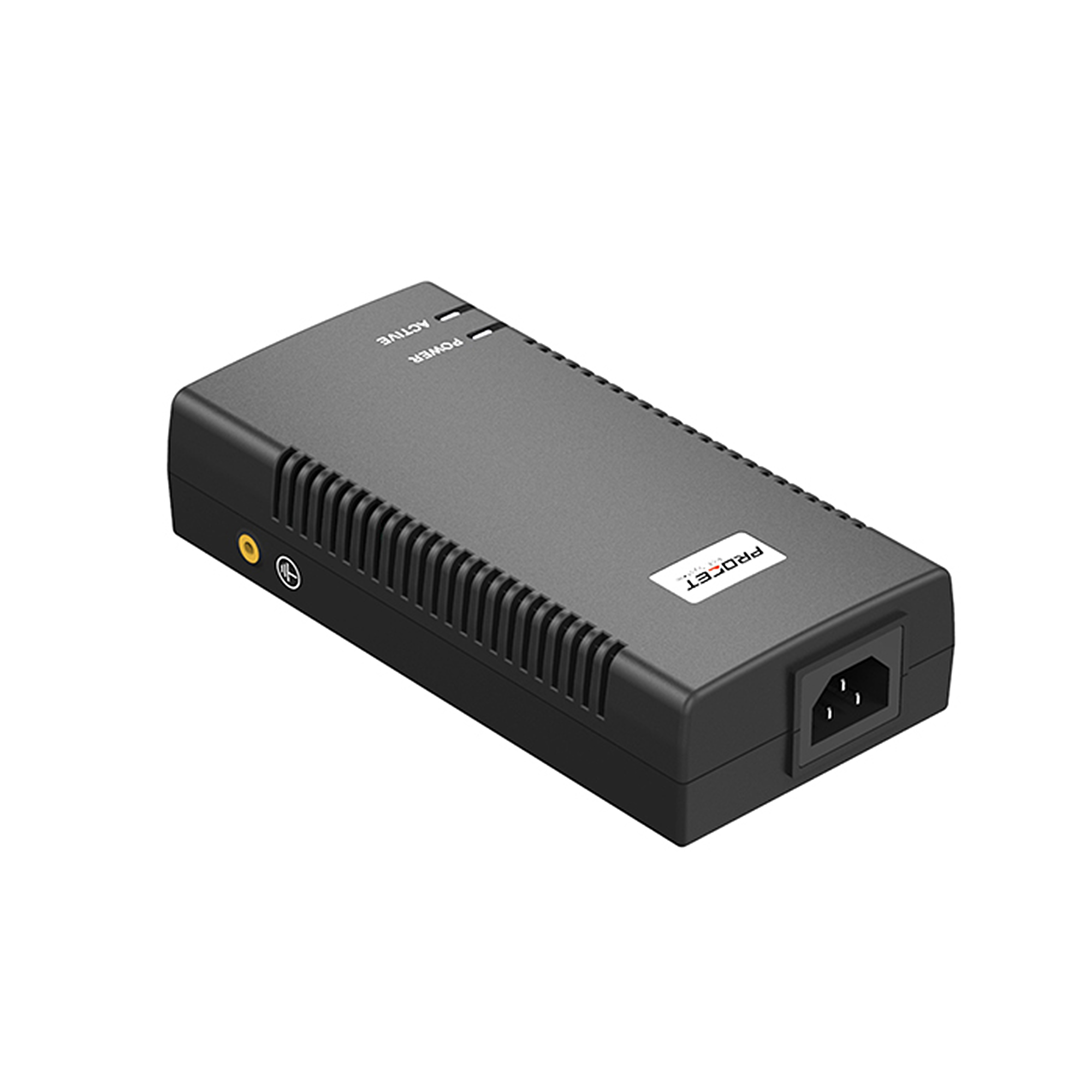

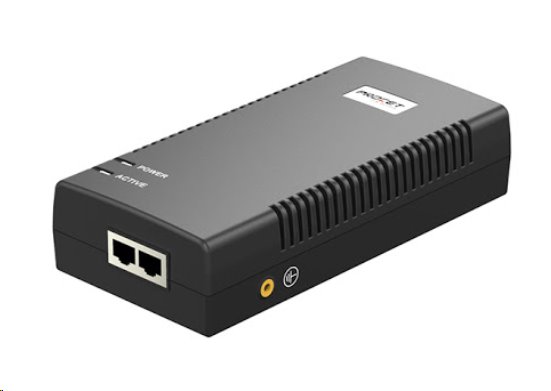

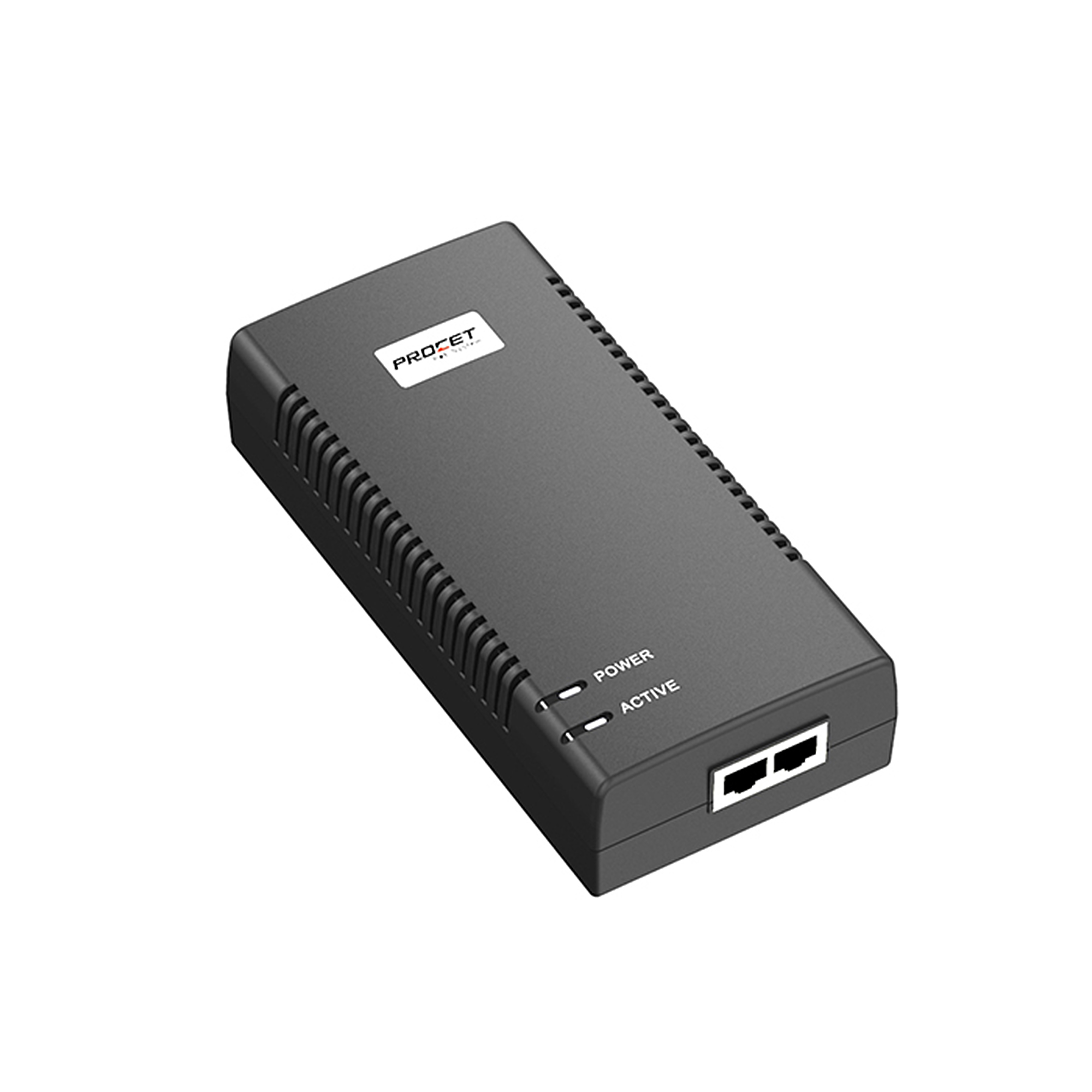

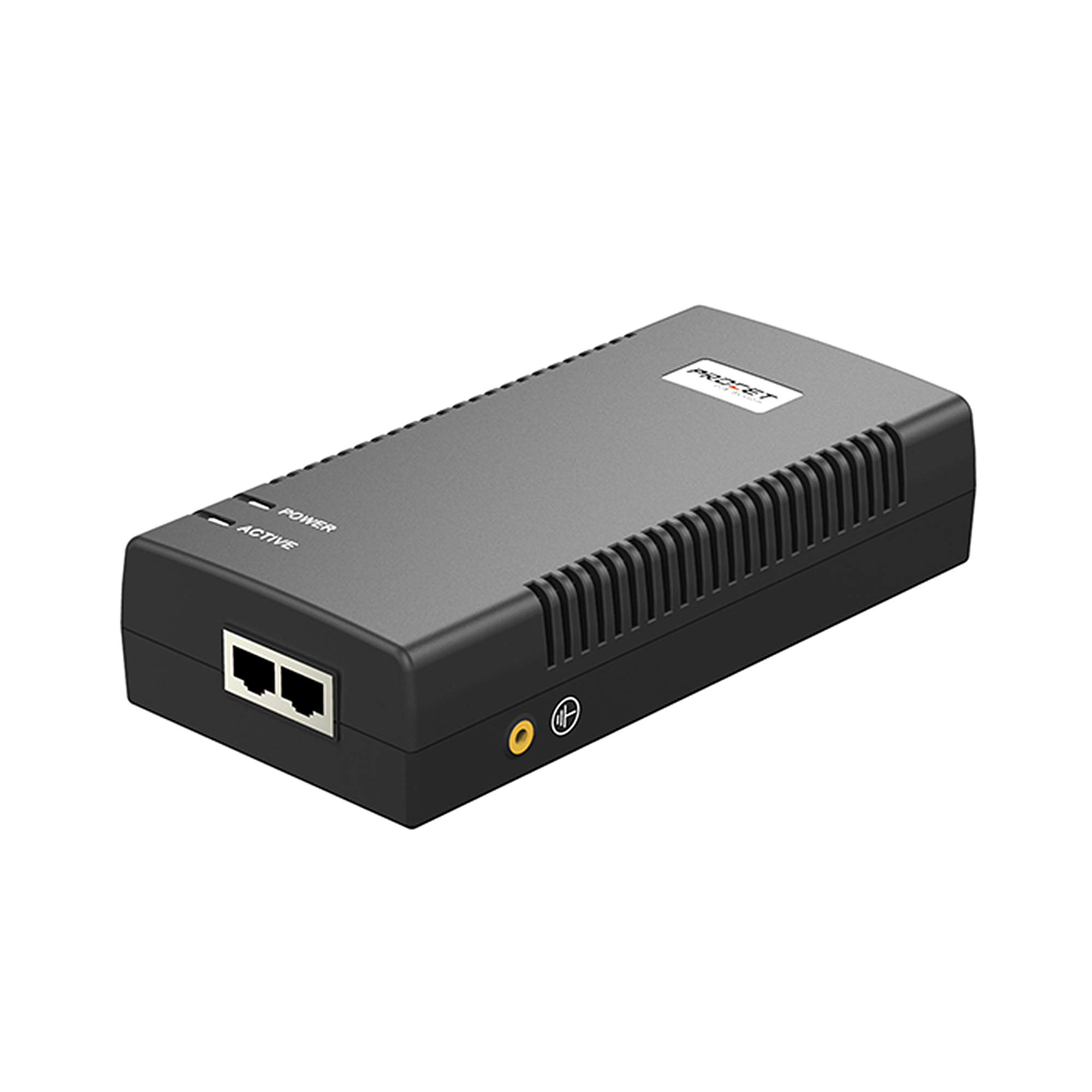

PROCET PT-PSE106GBRN-10, 10Gbps PoE source, 55V/1.6A. 90W

Industrial POE adapter with power input up to 90W and with integrated POE.More information

Producer

PROCET

Code

00070205

Availability

Availability in stores

Order

Your price exc. VAT

91.25 EUR exc. VAT

VAT

21%

Your price inc. VAT

110.41 EUR inc. VAT

Ask for a better price

Description

PoE adapter Procet PT-PSE106GBRN-10 is an industrial solution for powering the most demanding network elements using passive PoE with power consumption of up to 90 W (power on all wires) and integrated surge protectors up to 6 kV . In addition, this adapter supports 1 / 2.5 / 5 / 10G Ethernet , making it suitable for powering high-throughput backbone components or, for example, motor-operated PTZ cameras.

Thanks to the compact size, it is not a problem to simply place the device on a mounting plate in the cabinet or directly on the wall. The package includes a connecting cable with an EU terminal.

Features:

Ethernet standard: 1 / 2.5 / 5 / 10GbE NBASE-T
PoE standard: passive PoE - 4/5 (+), 7/8 (-), 3/6 (+), 1/2 (-)
Output voltage: 55 V
Output current: 1.1 A
Input voltage: 100-240 VAC / 50-60 Hz
AC input protection: 1.5 kA (8 / 20us) / 3 kV (1.2 / 50us)
Temperature range: 0 to +40 ° C
Dimensions: 146 x 66 x 34 mm
Weight: 255 g

Parameters

Physical parameters
DC Output Voltage (V)	55
Input Voltage (V)	230
Network interface (Mbps)	10/100/1000/2500/10000
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-5° až +40°C
Output Current (A)	16.4
Output Power (W)	90
Depth (mm)	146
Design	Standalone
Height (mm)	34
Weight (kg)	0.25
Width (mm)	66
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
