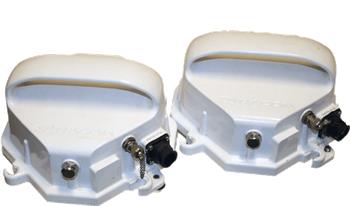

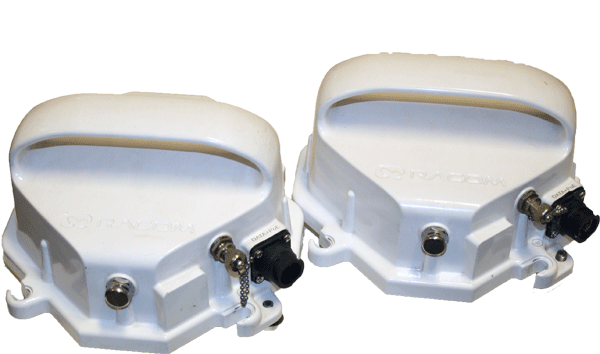

Refurbished connection RACOM RAy 17 GHz 360 Mbit/s incl. antennas

Ray 17 presents the experience of hundreds of applications of its successful predecessor Ray10 and offers a combination of unique technical parameters with an excellent price/performance ratio. Exceptional quality and reliability are manifested not only under difficult conditions, but also in the above-standard warranty provided by Ray Racom.

Ray 17 is an ideal choice for all who want to use the quality of professional RACOM connections in the free range of 17 GHz.

Advantages:

• 17 GHz, free zone
• 360 Mbps
• Each piece tested in the climatic chamber
• exceptional sensitivity
• high resistance to interference
• Low consumption <21W
• full outdoor
• ACM, ATPC
• Built-in diagnostics

reliability

• Made exclusively from components for industrial heavy-duts use
• Surge protection and electrostatic charge
• Certified temperature range-30 ° C to +55 ° C
• consistent control-each piece tested in the climatic chamber
• Exceptional reliability of communication:
  • high sensitivity of the receiver
  • -96 dbm/4.9 Mbps/qpsk/3.5 MHz
  • -81 dbm/110 Mbps/16qam/40 MHz
  • -76 dbm/204 Mbps/32QAM/56 MHz
  • -66 dbm/340 Mbps/256QAM/56 MHz
• high resistance of receiver to interference
• LDPC (Low-Density Parity-Check) Forward Error Correction Coding

key features

• the same HW for both sides of the joint
• transfer speed 360 Mbps
• widely configurable duplex spacing (60-192.5 MHz for CS 3.5 MHz)
• ACM (adaptive coding and modulation), switches without a power data power
• ATPC (automatic output power control

  other parameters

  • full outdoor unit with easy installation
  • compact dimensions (245 × 245 × 150 mm) and low weight (2.5 kg)
  • Low consumption <21W
  • output power-25 dBm to +5 dBm
  • The wide range of control allows you to use antennas of up to 120cm, while maintaining the maximum allowed EIRP.
  • 1 GB ETH. (10/100/1000), optional service 100 MB (10/100)
  • Direct assembly of the unit on antennas of different manufacturers. Flexible waveguard as a universal solution.


  diagnostics

  • web interface
  • temperature, power supply, RSS, SNR, BER and data speed are monitored and their history is available in the form of text and graph
  • SNMP including the generation of traps when you exceed the set limits
  • Built-in spectral analyzer to find free channels
  • Automatic Polarization Detection of Unit
  • constellation diagram of the received signal


  Security

  • Configuration via HTTPS, SSH
  • Permanent Real-Time Checking the Identity of the Antistanic using asymmetric keys
