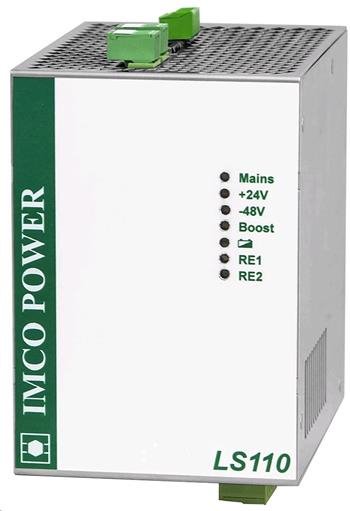

SOURCE LS110.HS 48025

The backup source of the LS110.HS, with 150 W power, is used for backed power supply 48 in the device. It has a changer built with the most advanced energy conversion technology with regard to maximum efficiency.More information

Producer

IMCO POWER

Part No.

EV002926

Code

00032000

Warranty

24 Month

Ask for a better price

Description

Backup source LS110.HS 48025, in DIN molding , with output voltage 48 (55.2) in . The total power of the source is 150 W . In the event of a network power failure, the connected battery ensures unloading the load power . After the power recovery, the source ensures the battery speed of the battery for its full capacity. The charging voltage is temperature-compensated.

LEDs on the front panel signal the status of the network of output voltages, quick charging and battery status. Remote signaling indicates a power outage and a battery capacity drop to 1. It is possible to monitor 2 external binary signals in the same way.

The source is intended for installation on din bar . The input connection is 3-wire via a removable connector with a cross-section of the wires up to 2.5mm2. Connecting the outputs of the source, relay, battery and the source signaling is via removable connectors with a cross-section of wires up to 2.5mm2.

Electric safety standards: STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022

Package Contents: Temperature CELL, Power cable for device with input power supply 100-230V ~ 50/60Hz (in case of sources with this option).

Parameters

Ethernet parameters
Battery charging current	2 A
DC Output Voltage (V)	55.2
DIN rail mounting	Yes
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, SNMP
Output Current (A)	2.5
Power consumption (W)	150
Rack mounting	Ne
Remote signalling	Výpadek sítě, Kapacita AKU <1/2, SNMP
SNMP	Yes
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	134
Design	DIN rail
Efficiency (%)	93
Height (mm)	128
Odpojovač baterie (V)	42
Operating Temperature	-25°C až 50°C
Weight (kg)	0.7
Width (mm)	100
Powering
PoE	No
Typ zdroje	Zálohovaný
