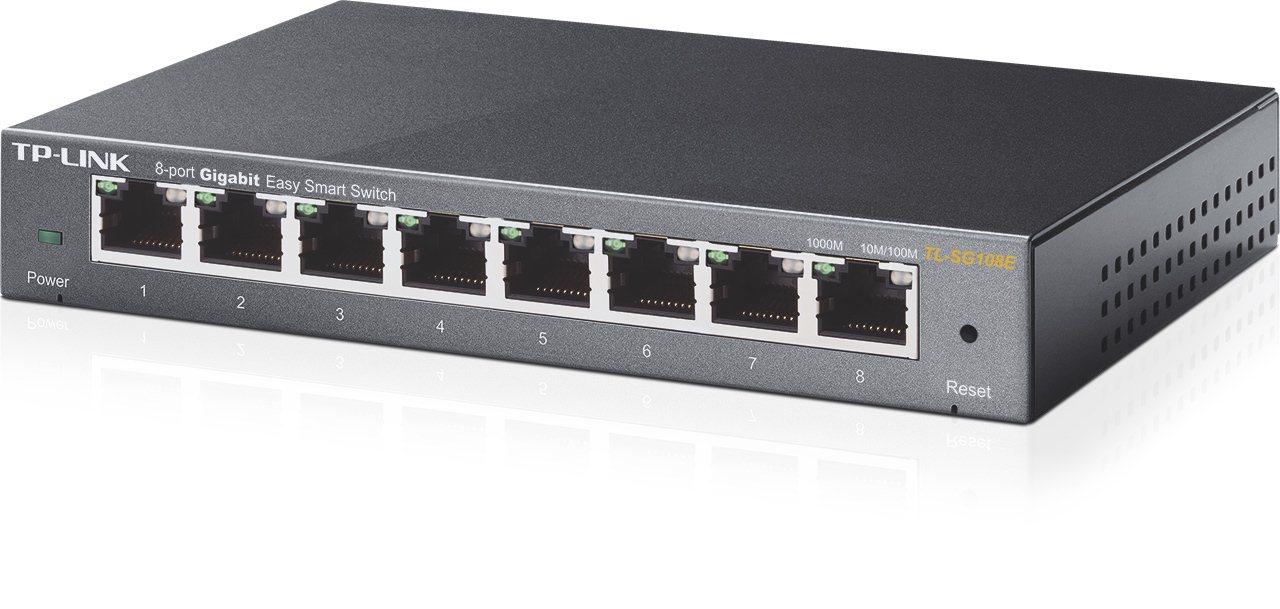

Switch TP-Link TL-SG108E smart 8x GLan

8 port gigabit switch TP-Link TL-SG108E It contains a number of advanced features that will speed up your network and reduce the risk a minimum of network attack. It also allows to create virtual networks (VLAN) in the 802.1Q standard that ensures backward compatibility I with equipment from other manufacturers. It is also possible to set in switches Priorities either for individual ports or even for individual devices meeting the standard 802.1p.

Advantages:

Instant transfer of large files
Innovative energy saving technology will save up to 75# i6per# consumption
IEEE 802.3x control ensures reliable data transmissions
JUMBO 16K framework improves performance in the transmission of bulky data
Effective network monitoring through port mirroring functions, Prevention of loops and cable diagnostics
Data flow control according to ports and tags allows smooth operation sensitive to delay
Rich VLAN functions increase network security through segmentation operation
IGMP Snooping optimizes multicast applications
With a simple smart configuration tool, you can centrally managed All simple smart switch Easy Smart

parameters:

Standards and Protocols: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Interface: 8 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

network media:

10base-T: UTP CATEGOY 3, 4, 5 CABLE (maximum 100m) EIA/TIA-568 100, STP (maximum 100 m)
100base-TX: UTP CATEGORY 5, 5E CABLE (maximum 100m) EIA/TIA-568 100, Stp (maximum 100 m)
1000Base-T: UTP CATEGORY 5, 5E, 6 OR ABOVE CABLE (maximum 100m) EIA/TIA-568 100, STP (maximum 100 m)

Dimensions: 158 x 101 x 25 mm
Fan: No
Power Supply: 100-240 in AC, 50 /60 Hz

Power:

Switching Capacity: 48 Gbps
Mac Address Table: 8 K
Packet Buffer Memory: 2 MB
Packet Forwarding Rate: 7.4 MPPS
Jumbo Frame: 16 kb

Quality of Service:

Support Port Based/802.1P Based Priority
Support 4 Priority Queues
Rate limit
Storm Control

L2 Function:

IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN: Supports up to 32 Vlans Simultaneously (Out of 4K VLAN IDS), MTU/Port/TAG VLAN
Transmission Method: Store-and-Forward
Certification: FCC, Ce
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ Windows 7 or Windows 8, Mac® OS, Netware®, Unix® Or Linux

Package content:

TL-SG108E
Power cable
Installation Manual
Cd
Rubber legs
