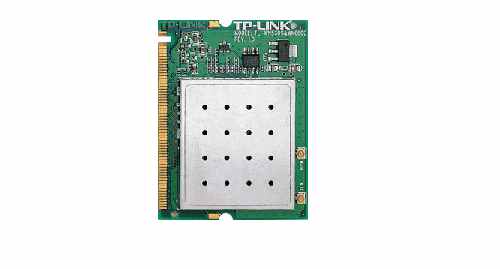

TP-LINK TL-WN562AG Wireless mini PCI 2.4/5 GHz

The TP-LINK TL-WN562AG is a mini-PCI-based wireless network card designed for notebook motherboards.
Its advantage over standard Wi-Fi connectivity cards is to support 802.11a operating in a less-favored 5GHz frequency band with a 54 Mbit/s transmission rate.
Of course, support for the 2.4GHz 802.11b/g standards is also a matter of course.
This model is characterized by the so-called TP-Link Extended Range WLAN technology, which up to 9 times increases the Wi-Fi signal range to 200 m inside and up to 830 m in the outdoor environment.
You can use the card in both Ad-hoc and Infrastructure networks.
Network traffic itself will be under the control of security standards including WPA2-PSK with TKIP protocol dynamically changing keys and AES encryption standard.
The card will work under Microsoft Windows 2000, XP, and Vista operating systems.Parameter table:
------------------
Sensitivity: max a:-88 dBm, b:-90 dBm, g:-88 dBm
Frequency: 2.4, 5 GHz
Chipset: Atheros 5006X
Max.
output power: 16 dBm
Modulation: DSSS, OFDM
Standards: 802.11a/b/g
Operating mode: AP, Client, Ad-HOC
Supported OS: MikroTik RouterOS, Windows, Linux
Operating temperature: 0-40 ° C
Baud rate: 11, 54 Mbps
Power regulation: yes (Mikrotik, STAR-OS, StarV3)
Interface: miniPCI
Compliance: FCC, CE
Consumption: 430 mWEncryption: WEP 64, WEP 128, WEP 152, WPA, WPA2, 802.1X
Output to ext.
antenna: 2 x U-FL male
Weight: 0.012 kg
