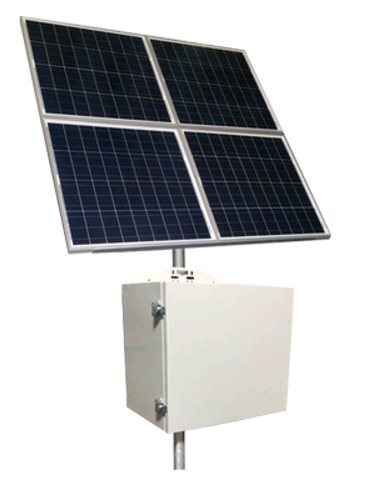

Tycon RemotePro RPSTL48-100-320

properties:

• Completely outdoor power system for power supply without network availability
• weather resistant outdoor cabinet with up to 400Ah batteries
• cabinet can be mounted on wall or mast
• powerful maintenance-free batteries
• completely traced
• temperature controlled ventilation

Application

• Powering access and retraction wireless points
• Lighting of remote places
• Camera systems
• Backup power

Description
The APSLT RemotePro outdoor power supply series is developed for deployment on applications requiring power in places without connection to the network. The ventilated outdoor box is sufficiently spacious for the location of user equipment-19"1U is integrated as well as multiple DIN mounting.
All cabinets are secured and are closed with blocked latch for greater safety. The cabinet can be provided with locks mounted by the user.
MONE cabinets are mounted on a wall or column using the supplied mounting system. The mast diameter can be up to 280mm.
High quality solar panels have 25 years of performance warranty. The 320W board can be mounted on a column or wall using the enclosed mounting system. 500W and 1000W board systems coming up with a mounting system that includes rods and anchors to anchor the flange to the foundation. The 48V battery systems are a conpensable charger with integrated monitoring and 7 port POE switch. The output is switched between 24V/48V using a web interface or SNMP. The 12V/24V battery system is available with a 20A solar controller. The cabinets have 3 CAT5 bushings, antenna coaxial cable/connectors or other cables. The cabinet contains a thermostatically controlled fan that automatically closes when the temperature exceeds 45 ° C.
Batteries are used by AGM maintenance-free, which have a wide temperature range and offer a large discharge power. The estimated battery life is over 5 years. These systems are supplied with all battery connection to the controller and outdoor full-fledged cables for connecting solar panels.
