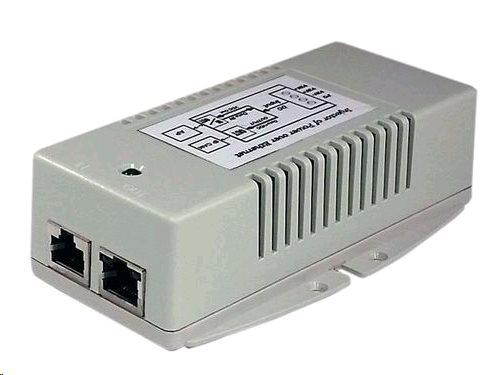

Tycon System TP-DCDC-1248Dx2, inverter with 2x PoE, 12V DC/56V DC, 21W

The DCDC series of converters with integrated PoE port is the ideal solution for applications solved by DC power. Thanks to the input range of 10-15V and double (redeemed) insulated power input are suitable for battery and DC systems.

Thanks to the choice of output voltage, the Tycon Power System covers a complete range of wireless devices including microwave connections, IP cameras or IP phones. According to the product, the output voltage can be selected by standardized 802.3af/at or only passive injector (for UBNT/microtics units, etc.)

DC converters are made in industrial standard and their operation is intended for high temperature environments.

properties:

• Input voltage 10-15VDC, output voltage 48V 802.3af/at
• Compatible with 802.3af/at
• double supply inputs for connecting 2 power sources (redeemed power supply)
• Integrated POE Vaper
• Ochraa against short-circuit, overvoltage
• produced in industrial standard (high operating conditions)
• Compact Dimensions
• 2 powered ports, each 21W (42W total)



  Use:

• 12V battery systems
• Wireless connection
• Powering IP phones, cameras
