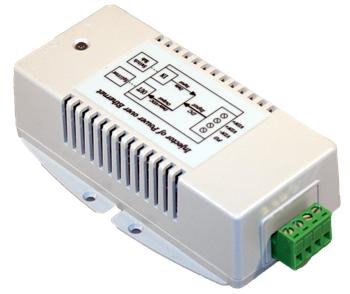

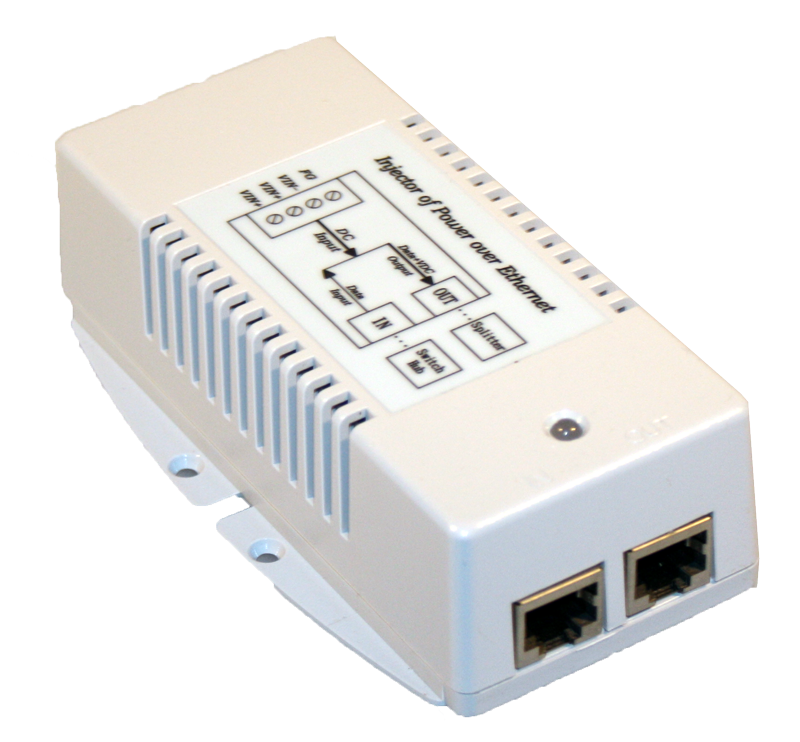

Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W

Compare Facebook Set Watchdog

Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W

Name: Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W
Brand: TYCON Power
SKU: 49705
Price: 104.01 EUR
Availability: InStock

Tycon TP-DCDC-2448G-HP is an HP voltage converter with passive PoE output. Input voltage 18 - 36VDC is regulated to 56V / 1A. The power supply has two isolated inputs for redundant power supply. Usage: 12V / 24V battery systems; Wireless access points ...More information

Producer

TYCON Power

Part No.

TP-DCDC-2448G-HP

Code

00070283

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

85.96 EUR exc. VAT

VAT

21%

Your price inc. VAT

104.01 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-2448G-HP is an HP voltage converter with passive PoE output. Input voltage 18 - 36VDC is regulated to 56V / 1A. The power supply has two isolated inputs for redundant power supply.

Usage:

12V / 24V battery systems

Wireless access points and client stations

Security cameras, IP phones

Specifications:
Type:	TP-DCDC-2448G-HP
Input voltage:	18 - 36 VDC
Output voltage:	56V passive PoE - 4.5 (+), 7.8 (-)
Input / output connector:	Shielded RJ45
Output current (max.):	1A
Output power:	50W
Operating consumption:	1W
Efficiency (min.):	75%
EMC standard:	FCC Class B EN55022 Class B
Operating temperature:	-30 ° - + 60 ° C
Dimensions (mm):	125 x 75 x 38
Weight (g):	300

Parameters

Physical parameters
DC Output Voltage (V)	56
Input Voltage (V)	24
Local signalling	LED
Network interface (Mbps)	10/100/1000
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Operating Temperature	-40°C až +70°C
Output Current (A)	0.9
Output Power (W)	50
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
