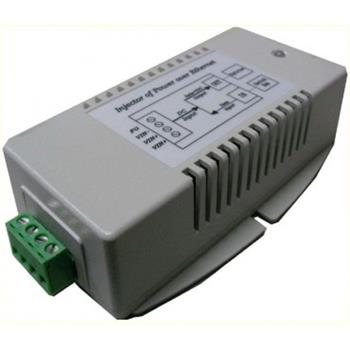

Tycon System TP-DCDC-4848G-HP, inverter with PoE, 48V DC/56V DC, 50W

Tycon TP-DCDC-4848G-HP is HP voltage converter with passive Poe-out output (PIN 4.5 +, pin 7.8-). Input voltage 36-72VDC is regulated at 56V/0.9A. The source has two insulated inputs for redundant power supply. Use: 48V battery systems; Wireless ...More information

Producer

TYCON Power

Part No.

TP-DCDC-4848G-HP

Code

00074516

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

86.63 EUR exc. VAT

VAT

21%

Your price inc. VAT

104.83 EUR inc. VAT

Ask for a better price

Description

TYCON TP-DCDC-4848G-HP is a HP voltage converter with a passive POE-out output (PIN 4.5 +, PIN 7.8-). Input voltage 36-72VDC is regulated at 56V/0.9A. The source has two insulated inputs for redundant power.

Use:

48V battery systems
wireless access points and client stations
security cameras, IP phones

Parameters

Physical parameters
DC Output Voltage (V)	56
Input Voltage (V)	48
Local signalling	LED
Network interface (Mbps)	1000, 10/100/1000
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-30° až +60°C
Output Current (A)	0.9
Output Power (W)	50
Remote signalling	Ne
Depth (mm)	85
Design	Standalone
Efficiency (%)	75
Height (mm)	36
Weight (kg)	0.134
Width (mm)	76
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
