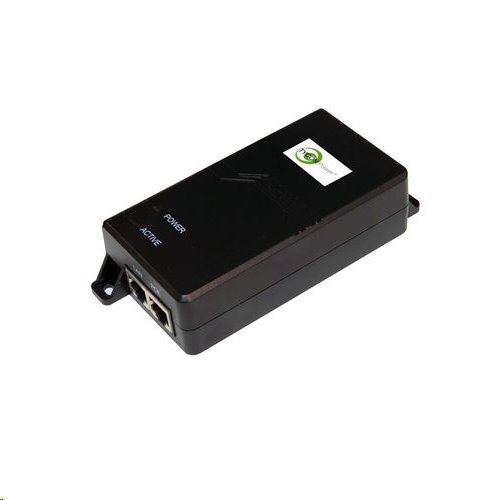

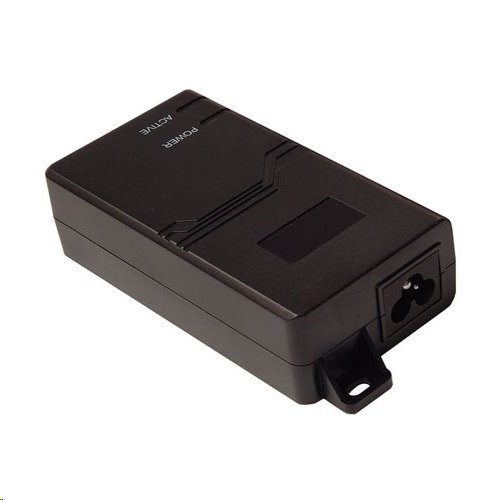

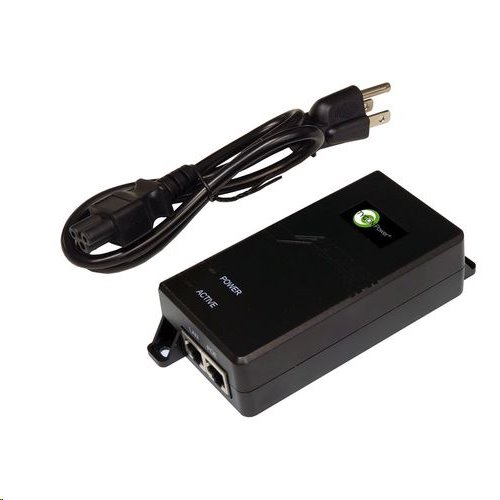

Tycon System TP-POE++10G, 10G PoE++ injector, 56V, 60W

Compare Facebook Set Watchdog

Tycon System TP-POE++10G, 10G PoE++ injector, 56V, 60W

More information

Producer

TYCON Power

Part No.

TP-POE++10G

Code

00070016

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

68.56 EUR exc. VAT

VAT

21%

Your price inc. VAT

82.96 EUR inc. VAT

Ask for a better price

Description

TP-POE++10G is a high-performance active PoE++ injector from the TYCON Power brand supporting the widespread 802.3af/at standards strong>.
The power of the PoE injector is up to 60 W.

Key Features:

Data transfer speed 10/100/1000/10000 Mb

Compact dimensions

Shielded RJ45 connectors

Support for 802.3af/at standards

Parameters:

Name:	Value:
Input voltage:	100-240 VAC 50/60 Hz
PoE output voltage:	56 VDC +/-2 V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-)
Maximum load:	1 A (56 W)
Effectiveness:	Min. 84%
Empty subscription:	Max. 1 W
Baud rates:	10/100/1000/10000 Mb
Operating temperature:	-20 °C - +50 °C
Operating humidity:	5 - 90% (non-condensing)
Connectors:	2x RJ45 (shielded)
Cable compatibility	CAT6a 10G - 55 m; CAT6e 10G - 80 m, 5G - 100 m
Protection:	Against short circuit, overcurrent, overvoltage and electrostatic discharge (8 kV)
Weight:	230 g
Dimensions W x H x D (mm):	138.5 x 62.5 x 35.3

Parameters

Physical parameters
DC Output Voltage (V)	56
Input Voltage (V)	230
Network interface (Mbps)	10/100/1000/10000
Operating Temperature	-20° až +50°C
Output Current (A)	1
Output Power (W)	60
Depth (mm)	138.5
Design	Standalone
Efficiency (%)	84
Height (mm)	35.3
Weight (kg)	0.23
Width (mm)	62.5
PoE parameters
Number of PoE ports	1
PoE standard	802.3at
Powering
PoE	Yes
Typ zdroje	PoE
