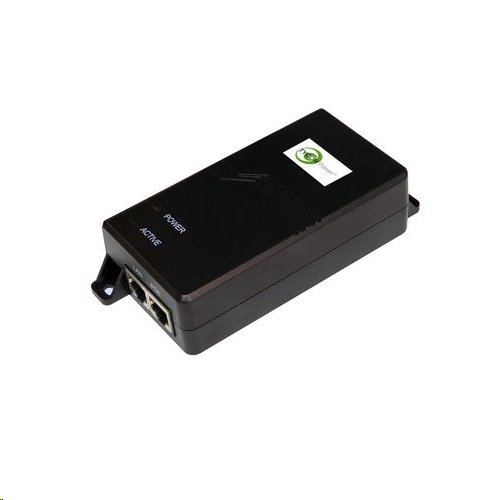

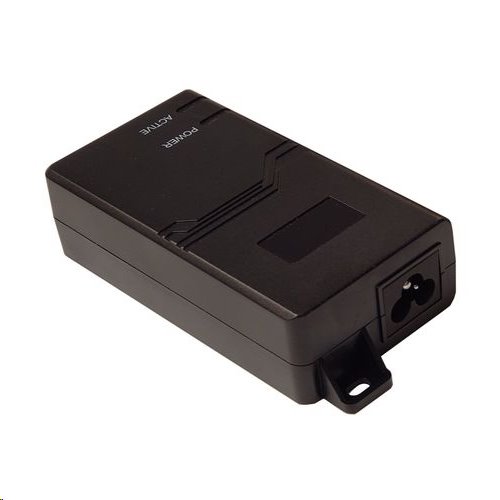

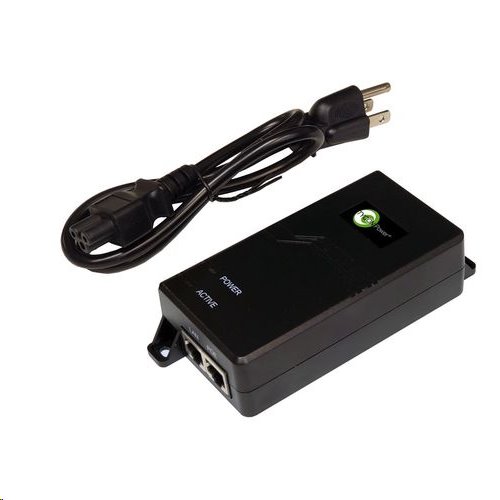

Tycon System TP-POE+10G, 10G PoE+ injector, shielded, 53V, 30W

Compare Facebook Set Watchdog

Tycon System TP-POE+10G, 10G PoE+ injector, shielded, 53V, 30W

Effectiveness: Cable compatibility More information

Producer

TYCON Power

Part No.

TP-POE+10G

Code

00070015

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

65.32 EUR exc. VAT

VAT

21%

Your price inc. VAT

79.03 EUR inc. VAT

Ask for a better price

Description

TP-POE+10G is a powerful active PoE+ injector from Tycon Power supporting widespread standards 802.3af/at .
The power of Poe Insktor is to 30 W .

key features:

Data transfer speed 10/100/1000/10000 MB

compact dimensions

shielded RJ45 connectors

Support of standards 802.3af/at

parameters:

Title:	value:
Input voltage:	100-240 VAC 50/60 Hz
Output PoE voltage:	53 VDC +/-2 V, 802.3AF/AT POE, MODE A (PINS 1,2+ 3,6-)
Maximum load:	0.6 and (31.8 W)
Efficiency:	min. 78#i6per#
No-load collection:	Max. 1 w
transfer rates:	10/100/1000/10000 MB
Operating temperature:	-20 ° C-+50 ° C
Operating Moisture:	10-90# i6per# (non-contentment)
Connectors:	2x RJ45 (shielded)
Cable compatibility	Cat6a 10g-55 m; Cat6e 10g-80 m, 5g-100 m
Protection:	Against short-circuit, overcurrent, overvoltage and electrostatic discharge (8 kV)
Weight:	210 G
Dimensions W x H x H (mm):	138.5 x 62.5 x 35.3

Parameters

Ethernet parameters
DC Output Voltage (V)	53
Input Voltage (V)	230
Output Current (A)	0.6
Output Power (W)	30
Network interface (Mbps)	10/100/1000/10000
Physical parameters
Depth (mm)	138.5
Design	Standalone
Efficiency (%)	78
Height (mm)	35.5
Operating Temperature	-20° až +50°C
Weight (kg)	0.21
Width (mm)	62.5
PoE parameters
Number of PoE ports	1
PoE standard	802.3at
Powering
PoE	Yes
Typ zdroje	PoE
