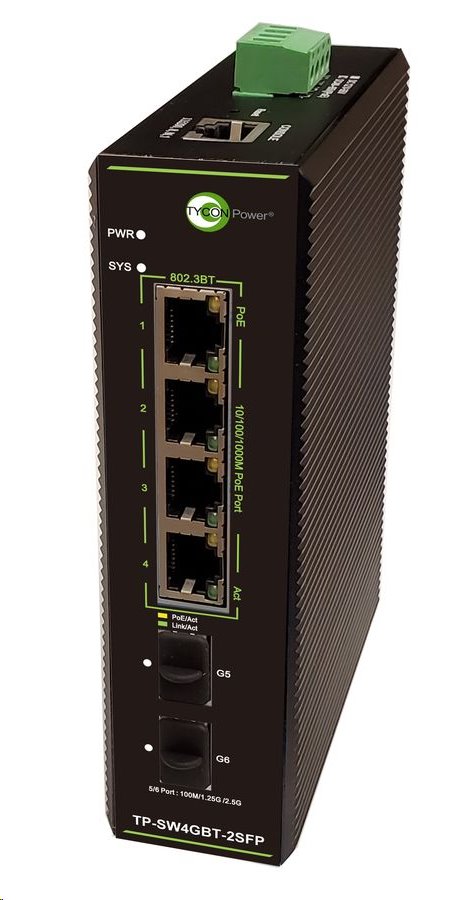

Tycon System TP-SW4GBT-2SFP, industrial PoE++ switch, 4x 1G Ethernet, 2x 2.5G SFP, 90 W

TP-SW4GBT-2SFP by the manufacturer Tycon Power is an industrial PoE ++ switch with 802.3af/AT/BT standards.

Switch is equipped with four PoE ++ (802.3bt 90 W) connectors and two SFP 2.5G shafts. PoE ports are controlable through the web user interface . CLI, Telnet, SSH or SNMP protocols can also be used. In the interface it is also possible to set and manage the Layer 2+ switch features such as QoS, Mac Management or Port Management.

key features:

4x POE ++ (802.3bt 90 W)

2x SFP 2.5G

operation in industrial conditions

managing through a web interface or console port

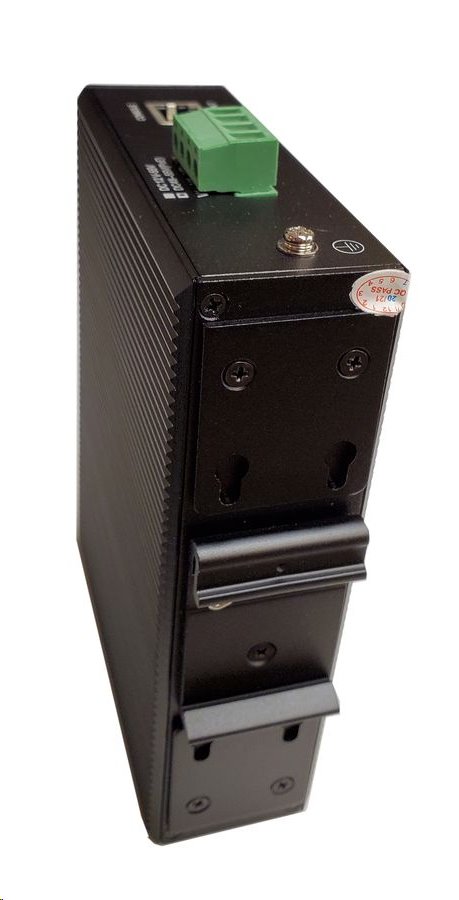

Installation on the DIN Rail or on the Wall

parameters:

Title:	value:
interface:	4 x shielded 802.3AF/AT/BT, POE ++ (90W), 2x shielded SFP/LC 2.5G, 1x Console Port
ETH transfer rates:	10/100/1000 MB
SFP Compatibility:	155M/1.25G/2.5G, SM/mm
Input power:	VIN 48VDC TO 57VDC ON DUAL INPUT WIRE TERMINAL (MAX WIRE SIZE 12AWG)
own device collection:	Max. 5 W
Switching Capacity:	18 Gbps
Packet Forwarding Rate:	13.39 Mbps
RAM/FLASH:	128 MB/16 MB
Operating temperature:	-40 ° C-+85 ° C
Operating Moisture:	5-95# i6per# (non-contentment)
Weight:	600 G
Dimensions W x H x H (mm):	155 x 117 x 38
