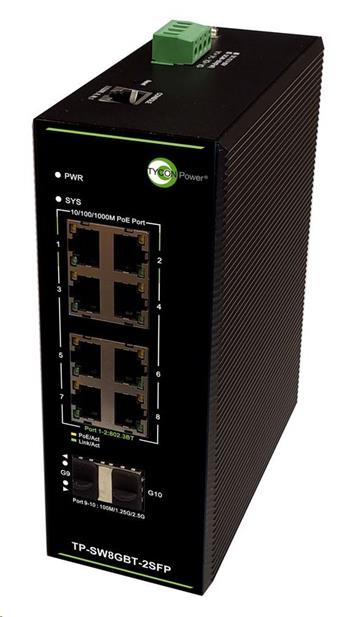

Tycon System TP-SW8GBT-2SFP, industrial PoE++ switch, 8x 1G Ethernet, 2x 2.5G SFP, 90 W

TP-SW8GBT-2SFP by the manufacturer Tycon Power is an industrial PoE ++ swap with 802.3af/AT/BT .

Switch is equipped with two PoE ++ (802.3BT 90 W) connectors, other six POE+ (802.3af/AT 30 W) and two SFP 2.5G shafts. PoE ports are controlable through the web user interface . CLI, Telnet, SSH or SNMP protocols can also be used. In the interface it is also possible to set and manage the Layer 2+ switch features such as QoS, Mac Management or Port Management.

key features:

2x POE ++ (802.3bt 90 W), 6x POE+ (802.3AF/AT 30 W)

2x SFP 2.5G

operation in industrial conditions

managing through a web interface or console port

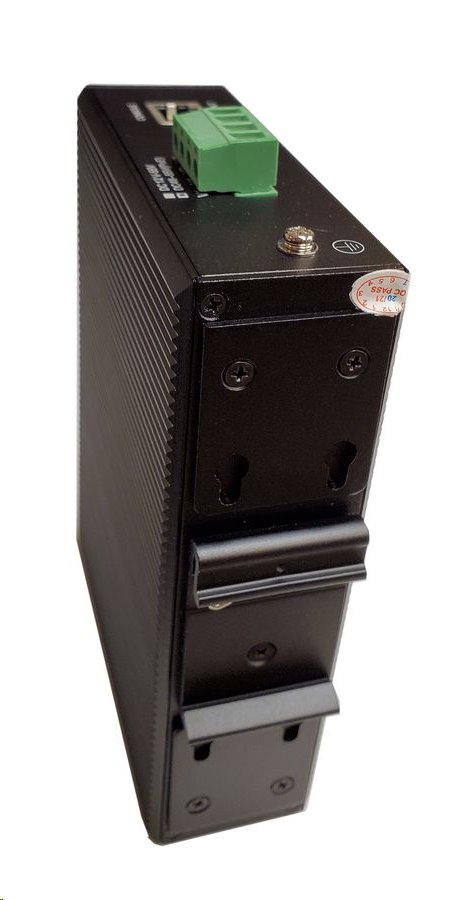

Installation on the DIN Rail or on the Wall

parameters:

Title:	value:
interface:	2 x shielded 802.3AF/AT/BT, 6x shielded 802.3af/at, 2x shielded SFP/LC 2.5G, 1x Console Port
ETH transfer rates:	10/100/1000 MB
SFP Compatibility:	155M/1.25G/2.5G, SM/mm
Input power:	VIN 48VDC TO 57VDC ON DUAL INPUT WIRE TERMINAL (MAX WIRE SIZE 12AWG)
own device collection:	Max. 5 W
Switching Capacity:	26 Gbps
Packet Forwarding Rate:	19.34 Mbps
RAM/FLASH:	128 MB/16 MB
Operating temperature:	-40 ° C-+85 ° C
Operating Moisture:	5-95# i6per# (non-contentment)
Weight:	850 g
Dimensions W x H x H (mm):	173 x 137 x 61
