UBNT airFiber 60 Long-Range, 60 GHz
Compare Set Watchdog

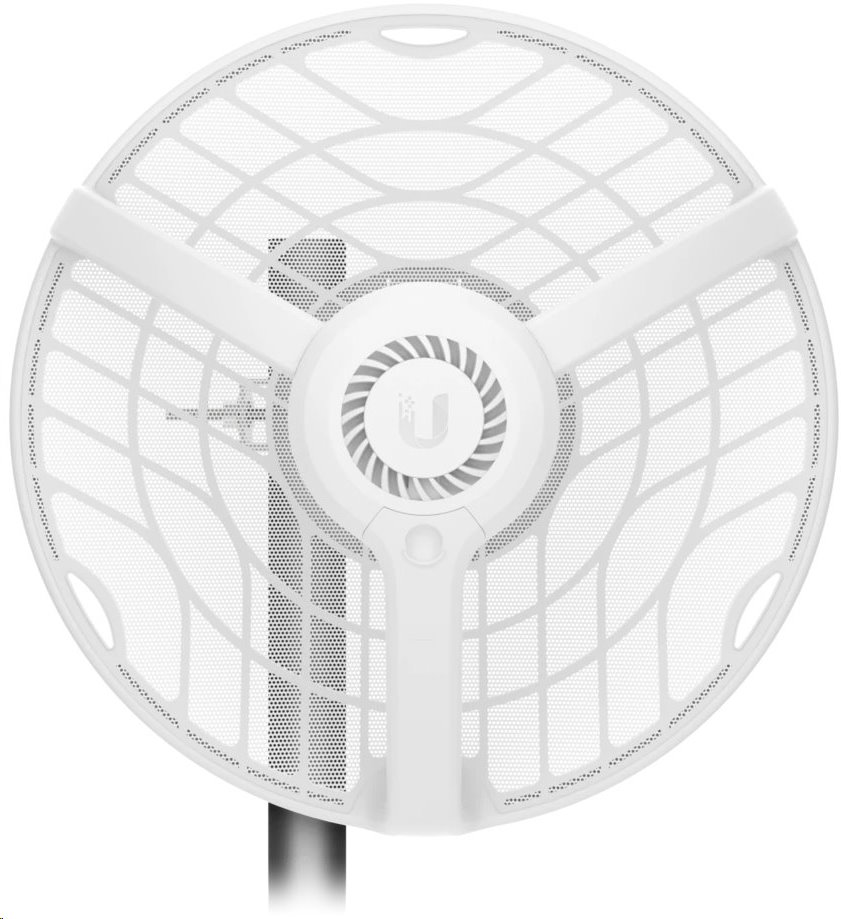

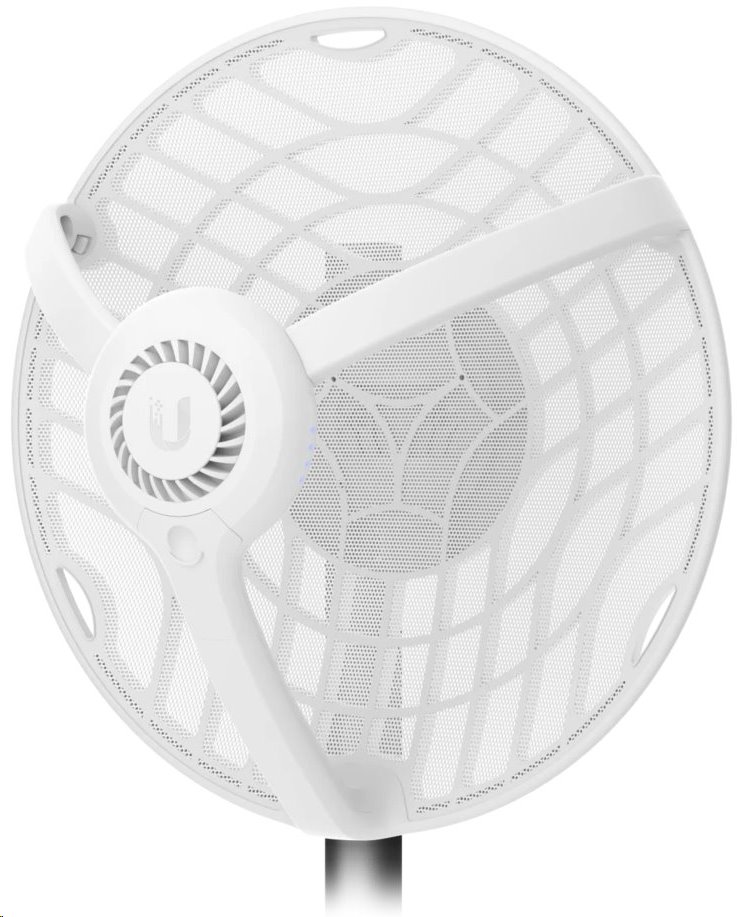

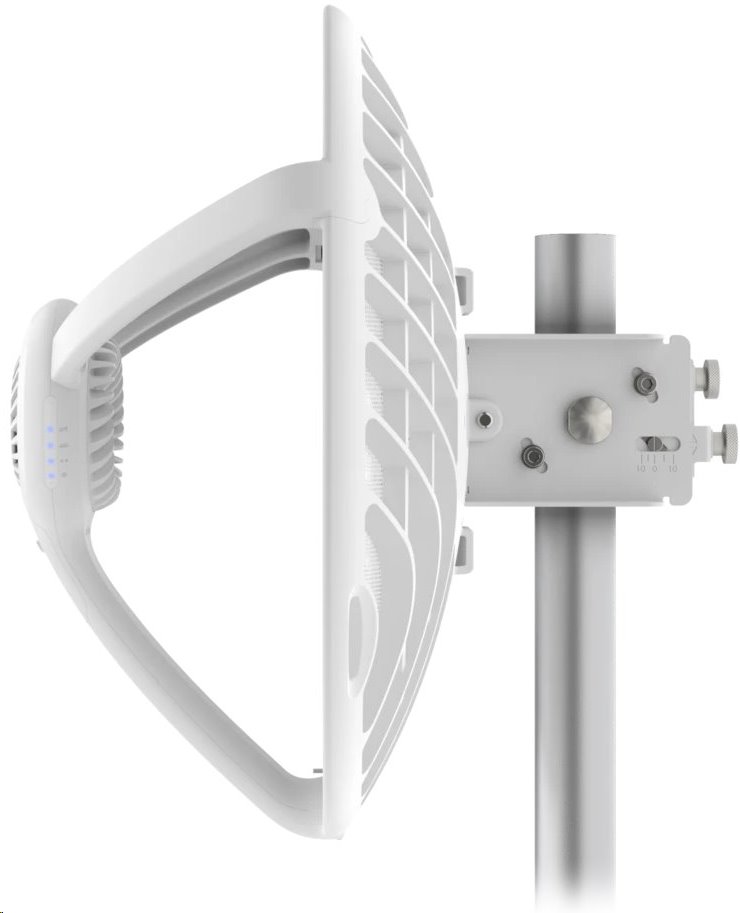

UBNT airFiber 60 Long-Range, 60 GHz

Ubnt Airfiber 60 Long-Range (AF60-LR) is 60GHz Point-to-Point (PTP) link. It is a powerful outdoor unit allowing communication at a speed of up to 1.8 Gbps per long distance.More information

Producer
  Ubiquiti

Part No.


AF60-LR


Code
 00070380
Warranty
24 Month
Your price exc. VAT
249.05 EUR exc. VAT
VAT
21%
Your price inc. VAT
301.35 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    Ubnt Airfiber 60 Long-Range (AF60-LR) is 60GHz point-to-point (PTP) link. It is a powerful outdoor unit allowing communication at a speed of up to 1.8 Gbps per long distance.

    equipment and design

    Airfiber 60 is a very robust unit composed of a metal bracket, a mesh parabolic antenna with a 38 dBI and 3 plastic legs holding a gigabit ethernet port with a passive 48 in power and GPS module.

    For easy setting, the unit is also equipped with Bluetooth technology.

    Package content

    • device
    • mast bracket with precise role (for masts 28 to 50 mm)
    • Gigabit PoE power adapter 48 V/0.65 and
    • power cable

    Parameters

    Antenna gain 60 GHz (dBi) 38
    Bluetooth Yes
    Consumption 18
    Encryption WPA2 AES
    Management Yes
    Network interface (Mbps) 10/100/1000
    Operating systém airOS GP
    Operating Temperature -40° až +60°C
    Platforms UISP
    Počet CPU jader 4
    Processor ARM Cortex A7
    Properties GPS modul
    RAM 256 MB
    Vysílací výkon 60 GHz [dBm] 21
    XPIC No

    Ethernet parameters

    LAN port speed 1 Gbps
    Number od RJ45 ports 1

    Physical parameters

    Depth (mm) 360
    Design Outdoor, Na stožár
    Height (mm) 413
    Počet LAN portů 1
    Weight (kg) 2.7
    Width (mm) 413

    Powering

    Power Supply PoE

    Wireless parameters

    Frequency 60 GHz
    Operating mode Point-to-point
    WIFI transfer rate - 60 GHz [Mbps] 1800
    All parameters Less parameters
