UBNT airFiber 60 Xtreme-Range, 60 GHz
Compare Set Watchdog

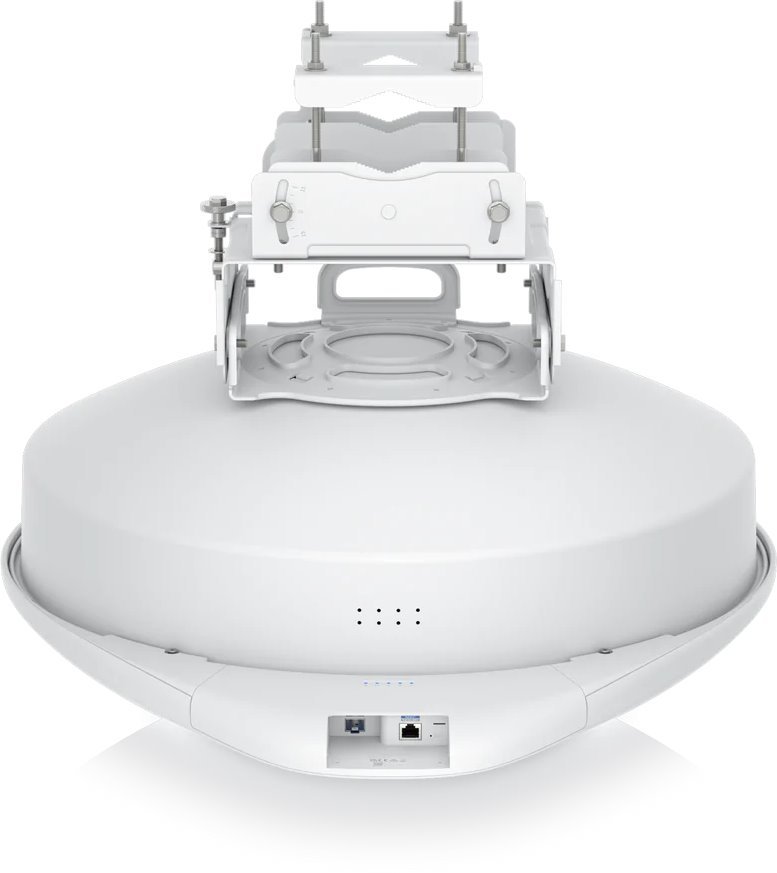

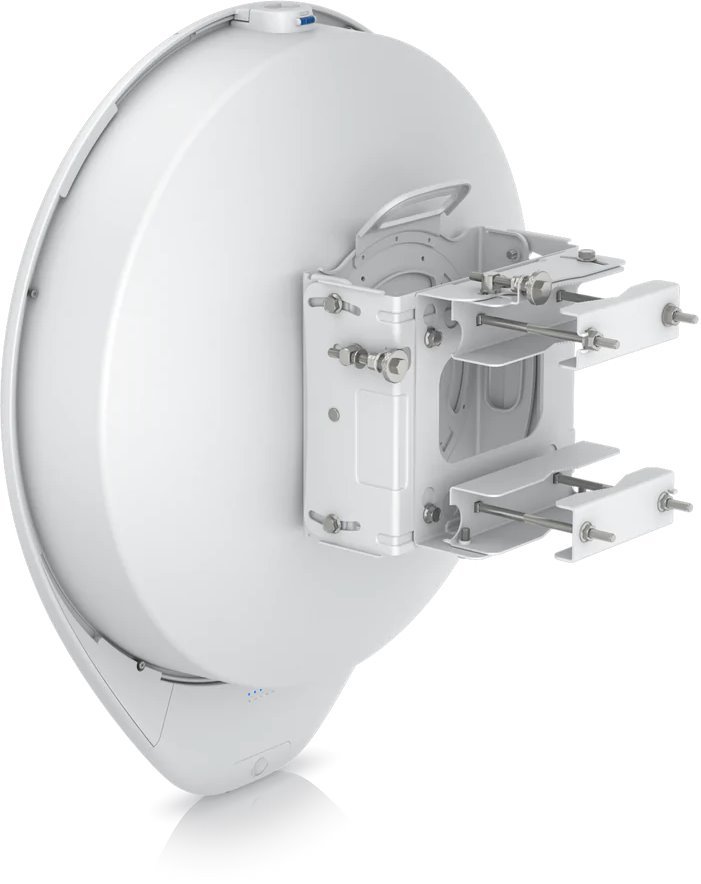

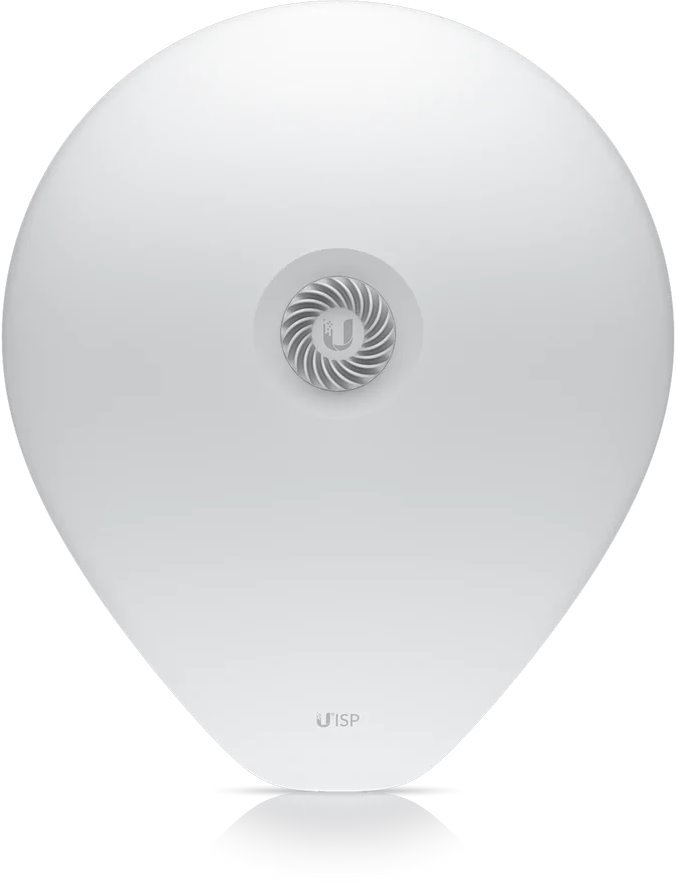

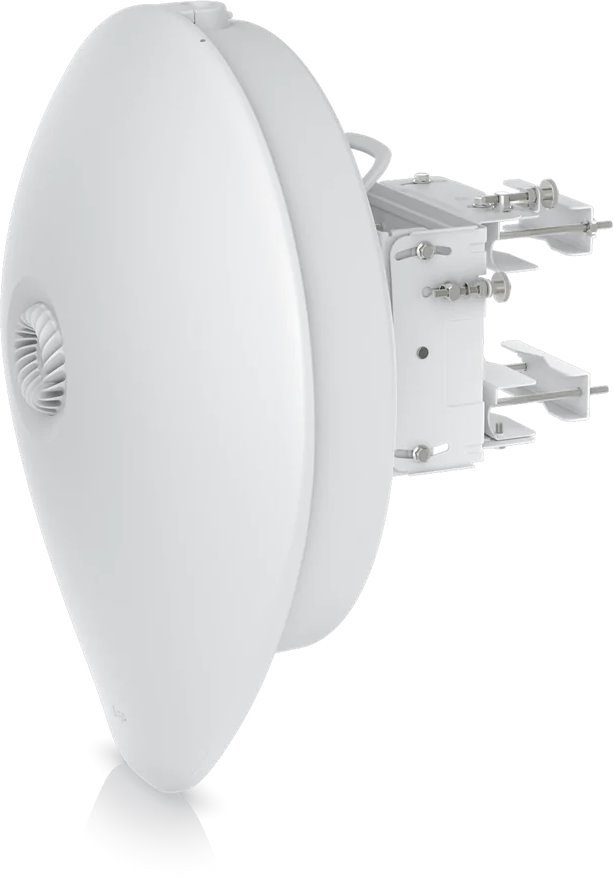

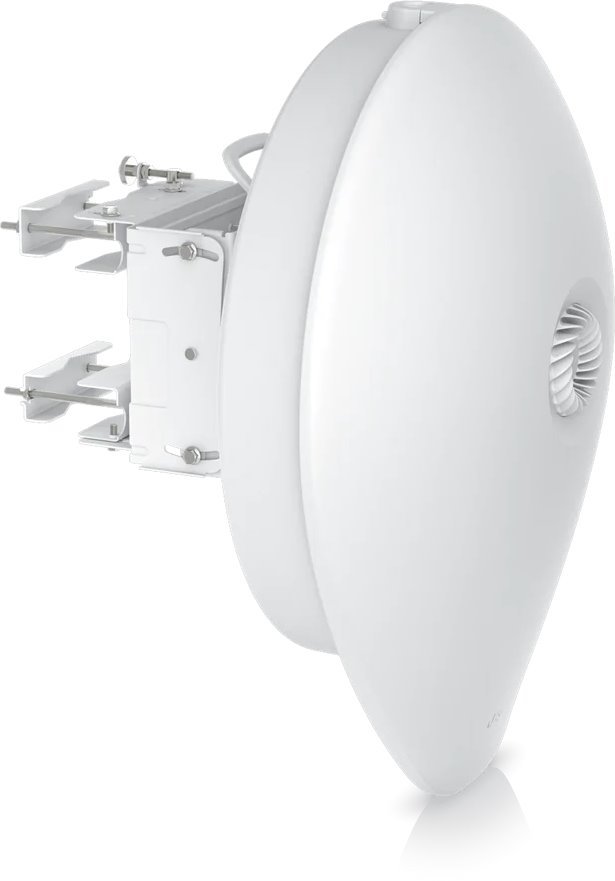

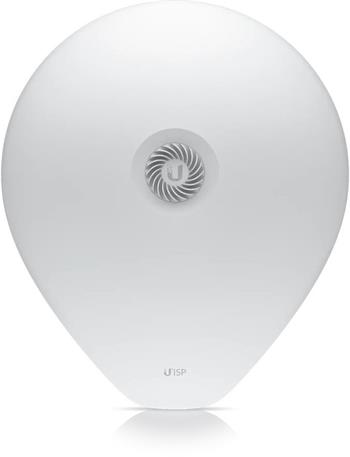

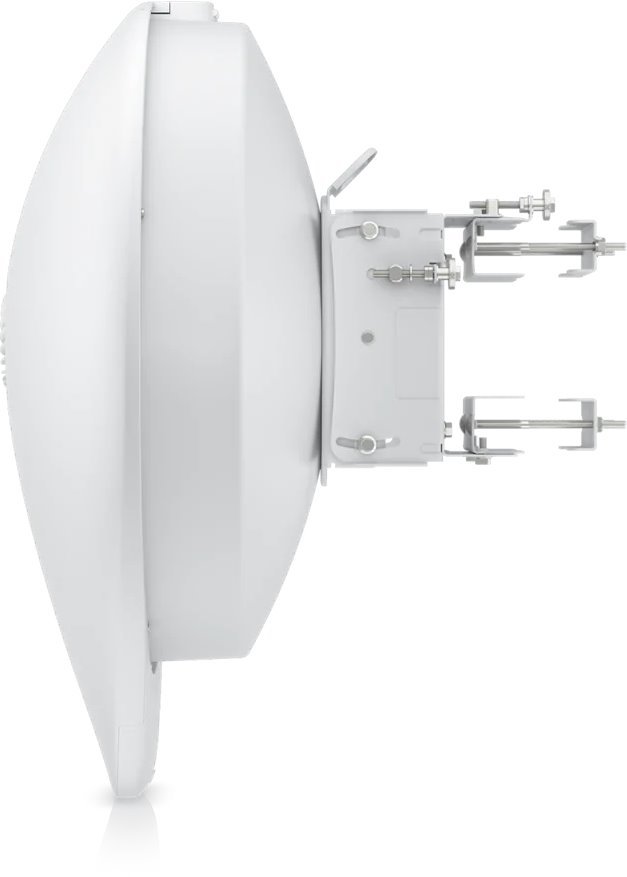

UBNT airFiber 60 Xtreme-Range, 60 GHz

UBNT Airfiber 60 Xtreme-Range (AF60-XR) is a 60GHz PTP device with a permeability of up to 2.5 Gbps. Thanks to a long range, it is ideal for Internet service providers who want to maximize the speed of connecting points with a cost-effective device.More information

Producer
  Ubiquiti

Part No.


AF60-XR


Code
 00072008
Warranty
24 Month
Your price exc. VAT
875.41 EUR exc. VAT
VAT
21%
Your price inc. VAT
1 059.25 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    Ubnt Airfiber 60 Xtreme-Range (AF60-XR) is 60GHz PTP with a device with up to 2.5 Gbps . Thanks to a long range, it is ideal for Internet service providers who want to maximize the speed of connecting points with a cost-effective device. The unit is equipped with a integrated GPS module and Bluetooth for easy setting using the UISP® mobile app. The equipment also includes a 5GHz deposit , which uses a parabol to receive a 5 GHz signal.
    key features:

    • Spectrum 60GHz with low disturbance
    • parabolic antenna with high profit
    • 5GHz deposit with a profit of 26 dBi
    • permeability up to 2.5 Gbps
    • 10g SGP+ port
    • built-in GPS
    • Simple Mobile Application Settings Through Bluetooth

    Package content

    • device
    • parabolic antenna
    • mast holder with precise penetration (for mast 40 to 80 mm)
    • Gigabit PoE power adapter 48 V/0.65 and
    • power cable

    Parameters

    Bluetooth Yes
    Consumption 24
    CPU - frequency (MHz) 1400
    Encryption WPA2 AES
    Management Yes
    Network interface (Mbps) 10/100/1000/10000
    Operating systém airOS GP
    Operating Temperature -40° až + 55°C
    Platforms UISP
    Počet CPU jader 4
    Processor ARM Cortex A53
    Properties GPS modul, Bluetooth, Radom
    RAM 1024 MB
    XPIC No

    Ethernet parameters

    LAN port speed 10 Gbps
    Number od RJ45 ports 1
    Number of SFP+ (10G) ports 1

    Optical parameters

    Optické rozhraní 1/10 Gbps

    Physical parameters

    Depth (mm) 383
    Design Outdoor, Na stožár
    Height (mm) 779
    Počet LAN portů 2
    Weight (kg) 13
    Width (mm) 664

    Powering

    Power Supply PoE

    Wireless parameters

    Frequency 5 GHz, 60 GHz
    Operating mode Point-to-point
    WiFi transfer rate - 5 GHz [Mbps]: 866
    WIFI transfer rate - 60 GHz [Mbps] 2500
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads2

    Datasheet.pdf Format pdf (858.8 kB) Download
    Původce instalací.pdf Format pdf (6 099.7 kB) Download
