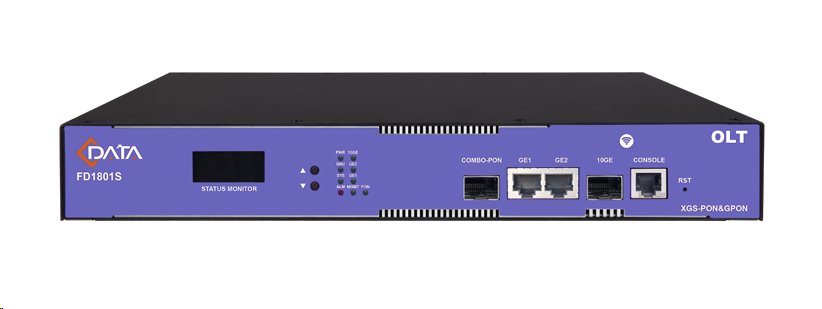

C-DATA FD1801S-C1, 1-port XGSPON/Combo OLT
C-DATA FD1801S-C1 is a powerful and spatially economical XGS-Pon &Gon &Gon (Combo) Alt solution for extension of the access network. It is 1U suitable for installation in the seagull in server rooms and compact server spaces. The unit offers 1 × Combo ...More information
FD1801S-C1
Ask for a better price
Products classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
Ing. Jan Stejskal
Product managerDownloads1
Related products7
Related products
C-DATA AS60-PG43207-CPSS7, GPON SFP C++
Gon SFP Module C-Data AS60-PG43207-CPSS7 with a transfer rate of 2.488 GB/s for gpon OLT up to 20 km transmission distance is designed to meet ITU-TG.984.2 class C ++. SC /UPC interface. ?; DFB transmitter in continuous mode 1490nm, 2.488 Gbps; ?; APD-...
exc. VAT
inc. VAT
C-DATA FD511G-F660, GPON bridge ONT, 1GE port
C-DATA FD511G-F660 is a compact but powerful xpon (Dual-Mode Gon/Epon) that unit designed for home or small office FTTH deployment. It has one optical port (Gon/EPON) and one gigabit Ethernet RJ-45 port, providing the possibility of flexible network co...
exc. VAT
inc. VAT
C-DATA FD511H-R360, GPON bridge ONT, 2.5GE port
C-DATA FD511H-R360 is a compact but powerful xpon (dual-mode gon/epon) that unit designed for home or small office FTTH deployment. It has one optical port (Gon/Epon) and one 2.5GE RJ-45 port , providing a high-capacity network connection. Thanks to fu...
exc. VAT
inc. VAT
C-DATA FD514GS1-R550, GPON ONT, WiFi 6, 4x GEth
C-Data FD514GS1-R550 is a modern and powerful Xpon ont unit for FTTH in home and smaller companies. It supports both gpon as well as Epon standards, which ensures wide compatibility with OLT of different manufacturers. Thanks to the integrated WiFi 6 (...
exc. VAT
inc. VAT
C-DATA CMPXC-N2C1, Combo SFP (GPON+XGSPON)
C-DATA CMPXC-N2C1 is a high-performance combined SFP+ OLT transceiver (Quadplexer) that supports parallel xgs-content (10 GB/s) and gpon (2.5 GB/s); WAVELENGTH DIVISION MULTIPLEXING). It allows simultaneous XGS-pon (1270/1577 nm wavelengths) and Gon (1...
exc. VAT
inc. VAT
C-DATA FD514TS3-R880, XGSPON ONT, WiFi 6, 4x GEth
C-DATA FD514TS3-R850S is a modern xgs-pon (10 GB/s) on Gateway with integrated Wi-Fi 6 (AX3000) , ideal for home or office FTTH. It allows simultaneous wireless access over 2.4 GHz and 5 GHz (total speed to 3000 Mbps ) and has four gigabit ethernet por...
exc. VAT
inc. VAT
C-DATA FD511T-R460S, XGSPON bridge ONT, 10GE port
C-DATA FD511T-R460S is a powerful xgs-pon on designed for internal deployment as an optical FTTX terminal. Supports Standart XGS-Pon (FSAN G.9807.1) with symmetrical bites 10 Gb/s down/10 Gb/s up . With 10 GBE LAN design , low consumption (; Optical Po...
exc. VAT
inc. VAT
Last visited
Description
C-DATA FD1801S-C1 is a powerful and spatially economical XGS-Pon &Gon &Gon (Combo) Alt solution for extension of the access network. It is 1U suitable for installation in the seagull in server rooms and compact server spaces. The unit offers 1 × Combo Pon Port (XGS-PON/GPON) with up to 128 onus , 2 × gigabit ports and 1 × 10 GBE (SFP+) uplink . With the support of ITU-T G.9807.1 , modern management (CLI, web, SNMP, Telnet, SSH, OMCI), high energy efficiency and optional BBU (backup batteries) is the ideal choice for Robust FTTP, Video Monitoring, Business Lan and IoT applications. A large added value is also the built-in Wi-Fi interface and LED screen for monitoring that facilitate the deployment and management of the device in the field.
Combo Pon Port (XGS-PON &GPON):
Splitting up to 1: 128 , supports up to 128 ont
Standard ITU-T G.9807.1 -xgs-pon/gpon
transfer rates:
xGS-Pon: 10 gb/s down/10 gb/s up.
gpon: 2.5 Gb/s Down/1.25 GB/s up.
uplink ports: 2 × GE RJ-45, 1 × 10 GBE (SFP+)
Management and Monitoring:
Built-in Wi-Fi , LED screen for Realtime Monitoring and easy to set up your mobile or laptop.
Support of Cli, Web, SNMP, Telnet, SSH and OMCI for comprehensive equipment and ont parameters, QoS, DBA, VLAN, ACL, RSTP, IGMP, etc.
Power and architecture:
Backplane Bandwidth to 44 Gb/s , hardware layer-2 switching at full speed.
support L2 functions: VLAN, TRUNK, ACL, QOS, Port Rate Limit, Port Isoolate, Front-Traffic Shaping.
Partial L3 Support: Static Routing, DHCP-Relay, VLANIF.
Construction, Power and Environment:
Dimensions: 312.8 × 197 × 44 mm, weight 1.95 kg.
Power: AC 100-240 V (47-63 Hz) or over 12 V/2.5 and DC adapter
consumption below 14 W
Parameters
Ethernet parameters
Optical parameters
Physical parameters
