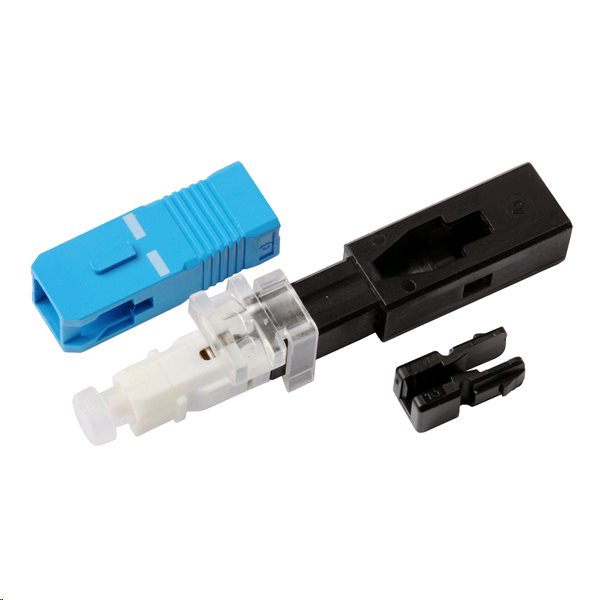

Field Installable Fast Connector (Fujikura Simplified Version)

connector assembly ; High stability ; Easy installation ; use different types of cables ; ; Features: ; ; ; Name ; Value ; ; Connector type: ; SC ; ; Polishing mode: ; UPC ; ; Fiber diameter (um) ; 125 ; Coatin...More information

Producer

Fiber Arsenal

Code

00033003

Warranty

3 Month

Availability

Availability in stores

Order

Your price exc. VAT

1.19 EUR exc. VAT

VAT

21%

Your price inc. VAT

1.44 EUR inc. VAT

Ask for a better price

Description

Connector assembly

high stability

Simple mounting

Use on different types of cables

parameters:

name	value
Connector Type:	SC
Polishing Mode:	UPC
FIBER DIAMETER (UM):	125
Coating Diameter (UM):	250
INSERTION LOSS (DB):	AVERAGE <\u003d 0.25, Maximum <\u003d 0.5
RETURN Loss:	> \u003d 40
Tensile Strength (n):	> \u003d 30
Tensile Force (n):	> \u003d 10
Re-Assembling Repeatability (DB):	<\u003d 0.3 (Re-Assemble 5 Times)
Vibration Stability (DB):	<\u003d 0.3 (Frequency: 10-50Hz, Sweep Frequency: 45 Times/min, amplitude: 0.75mm single amplitude, Time: 3 Direction, 2 Hours Separates)
Drop Stability (DB):	<\u003d 0.3 (Height: 1.5m (Calculate from the Top of Sample), 8 Times)
Repeatability (DB):	<\u003d 0.3 (10 Times Mating)
Mechanical Durability (DB):	<\u003d 0.3 (500 Times Mating)
Tensile Property (db)	<\u003d 0.3 (Cable Type 20n, Online Monitor, Cable Type 30n, No Online Monitor Time: 2min)
Vibration Stability (DB):	<\u003d 0.3 (Frequency: 10-50Hz, Sweep Frequency: 45 Times/min, amplitude: 0.75mm single amplitude, Time: 3 Direction, 2 Hours Separates)
Twist (db):	<\u003d 0.3 (Load: 15n, Speed: 10 Times/min, 200 Times)
HIGH TEMPERATURE (DB):	<\u003d 0.3 (+85 ° C, 96H, online monitor)
Low Temperature (DB):	<\u003d 0.3 (-40 ° C, 96H, online monitor)
Humidity and Heat Stability (DB)	<\u003d 0.3 (+75 ° C, 95#i6per#, 96h, online monitor)
