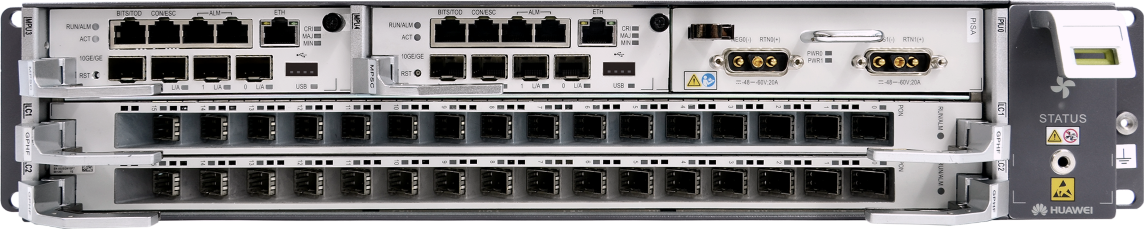

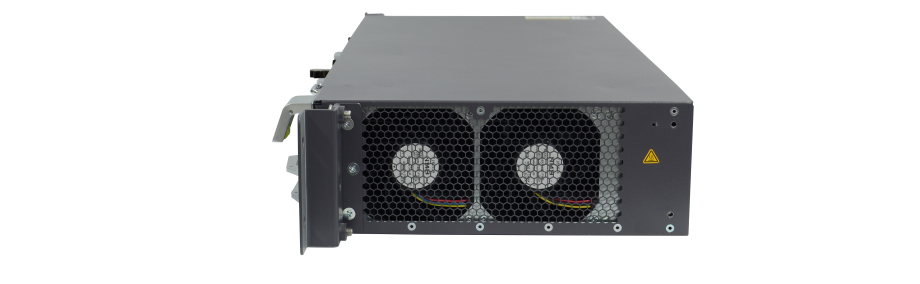

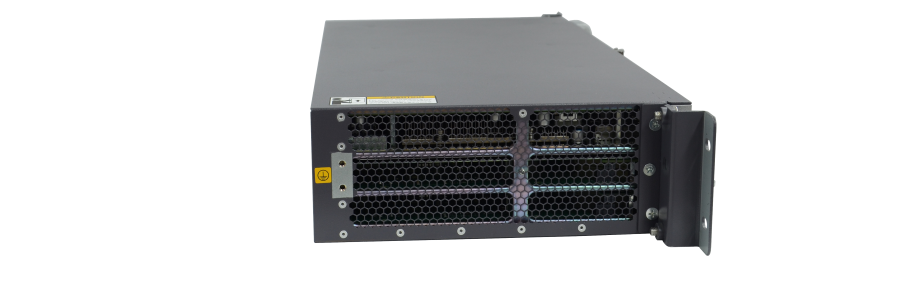

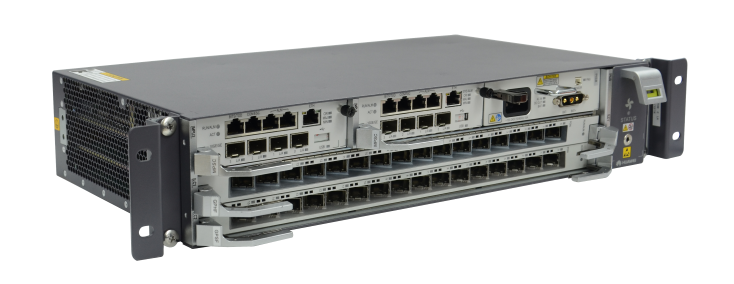

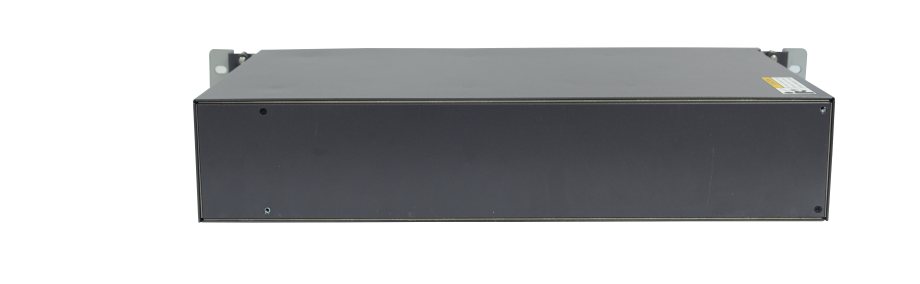

Huawei MA5800-X2 OLT chassis, official CZ distribution

The Huawei MA5800-X2 is a top-of-the-line modular alt terminal designed for Gpon or XG (S) PON Network that offers capacity to 32x xg (s) Pon port to connect client devices (Ont) and 10g SFP+ uplink ports. Client units . All this in the compact 2U Chassis with a wide working temperature range-40 to +65 ° C and preferably wide flexibility. In one chassis you can install a combination of Gon and XG (s) PON cards, or Flex-Con card allowing Gon and Xgpon to be chosen within individual SFPs. Thanks to the possibility of redundant control cards and redundant sources (AC and DC variants), the highest availability of the entire network is always ensured.

The price is only for chassis with DC power and control card, it is necessary to equip GPPP/xgpon cards or other components-contact your sales representative.


parameters:

name	value
type OLT	modular chassis
Number of Gon/xgpon ports	to 32
Number of Pot Reflect	to 16x 1/10Gbps
Max Number of Ont	4096
switching capacity	480 Gbit/s
MAC table	262143 records
Routing/ARP table	65536 records
operating temperature	-40-65 ° C
Dimensions	442 x 269 x 88.1 mm (2U profile)
Weight	10 kg
