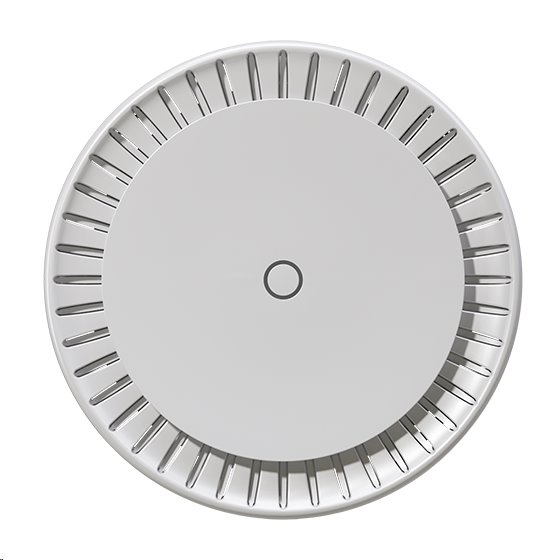

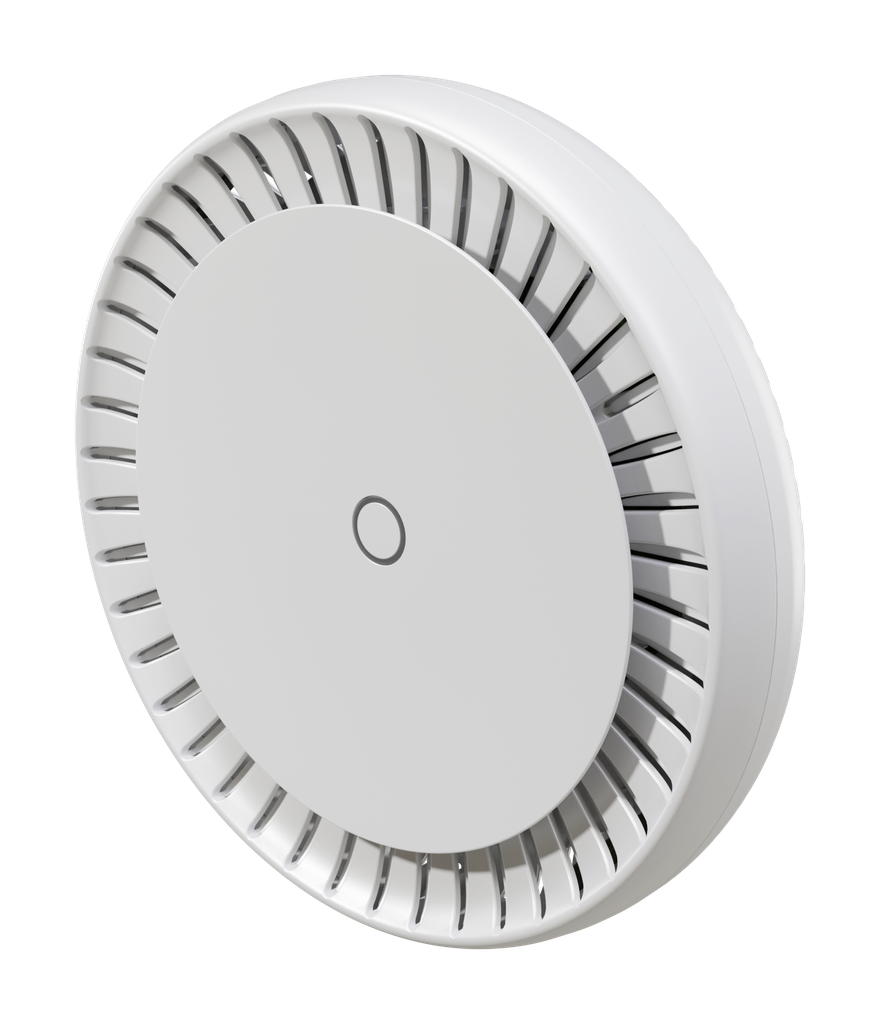

MikroTik cAP ax, WiFi 6 access point, cAPGi-5HaxD2HaxD

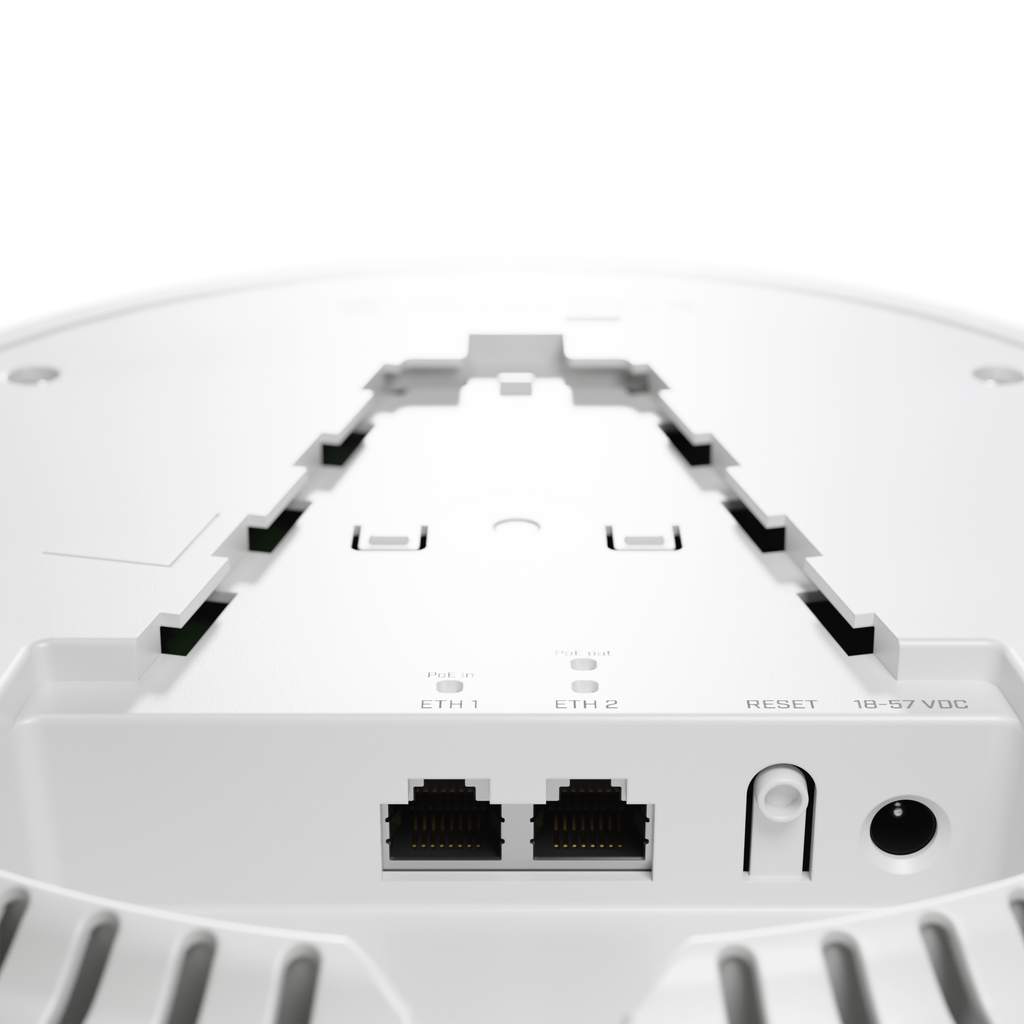

Microtik Cap AX is the Dual Band AP with the support of the latest standard WiFi 6 , which supports up to 574 Mbps (2.4 GHz) and 1200 Mbps (5 GHz). It was designed to blend in installation, ideal for restaurants, hotels, airports, shopping centers, etc. CAP AX supports the standards 802.11a/b/g/n/ac/AX and can be powered by both active and passive PoE or DC jack. The big advantage is the second Ethernet port, which also supports PoE-out, allowing the connection of another device including power.

parameters

name	value
Frequency:	2.4 + 5 GHz (Dual Band)
WiFi Standards:	802.11AX, 802.11ac, 802.11n, 802.11a, 802.11b/g
Bursing speed WiFi-2.4 GHz[MB/S]:	574
WIFI transfer speed-5 GHz[mb/s]:	1200
antenna profit[dbi]:	5,5
version:	on the wall
operating temperature[° C]:	-40 to 70
depth (mm):	228
width (mm):	228
height (mm):	48
CPU:	IPQ-6010, 1.8 GHz
Number of CPU cores:	4
RAM:	1 GB
SIZE SIZE[MB]:	128
LAN speed:	10/100/1000 Mbps
Max. Energy consumption:	9 W (without Poe-out)
Power type:	POE/DC
Power via POE:	802.3AF, 802.3at, 18 .. 57 in DC
POE types:	input and output
operating system:	ROUTEROS-L4

Package content

• device
• power adapter 48 V/0.95 and
• gigabit poe injector
• mounting set to attach to the ceiling/wall
