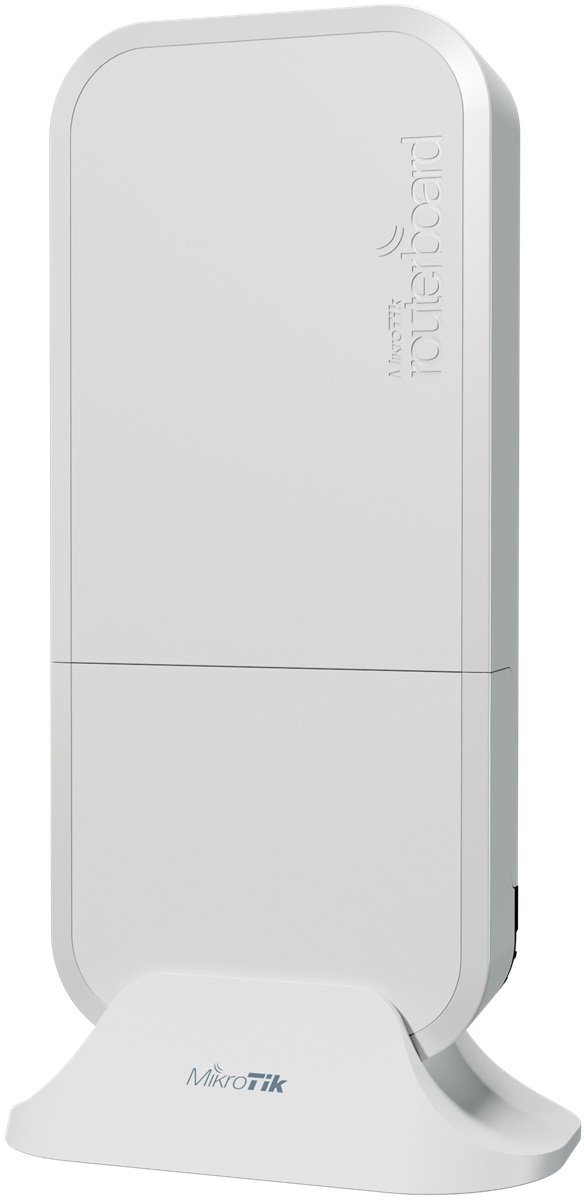

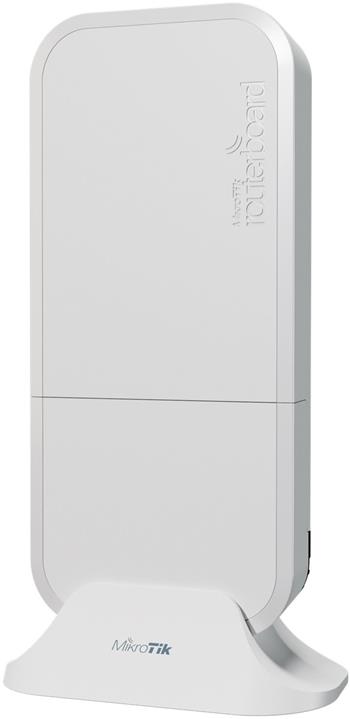

MikroTik wAPG-5HaxD2HaxD, wAP ax

The Wi-Fi 6 (802.11a/b/g/n/ac/AX) support point offers significantly faster connections and higher security. Antenna for 2.4 GHz and 5 GHz has a profit of 7 dBI. Supports 2x2 outside.More information

Producer

MikroTik

Part No.

wAPG-5HaxD2HaxD

Code

00074312

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

57.10 EUR exc. VAT

VAT

21%

Your price inc. VAT

69.09 EUR inc. VAT

Ask for a better price

Description

Compact Access Point ideal for busy public spaces and private properties. This dual-band access point with Wi-Fi 6 (802.11a/b/g/n/ac/AX) offers significantly faster connections and higher security. Antenna for 2.4 GHz and 5 GHz has a profit of 7 dBi . It supports 2x2 outside . The unit includes a dual-core ARM processor, 256 MB RAM and software routeros v7 L4 licenses. The device is equipped with two gigabit ethernet ports, one of which is Poe-in. Flexible power options include the classic DC connector (12-57 V) and Active poe (802.3af/at; 18-57 V).

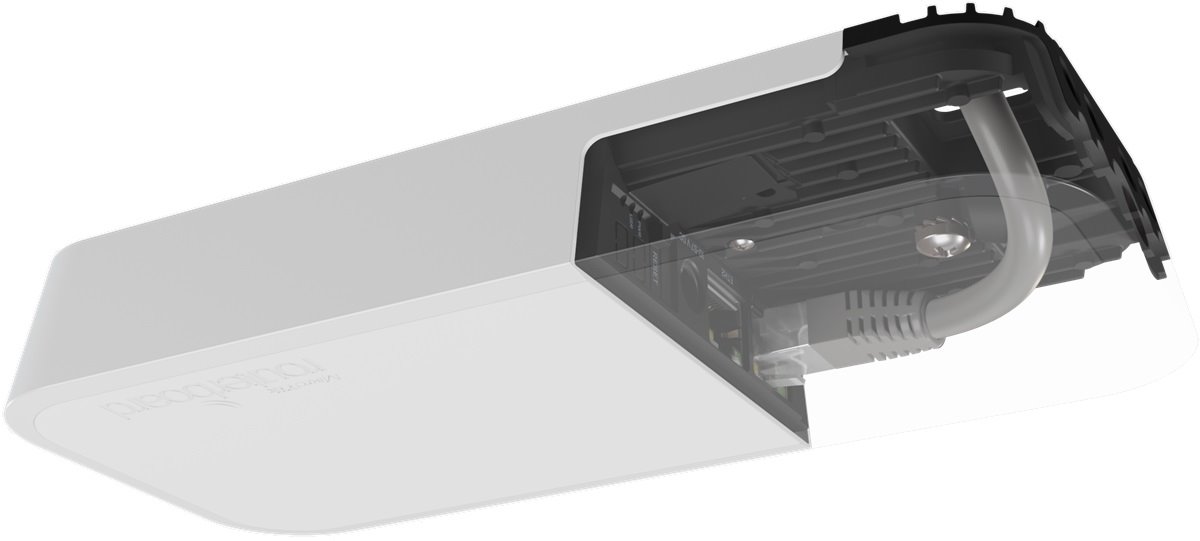

The device is resistant to weathering and can be safely attached to any wall, roof or column. There is an Ethernet cable opening in the back of the cover.

own operating system
The company has developed its own operating system based on the Linux core, known as microtik routeros . This system is still developing and supporting more and more services such as VPN, QoS, Firewall and more. For Windows, there is WinBox, which provides a graphical user interface for configuration and monitoring. You can also use the FTP, Telnet or SSH (Secure Shell) access to set up.

Package content

device

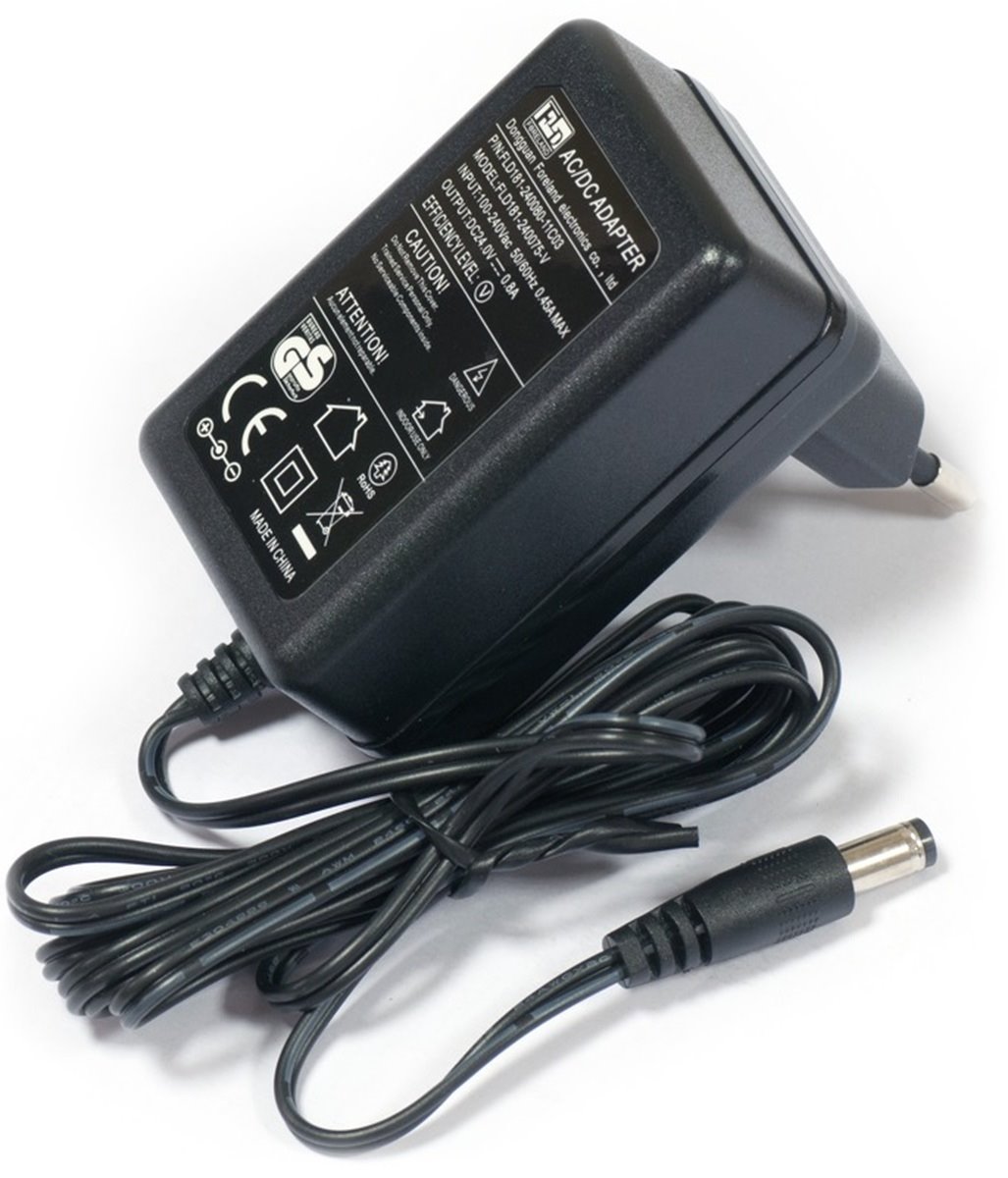

power adapter 24 V/0.8 and

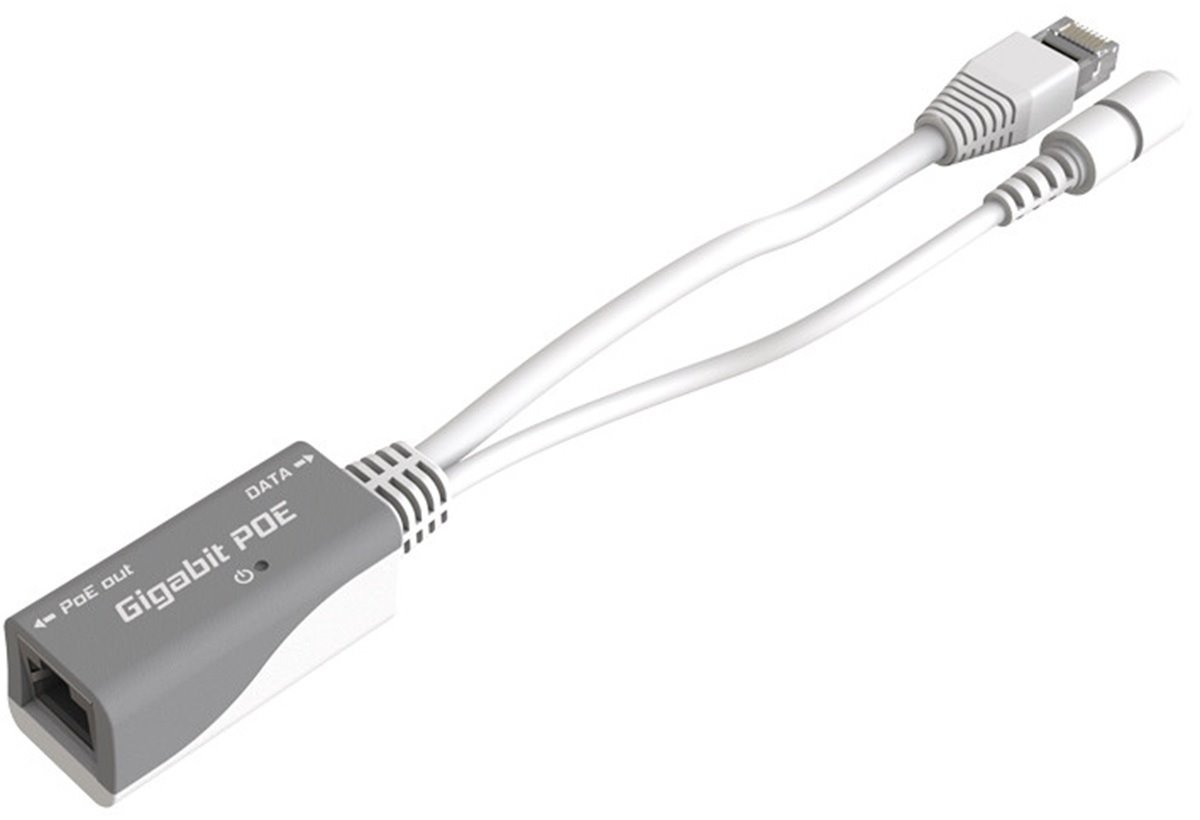

Gigabit Poe Injector
stand

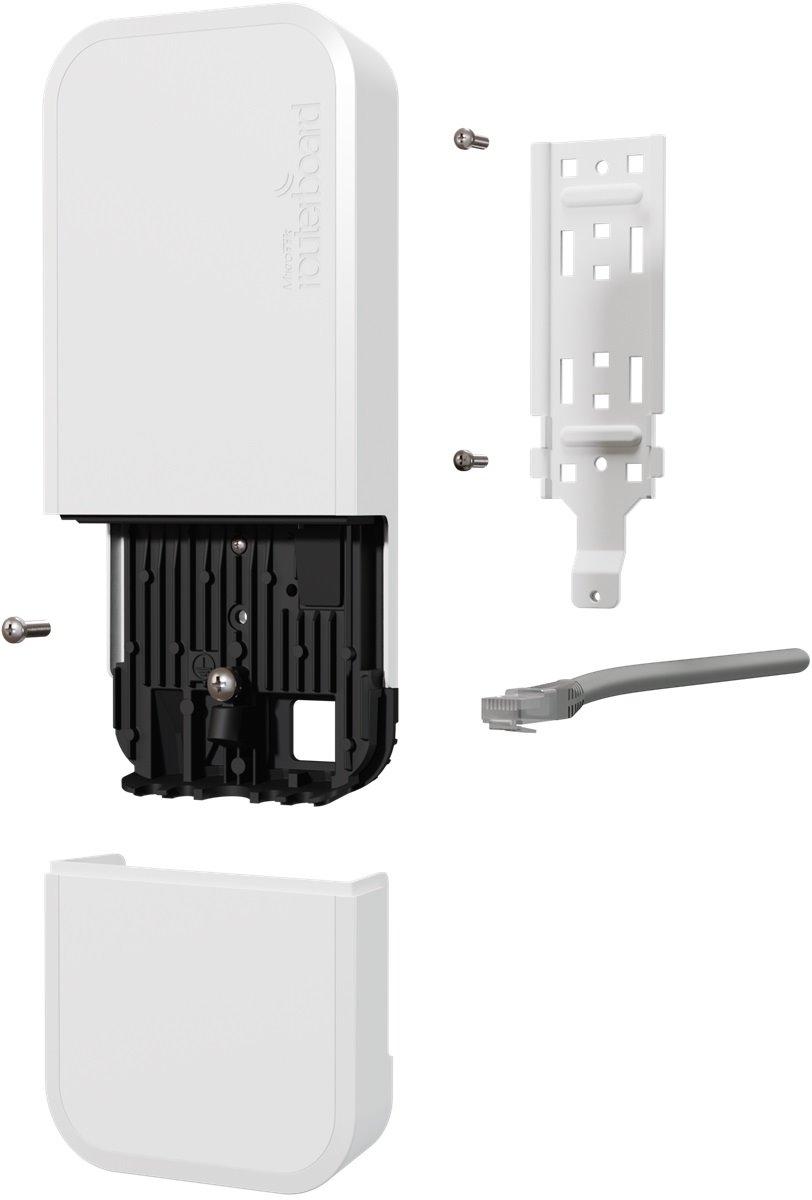

mounting set
Fastening buckle

Parameters

Ethernet parameters
Antenna gain (dBi)	7
Beam angle horizontal (°)	60
Beam angle vertical (°)	60
Consumption	9
Encryption	WPA, WPA2, WPA3
Gigabit LAN	yes
IPv6 support	Yes
Management	Yes
Max. počet klientů	8
Network interface (Mbps)	10/100/1000
Operating systém	MikroTik RouterOS - L4
Operating Temperature	-40° až +70°C
Počet vestavěných antén	1
PoE Type	Input
Properties	Full Duplex
RAM	256 MB
LAN port speed	1 Gbps
Number od RJ45 ports	1
Number of SFP (1G) ports	0
Physical parameters
Depth (mm)	30
Design	Outdoor, Na zeď, Na stožár
Height (mm)	185
Weight (kg)	0.8
Width (mm)	85
PoE parameters
PoE standard	802.3at, 802.3af
Powering
Počet PoE In portů	1
Počet PoE Out portů	0
Power Supply	PoE, DC
Wireless parameters
Antenna type	Omnidirectional, Vestavěná
Frequency	2,4 GHz + 5 GHz
MIMO (2,4 GHz)	2x2
MIMO (5 GHz)	2x2
Operating mode	AP, Point-to-point
WiFi Standards	WiFi 6 (802.11ax)
WIFI transfer rate - 2.4 GHz [Mbps]	574
WiFi transfer rate - 5 GHz [Mbps]:	2402
