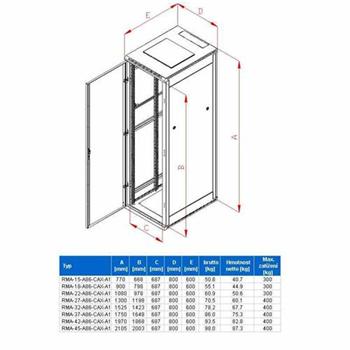

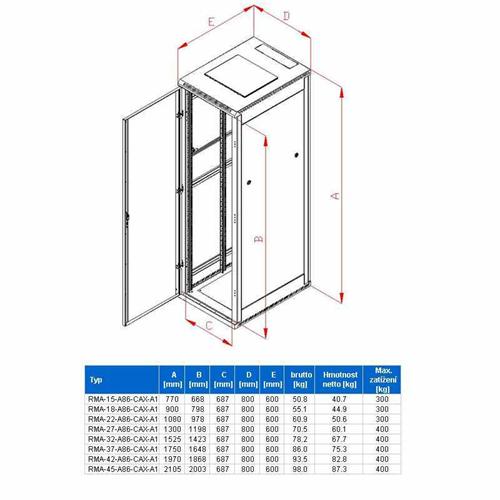

RACK Triton, 19", 45U, 800x600mm, stand-RMA-45-A86-CAX-A1

The hinge system itself allows the door to open at an angle of almost 180 °. The door can be easily removed and rebuilt to open to the opposite side.
19 “Vertical moldings can be smoothly set at any depth of the switchboard. This facilitates the installation of equipment and organization of connecting cables.
RMA is a switchboard with welded skeleton and removable sidewalls. Like the back cover of the skeleton, these locks are fitted with a single key as standard.

parameters:

name	value
Type:	Stand
pitch:	19"
Covering:	IP 20
doors:	glazed
sidewall:	Removable
height:	45U
width (mm):	800
depth (mm):	600
height (mm):	2105
Color:	gray
Weight (g):	87 300
Max. Load (G):	400 000
Material:	Safety hardened glass thickness. 4 mm, steel sheet

Package content:

key-removable covers 2x

key-front door 2x

M6 16x

Anti-draft plug 1x

rectification bolt/foot for switchboard 4x

matrix M10 4x
