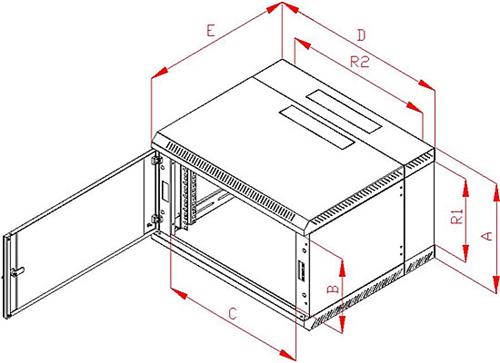

RACK Triton, 19", 4U, 600x500mm, wall-mounted-RBA-04-AD5-CAX-A1

The switchboard doors are all-glass standard, but can also be nationwide or with perforation on request.
The hinge system itself allows the door to open at an angle of almost 180 °. The door can be easily removed.
Opensable parts of the switchboard allow easy access to the rear of the switchboard.
After unlocking the connecting locks, you can easily open the front of the switchboard.

parameters:

name	value
Type:	Wall-mounted, two-piece
pitch:	19"
Covering:	IP 30
doors:	glazed
height:	4U
width (mm):	600
depth (mm):	495
height (mm):	280
Color:	gray
Weight (g):	15 900
Max. clearance (g):	20 000
Material:	Safety hardened glass thickness. 5 mm, steel sheet

Package content:

key-front door 2x

screw 6x50 4x

pad 6.6 4x

dowel 10 4x

Floating nuts M6 8x

Anti-draft plug 1x
