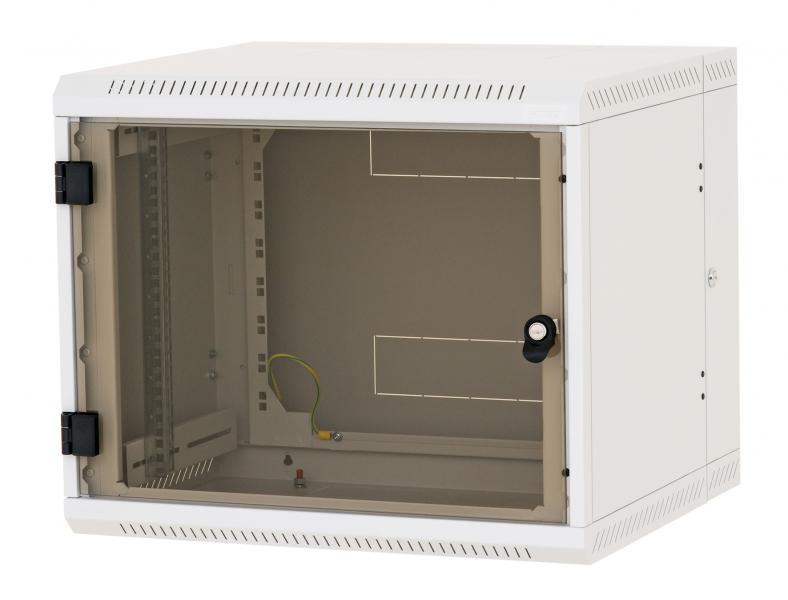

Rack Triton 19" two-part 18U/600mm, internal

Fully welded wall switchboard is designed for data and telecommunications installations.

The switchboard doors are all-glass standard, but on request can be nationwide or with perforation.
The hinge system itself allows the door to open at an angle of almost 180 °. Doors can be easily removed.
Opensable parts of the switchboard allow easy access to the rear of the switchboard.
After unlocking the connecting locks, you can easily open the front of the switchboard.

parameters:

name	value
Type:	Wall-mounted, two-piece
pitch:	19"
Covering:	IP 30
doors:	glazed
height:	18U
width (mm):	600
depth (mm):	600
Color:	gray
Weight (g):	35 400
Max. Load (G):	30 000
Material:	Safety hardened glass thickness. 5 mm, steel sheet

Package content:

key-front door 2x

screw 6x50 4x

pad 6.6 4x

dowel 10 4x

Floating nuts M6 8x

Anti-draft plug 1x

Material: Safety hardened glass thickness. 5 mm Steel sheet
