Surge protection PROCET PT-PR01B-10G, 10G Ethernet, PoE up to 100W

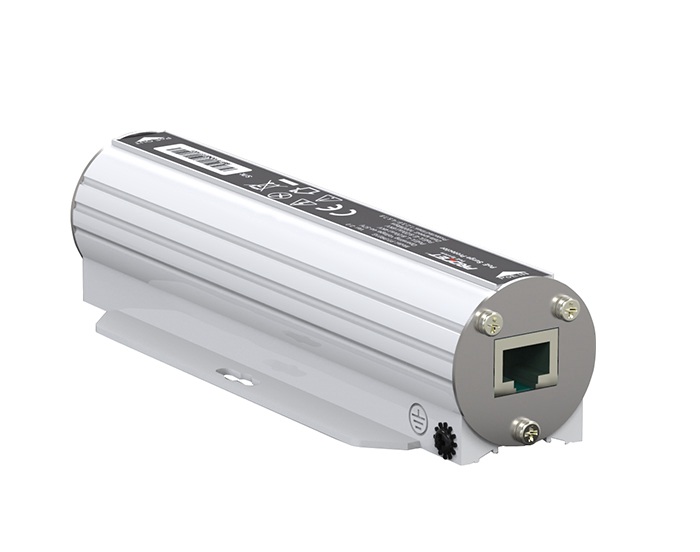

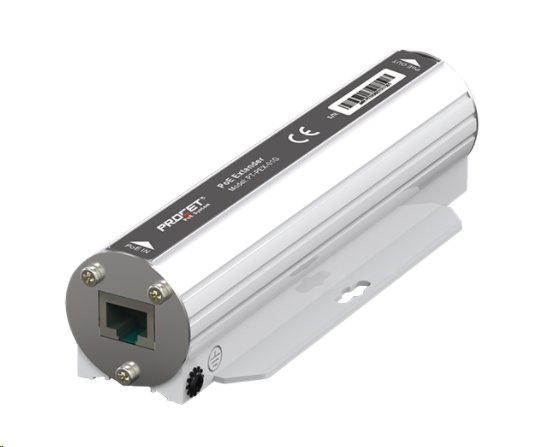

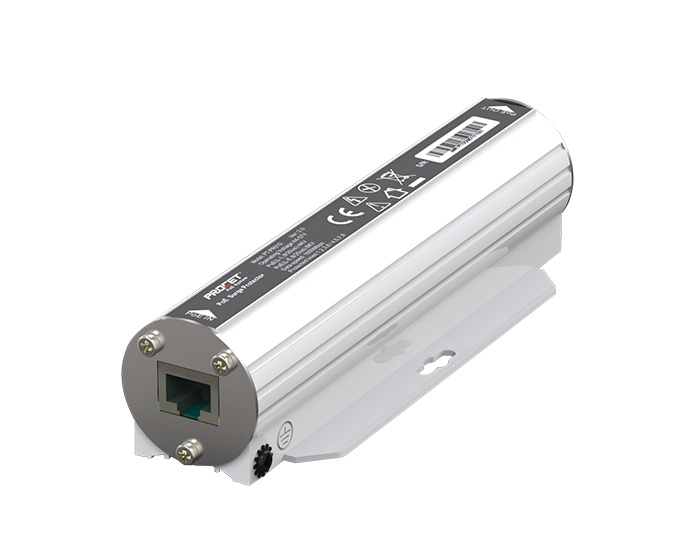

PROCET PT-PR01B-10G is a single-port surge high quality protector designed for complex protection of connected devices. Its deployment is especially suitable for backbone connections - thanks to the support of 10G Ethernet , pass-through PoE power supply up to 100 W (44 - 57 VDC) and a robust design with aluminum alloy housing and egress protection IP40. Protects against overvoltages up to 10 kV on all 4 pairs simultaneously, or 20 kA peak surge current after each of the Ethernet pairs - all thanks to four-level SPD technology.

It supports not only data rates of 10/100/1000 Mbps, but also the new standards 2.5 / 5 / 10GBase-T. The PT-PR01G-DIN operates from -40°C to +85°C.

  PoE protection:



• Max Discharge Current: 20 kA (8/20us, 2.5 kA per line)
• Protected Line: 1,2,3,4,5,6,7,8
• Common Mode Protection Level (10/700us): 10 kV
• Differential Mode Protection Level (10/700us): 6 kV
• Insertion Loss @10MHz/100MHz -1 dB
• Return Loss @10MHz/100MHz: -20 dB
• Response Time: 5ns



• Ethernet standard: 10/100/1000 Mbps & 2.5/5/10GbE
• PoE standard: 4/5 (+), 7/8 (–) and 3/6(+), 1/2(-), 44-60 VDC, 100 W
• Connectors: Shielded RJ-45
• Temperature range: -40°C to +85°C
• Dimensions: 156 x 53 x 38 mm
• Weight: 240 g
